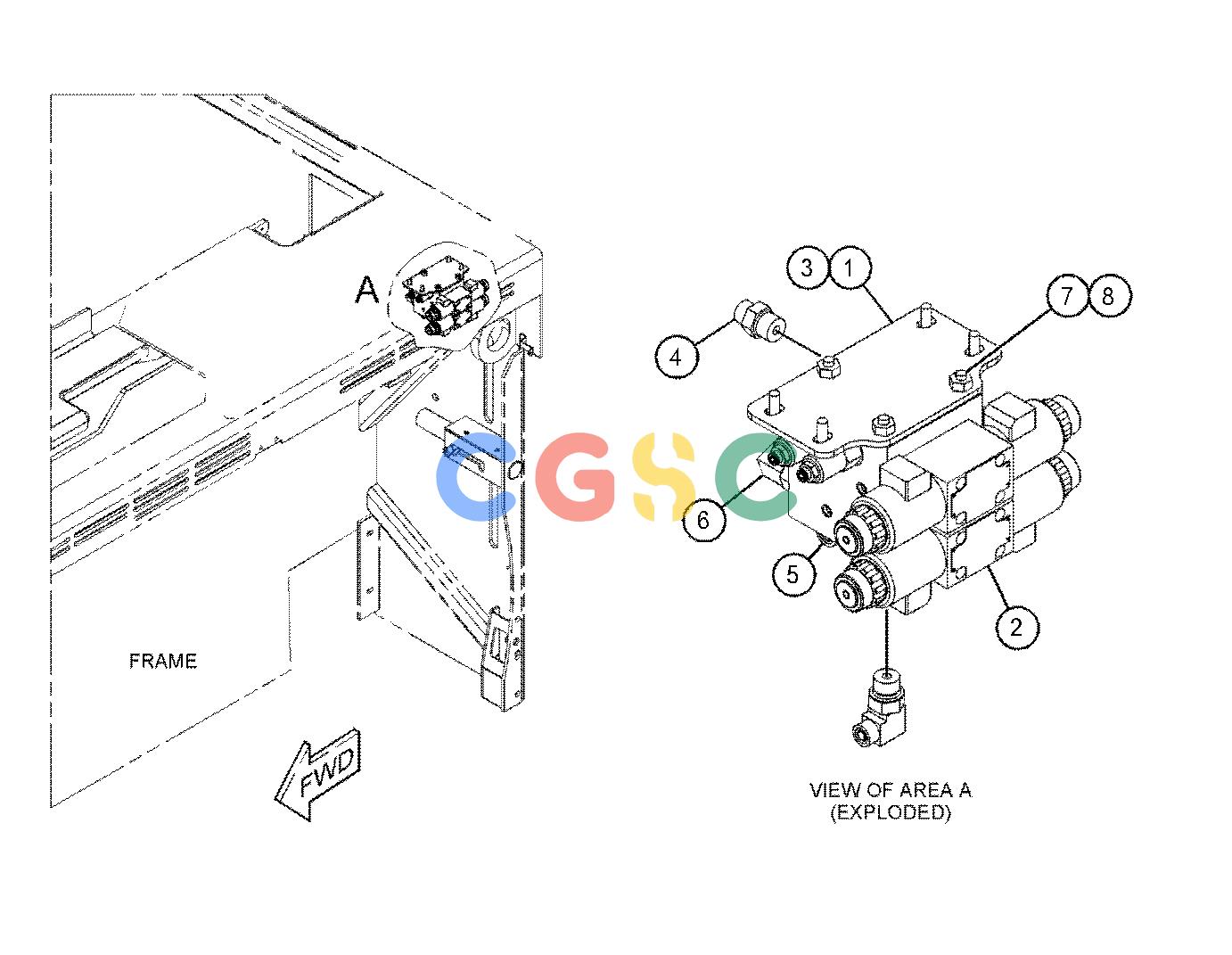

卡特零件查询（AP600F） 433-6622: VALVE & MOUNTING GP
广数供应链运营团队, 17 02月, 2025，浏览：
168 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 448-4319 | [1] | PLATE AS | |
| | 159-9540M | [3] | NUT-WELD(M8X1.25-THD) | |
| 2. | 452-5947 | [1] | VALVE GP-SOLENOID(AUXILIARY, MAIN) | |
| 3. | 127-2170M | [4] | SCREW-TRUSS HEAD(M8X1.25X20-MM) | |
| 4. | 148-8318 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8634 | [1] | CONNECTOR | |
| 5. | 148-8365 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 8T-6876 | [1] | ELBOW | |
| 6. | 148-8374 | [3] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8723 | [1] | ELBOW | |
| 7. | 7X-0457M | [3] | BOLT(M8X1.25X130-MM) | |
| 8. | 8T-4224 | [3] | WASHER-HARD(8.8X16X2-MM THK) | |
| | M | | METRIC PART |
