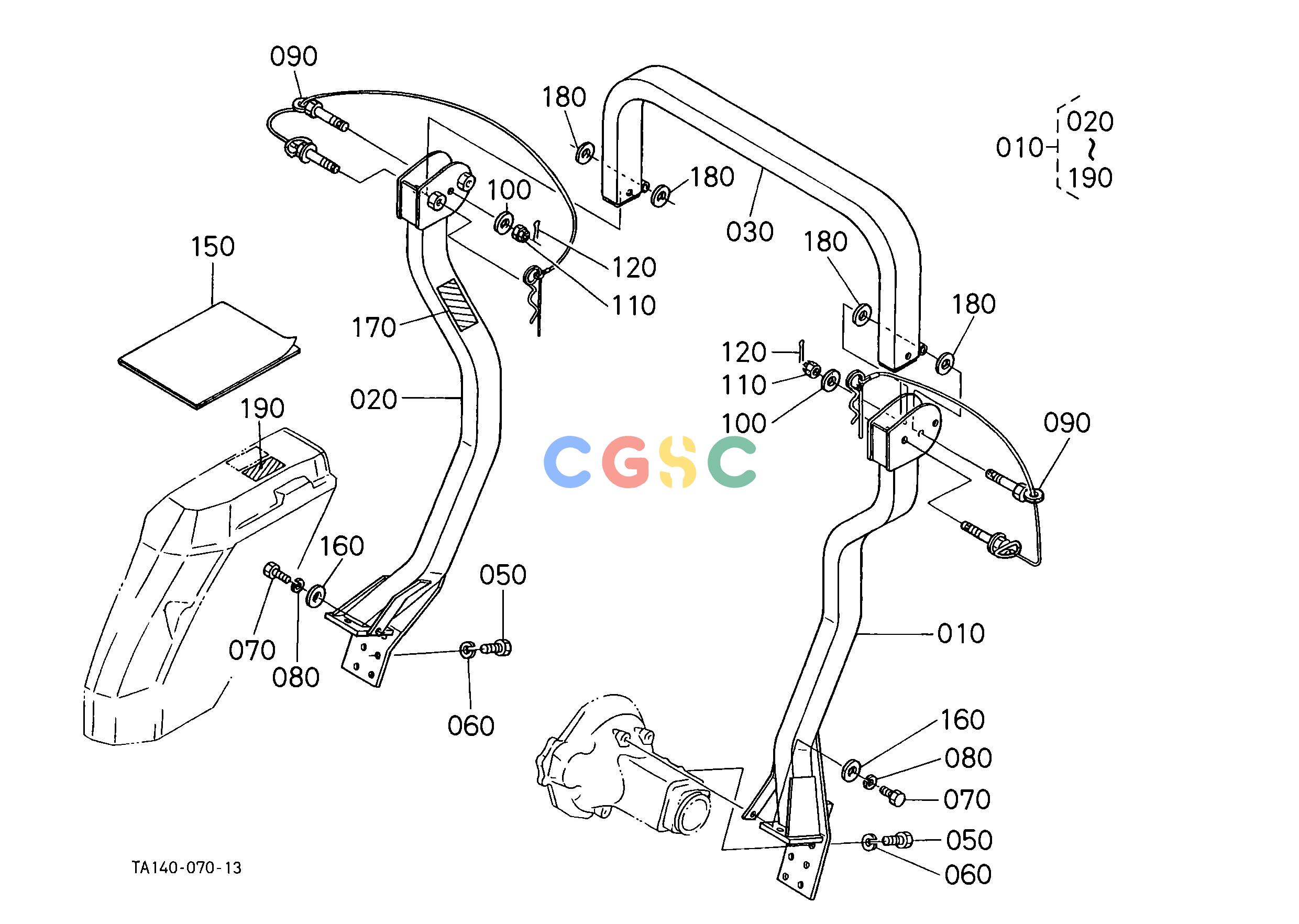

久保田零件查询T16000 ROPS [ROPS TYPE] [OPTION] [OLD TYPE] ## S.No.<=72536 [OPTION][TYPE VIEUX] OPTIONEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
731 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TA24048012
|
[1] |
ASSY ROPS
|
0.0000(lbs); 0.000
|
| 020. |
9999999999
|
[1] |
COMP.FRAME LH
|
0.0000(lbs); 0.000
|
| 030. |
9999999999
|
[1] |
COMP.FRAME RH
|
0.0000(lbs); 0.000
|
| 040. |
9999999999
|
[1] |
COMP UPPER FRAME
|
0.0000(lbs); 0.000
|
| 050. |
0117651430
|
[12] |
BOLT
|
0.1144(lbs); 0.052
|
| 060. |
7559933016
|
[12] |
WASHER SPRING
|
0.1760(lbs); 0.080
|
| 070. |
0117351230
|
[2] |
BOLT
|
0.0814(lbs); 0.037
|
| 080. |
0451260120
|
[2] |
WASHER SPRING
|
0.0110(lbs); 0.005
|
| 090. |
TA24048464
|
[2] |
ASSY BOLT SET
|
0.0000(lbs); 0.000
|
| 100. |
0401360160
|
[2] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 110. |
TA24048362
|
[2] |
NUT
|
0.0000(lbs); 0.000
|
| 120. |
7559953194
|
[2] |
PIN COTTER
|
0.0022(lbs); 0.001
|
| 150. |
TA24048495
|
[1] |
MANUAL INSTRUCTION
|
0.0000(lbs); 0.000
|
| 160. |
7559932015
|
[2] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 170. |
3A11195540
|
[1] |
LABEL ROPS CAUTION
|
0.0066(lbs); 0.003
|
| 180. |
7559932017
|
[4] |
WASHER PLAIN
|
0.0308(lbs); 0.014
|
| 190. |
TA24098480
|
[1] |
LABEL ROPS WARNING
|
0.0110(lbs); 0.005
|
