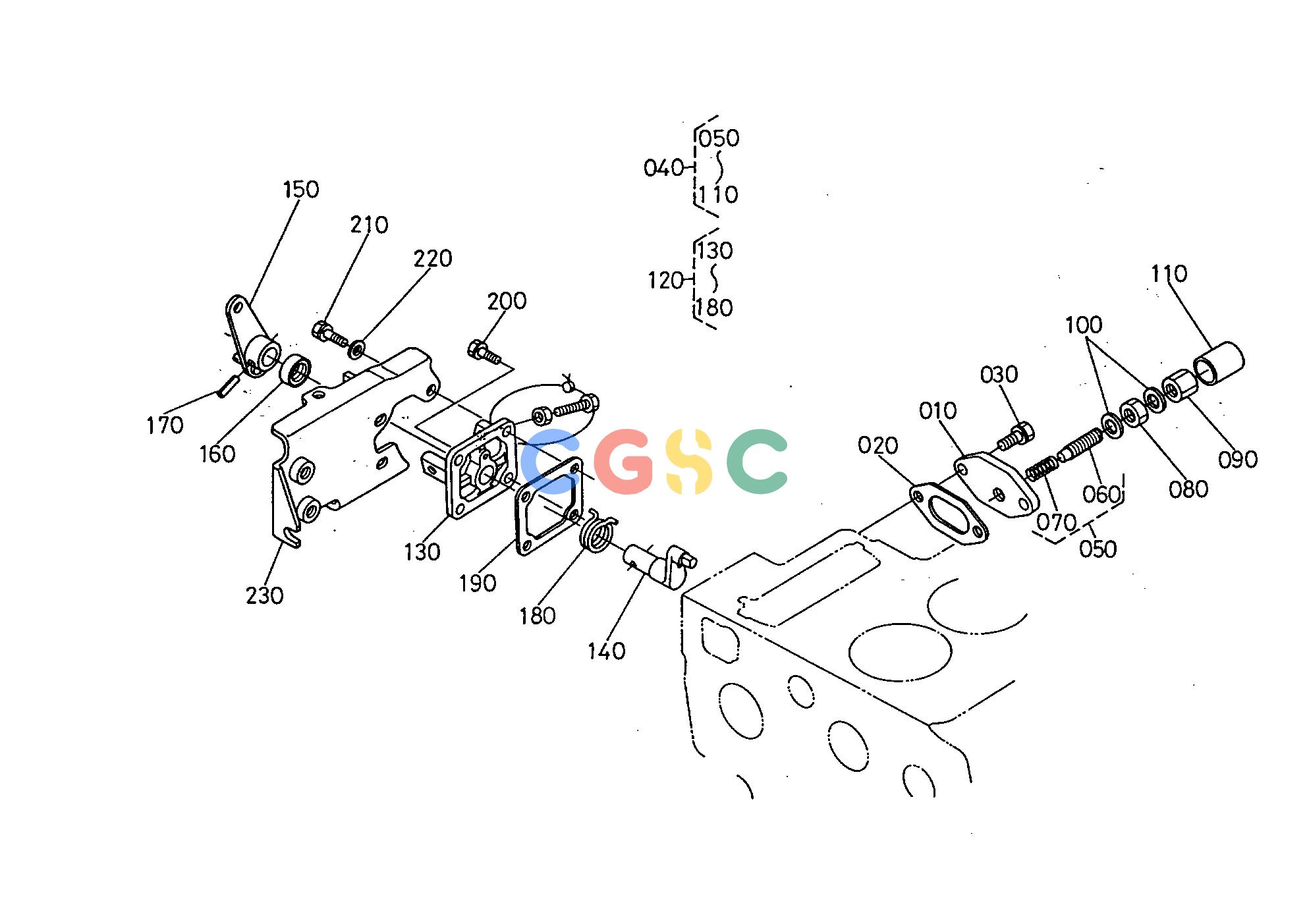

久保田零件查询E01900 IDLING APPARATUS ENGINEEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
1015 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1540101930
|
[1] |
COVER
|
0.1980(lbs); 0.090
|
| 020. |
1522105430
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 030. |
0102350616
|
[2] |
BOLT
|
0.0132(lbs); 0.006
|
| 040. |
1560154090
|
[1] |
APPARATUS IDLING
|
0.0880(lbs); 0.040
|
| 050. |
1560154100
|
[1] |
ASSY BOLT ADJUSTING
|
0.0220(lbs); 0.010
|
| 060. |
1540154250
|
[1] |
BOLT ADJUSTING
|
0.0220(lbs); 0.010
|
| 070. |
1560154260
|
[1] |
SPRING
|
0.0044(lbs); 0.002
|
| 080. |
1540192010
|
[1] |
NUT
|
0.0220(lbs); 0.010
|
| 090. |
1540192330
|
[1] |
NUT CAP
|
0.0220(lbs); 0.010
|
| 100. |
1502133660
|
[2] |
GASKET
|
0.0022(lbs); 0.001
|
| 110. |
1540154270
|
[1] |
CAP
|
0.0088(lbs); 0.004
|
| 120. |
1733157700
|
[1] |
ASSY LVR.ENGINE STOP
|
0.0000(lbs); 0.000
|
| 130. |
1547151650
|
[1] |
COVER INJECTION PUMP
|
0.0000(lbs); 0.000
|
| 140. |
1733157740
|
[1] |
SHAFT LEVER
|
0.0880(lbs); 0.040
|
| 150. |
1733157720
|
[1] |
LEVER ENGINE STOP
|
0.1100(lbs); 0.050
|
| 160. |
1547157980
|
[1] |
SEAL OIL
|
0.0022(lbs); 0.001
|
| 170. |
0541100420
|
[1] |
PIN SPRING
|
0.0022(lbs); 0.001
|
| 180. |
1547157920
|
[1] |
SPRING RETURN
|
0.0110(lbs); 0.005
|
| 190. |
1522151660
|
[1] |
GASKET PUMP COVER
|
0.0000(lbs); 0.000
|
| 200. |
0102350618
|
[1] |
BOLT
|
0.0132(lbs); 0.006
|
| 210. |
0102350622
|
[3] |
BOLT
|
0.0110(lbs); 0.005
|
| 220. |
0401250060
|
[3] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 230. |
1547160110
|
[1] |
SUPPORT SOLENOID
|
0.6490(lbs); 0.295
|
