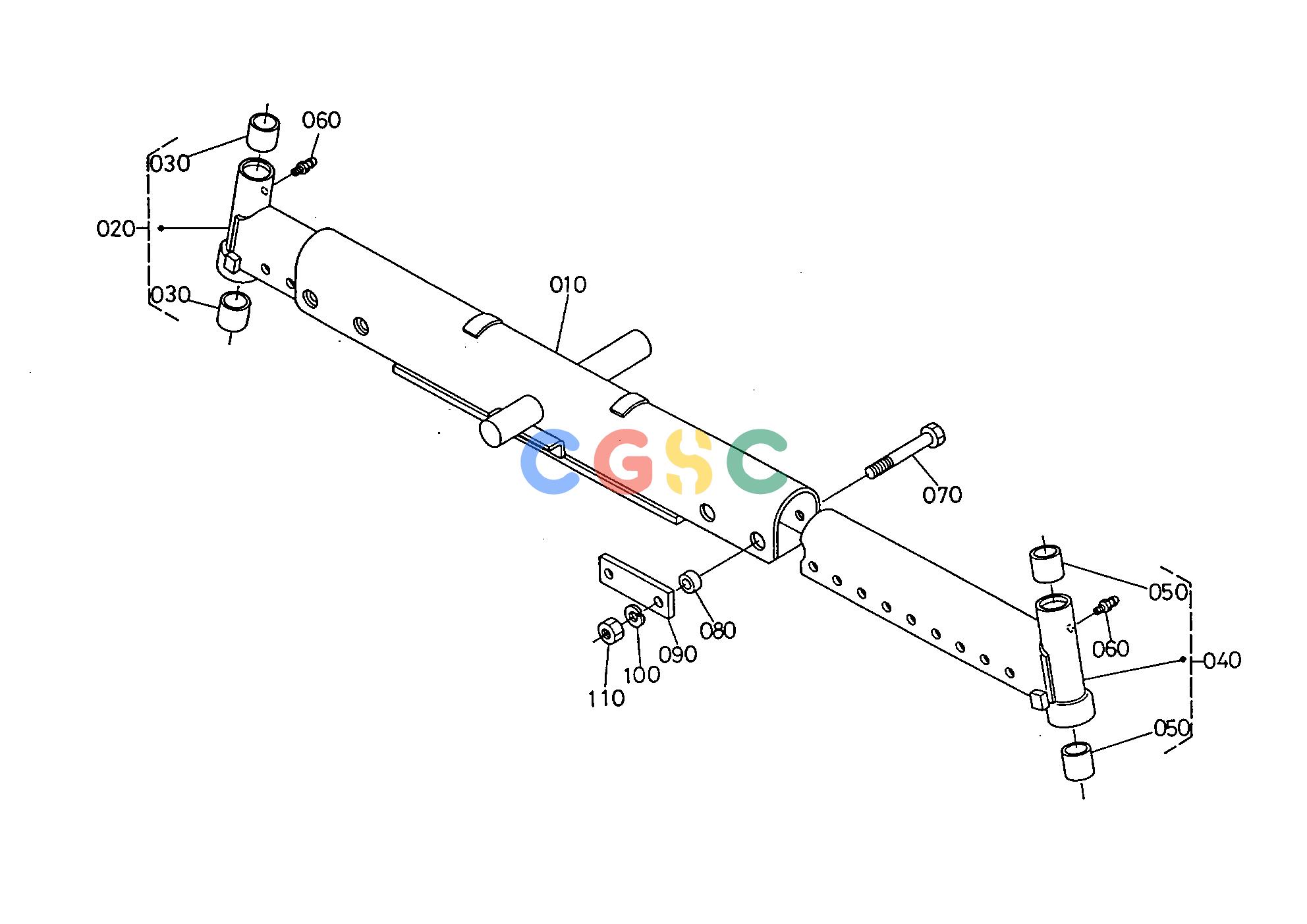

久保田零件查询T00400 FRONT AXLE FRONT AXLEEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
700 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3253013110
|
[1] |
AXLE FRONT MIDDLE
|
52.8000(lbs); 24.000
|
| 020. |
3252013120
|
[1] |
ASSY AXLE FRONT RH
|
21.5600(lbs); 9.800
|
| 030. |
3253013140
|
[2] |
BUSH
|
0.2200(lbs); 0.100
|
| 040. |
3252013150
|
[1] |
ASSY AXLE FRONT LH
|
21.5600(lbs); 9.800
|
| 050. |
3253013140
|
[2] |
BUSH
|
0.2200(lbs); 0.100
|
| 060. |
0661310010
|
[2] |
NIPPLE GREASE
|
0.0132(lbs); 0.006
|
| 070. |
0117351604
|
[4] |
BOLT
|
0.4290(lbs); 0.195
|
| 080. |
3438063770
|
[4] |
SPACER
|
0.0726(lbs); 0.033
|
| 090. |
3253013170
|
[2] |
PLATE
|
0.8360(lbs); 0.380
|
| 100. |
0451250160
|
[4] |
WASHER SPRING
|
0.0220(lbs); 0.010
|
| 110. |
0217650160
|
[4] |
NUT
|
0.0462(lbs); 0.021
|
