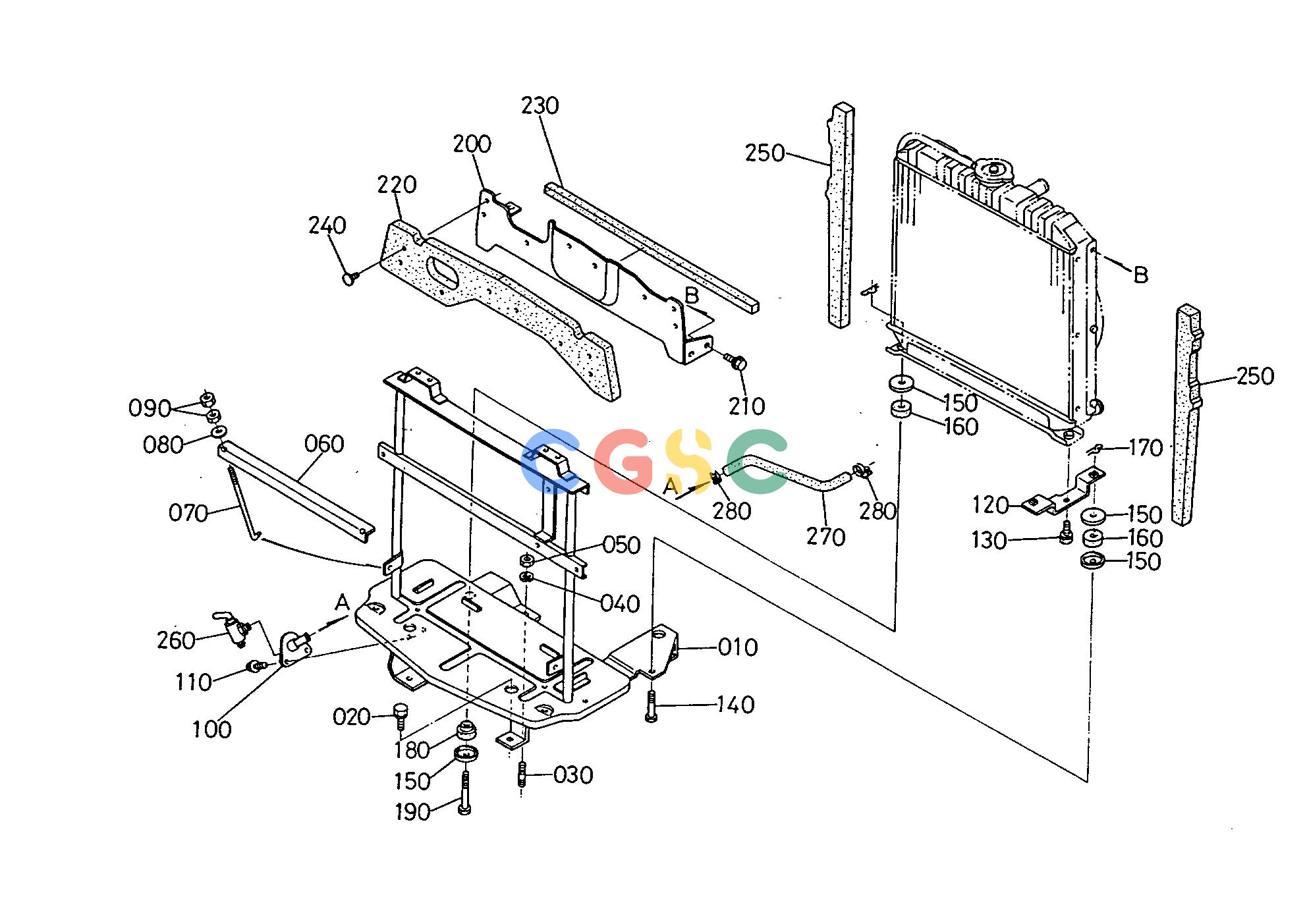

久保田零件查询T00500 BATTERY SUPPORT ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
772 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3253033210
|
[1] |
SUPPORT BATTERY
|
0.0000(lbs); 0.000
|
| 020. |
0113351022
|
[3] |
BOLT
|
0.0550(lbs); 0.025
|
| 030. |
0151751022
|
[1] |
STUD
|
0.0440(lbs); 0.020
|
| 040. |
0451250100
|
[1] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 050. |
0217650100
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 060. |
3235033270
|
[1] |
RETAINER BATTERY
|
0.7700(lbs); 0.350
|
| 070. |
3843033290
|
[2] |
BOLT HOOK
|
0.0110(lbs); 0.005
|
| 080. |
0401550060
|
[2] |
WASHER PLAIN
|
0.0132(lbs); 0.006
|
| 090. |
0201450060
|
[4] |
NUT
|
0.0044(lbs); 0.002
|
| 100. |
3253033250
|
[1] |
BASE RADIATOR COCK
|
0.2970(lbs); 0.135
|
| 110. |
0175450816
|
[2] |
BOLT FLANGE
|
0.0242(lbs); 0.011
|
| 120. |
3253013750
|
[1] |
SUPPORT RADIATOR
|
0.0000(lbs); 0.000
|
| 130. |
0113351020
|
[1] |
BOLT
|
0.0440(lbs); 0.020
|
| 140. |
6671151340
|
[2] |
BOLT
|
0.0704(lbs); 0.032
|
| 150. |
1511172200
|
[6] |
WASHER
|
0.0286(lbs); 0.013
|
| 160. |
1511172180
|
[3] |
CUSHION
|
0.0330(lbs); 0.015
|
| 170. |
0551551000
|
[3] |
PIN SNAP
|
0.0044(lbs); 0.002
|
| 180. |
1511172190
|
[1] |
CUSHION
|
0.0352(lbs); 0.016
|
| 190. |
1510872380
|
[1] |
BOLT
|
0.0880(lbs); 0.040
|
| 200. |
3253017810
|
[1] |
SUPPORT CUSHION
|
0.0000(lbs); 0.000
|
| 210. |
0175450610
|
[2] |
BOLT FLANGE
|
0.0132(lbs); 0.006
|
| 220. |
3253017820
|
[1] |
CUSHION
|
0.2860(lbs); 0.130
|
| 220. |
H325017820
|
[1] |
CUSHION
|
0.2860(lbs); 0.130
|
| 230. |
3253018750
|
[1] |
CUSHION BONNET
|
0.0440(lbs); 0.020
|
| 240. |
3253017830
|
[8] |
STOPPER
|
0.0044(lbs); 0.002
|
| 250. |
3253017840
|
[2] |
CUSHION
|
0.0000(lbs); 0.000
|
| 260. |
1557573100
|
[1] |
COCK DRAIN
|
0.1430(lbs); 0.065
|
| 270. |
3253013510
|
[1] |
PIPE DRAIN
|
0.1760(lbs); 0.080
|
| 280. |
6817163630
|
[2] |
BAND HOSE
|
0.0286(lbs); 0.013
|
