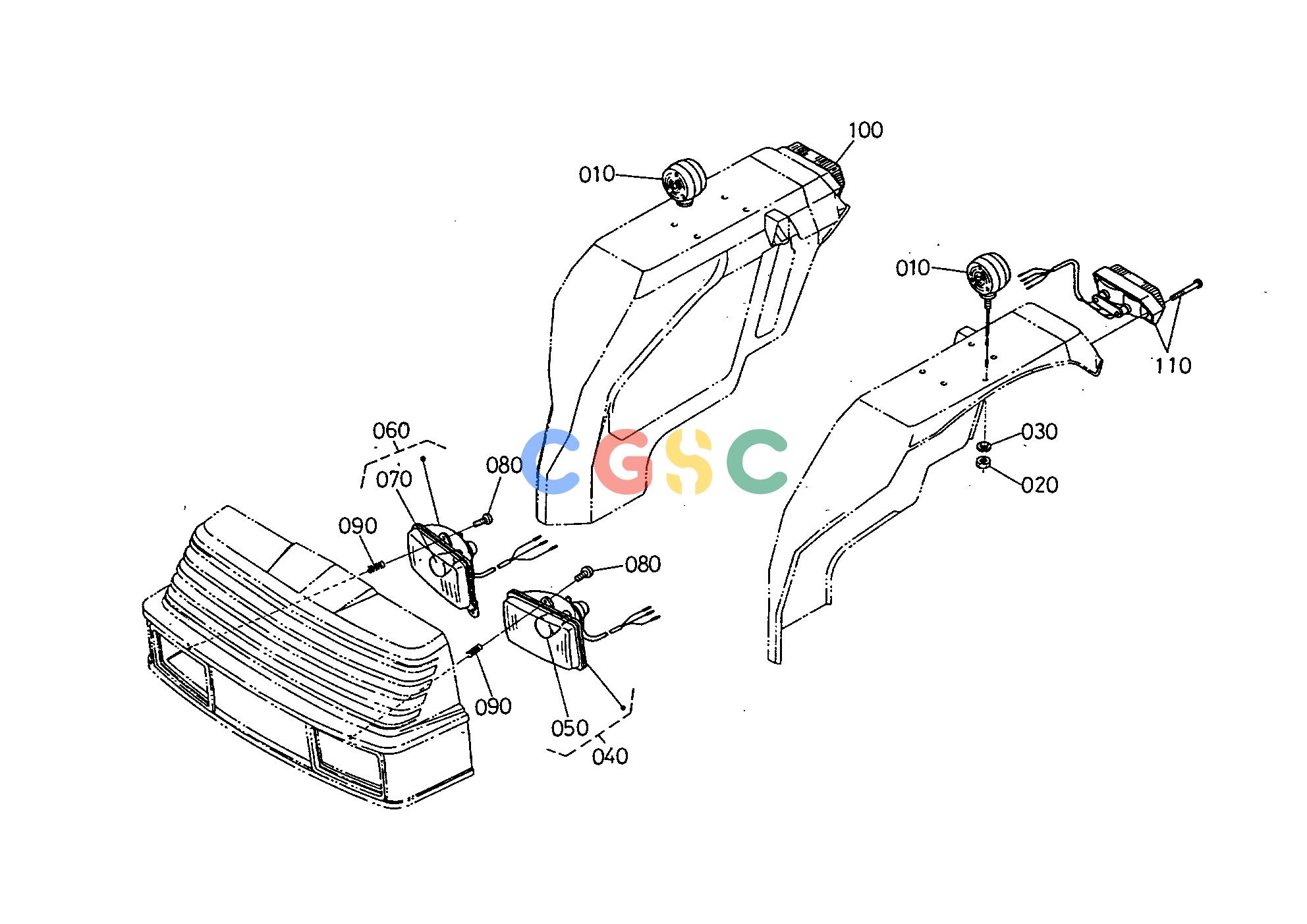

久保田零件查询T06000 LIGHT ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
136 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3253033610
|
[2] |
ASSY LIGHT HAZARD
|
0.8360(lbs); 0.380
|
| 020. |
0211450100
|
[2] |
NUT
|
0.0110(lbs); 0.005
|
| 030. |
0451250100
|
[2] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 040. |
3253033800
|
[1] |
LIGHT HEAD LH
|
1.1000(lbs); 0.500
|
| 050. |
3845033870
|
[1] |
BULB LIGHT
|
0.0550(lbs); 0.025
|
| 060. |
3253033850
|
[1] |
LIGHT HEAD RH
|
1.1000(lbs); 0.500
|
| 070. |
3845033870
|
[1] |
BULB LIGHT
|
0.0550(lbs); 0.025
|
| 080. |
0305450520
|
[6] |
SCREW
|
0.0110(lbs); 0.005
|
| 090. |
3824033860
|
[6] |
SPRING LIGHT
|
0.0022(lbs); 0.001
|
| 100. |
3253033620
|
[1] |
LIGHT REAR COMBI.RH
|
1.4036(lbs); 0.638
|
| 110. |
3253033630
|
[1] |
LIGHT REAR COMBI.LH
|
0.8800(lbs); 0.400
|
