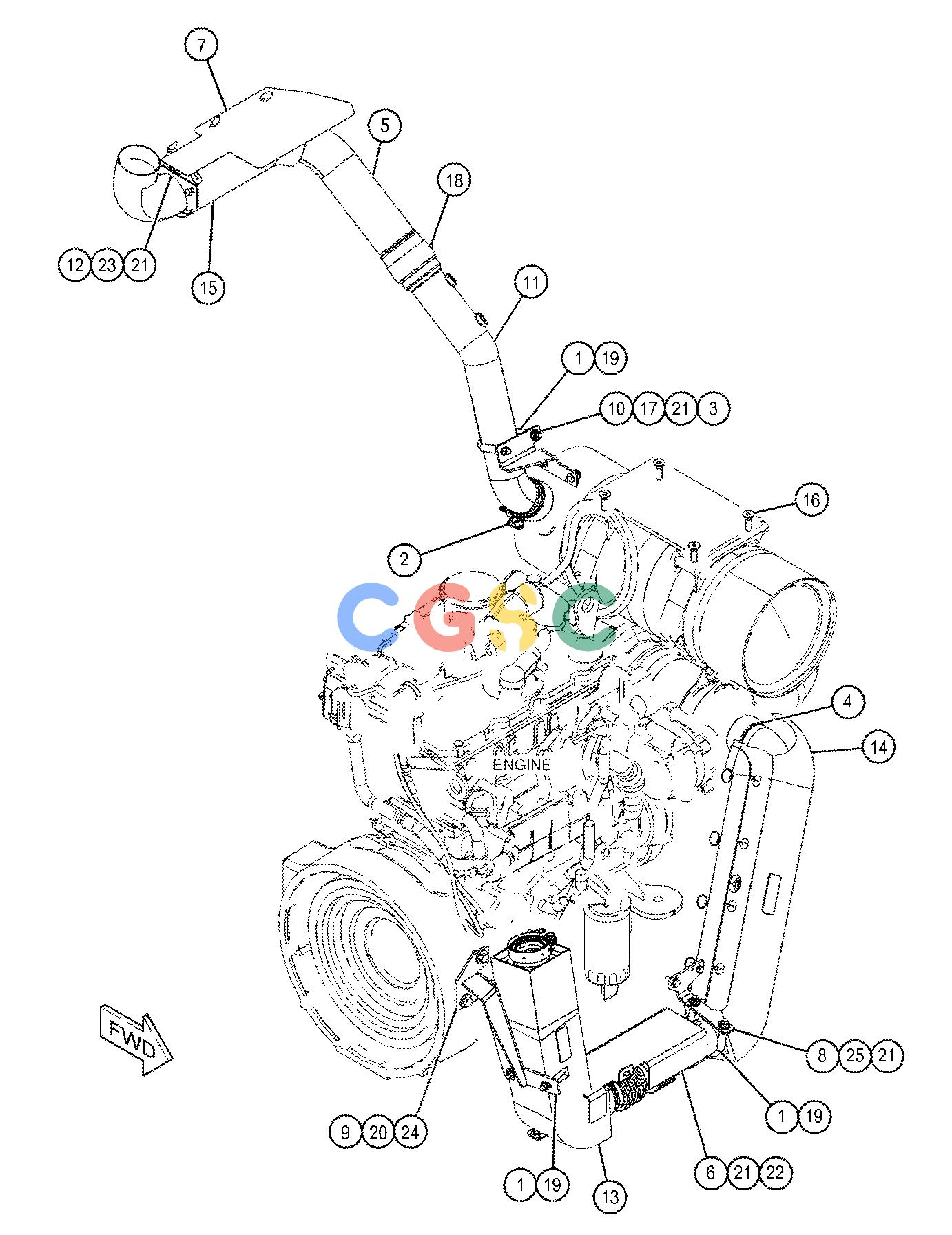

卡特零件查询（AP600F） 424-9169: LINES GP-EXHAUST
广数供应链运营团队, 17 02月, 2025，浏览：
521 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 9Y-0176 | [3] | CLAMP AS | |
| 2. | 337-7304 | [1] | CLAMP-BAND | |
| 3. | 8T-7547M | [2] | BOLT(M8X1.25X30-MM) | |
| 4. | 418-3226Y | [1] | EXHAUST GP | |
| 5. | 441-0569 | [1] | TUBE-EXHAUST | |
| 6. | 441-0570 | [1] | SHIELD | |
| 7. | 442-0617 | [1] | INSULATION | |
| 8. | 442-7844 | [1] | BRACKET | |
| 9. | 475-5228 | [1] | BRACKET AS | |
| 10. | 442-7846 | [1] | BRACKET | |
| 11. | 442-7847 | [1] | TUBE AS | |
| 12. | 444-5233 | [1] | PLATE AS | |
| | 8T-3612M | [3] | NUT-WELD(M8X1.25-THD) | |
| 13. | 451-3716 | [1] | INSULATION | |
| 14. | 451-3717 | [1] | INSULATION | |
| 15. | 463-4117 | [1] | INSULATION | |
| 16. | 145-1893M | [4] | SCREW(M12X1.75X40-MM) | |
| 17. | 344-5674M | [2] | NUT(M8X1.25-THD) | |
| 18. | 388-7010 | [1] | CLAMP-BENT BOLT | |
| 19. | 5P-1075 | [6] | WASHER-HARD(10.2X22.5X3-MM THK) | |
| 20. | 5P-1076 | [2] | WASHER-HARD(13.5X30X4-MM THK) | |
| 21. | 5P-4116 | [12] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 22. | 7X-2536M | [3] | BOLT(M8X1.25X14-MM) | |
| 23. | 8T-4189M | [3] | BOLT(M8X1.25X20-MM) | |
| 24. | 8T-4192M | [2] | BOLT(M12X1.75X25-MM) | |
| 25. | 8T-4908M | [2] | BOLT(M8X1.25X25-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
