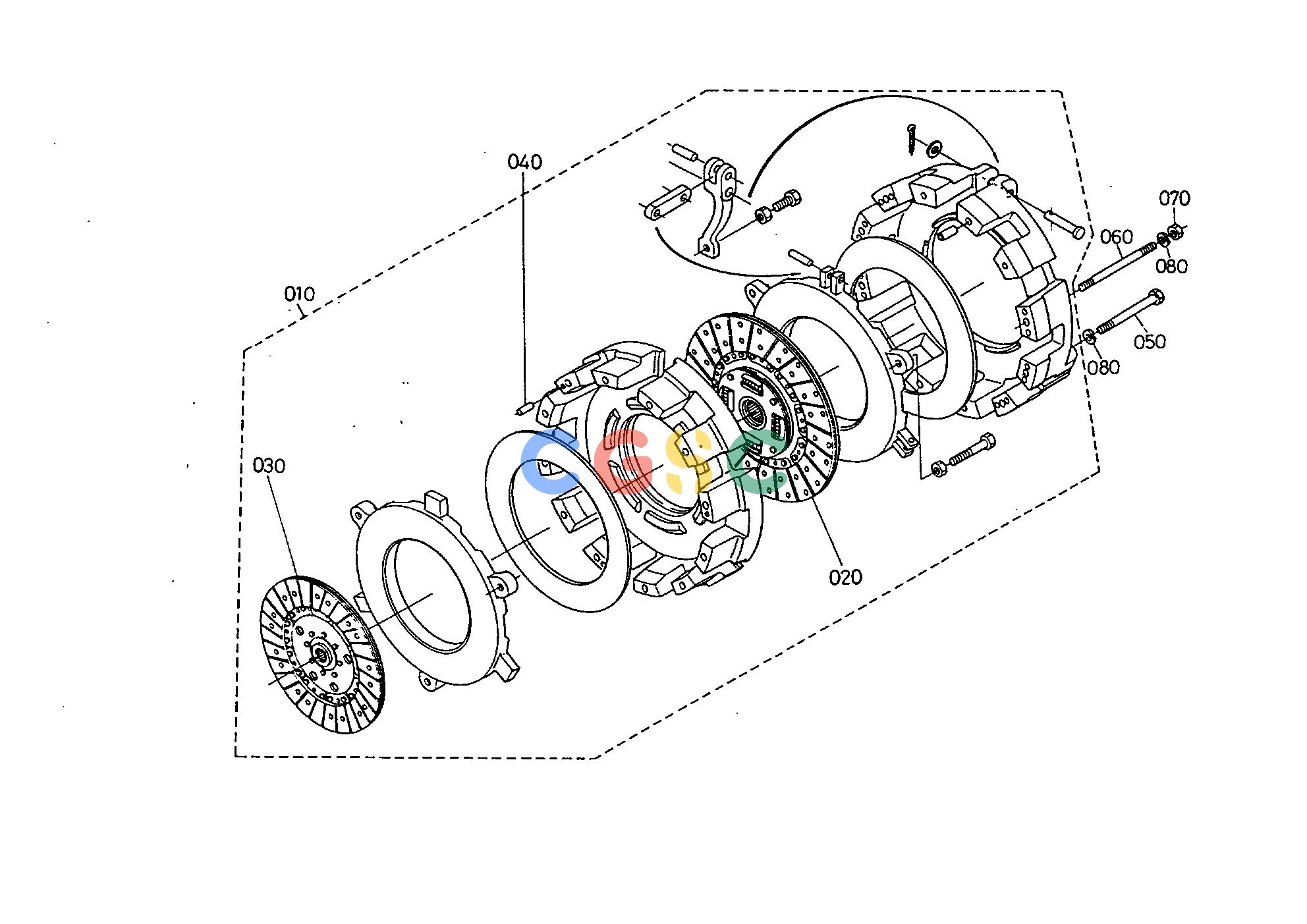

久保田零件查询T00700 CLUTCH (DUAL CLUTCH) CLUTCHEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
553 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3253014200
|
[1] |
ASSY CLUTCH DUAL
|
0.0000(lbs); 0.000
|
| 020. |
3253014470
|
[1] |
DISK CLUTCH
|
0.0000(lbs); 0.000
|
| 030. |
3253014400
|
[1] |
DISK CLUTCH
|
0.0000(lbs); 0.000
|
| 040. |
0501200612
|
[2] |
PIN STRAIGHT
|
0.0066(lbs); 0.003
|
| 050. |
0115350800
|
[10] |
BOLT
|
0.0792(lbs); 0.036
|
| 060. |
3253014590
|
[2] |
STUD
|
0.0990(lbs); 0.045
|
| 070. |
0215650080
|
[2] |
NUT
|
0.0088(lbs); 0.004
|
| 080. |
0451250080
|
[12] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
