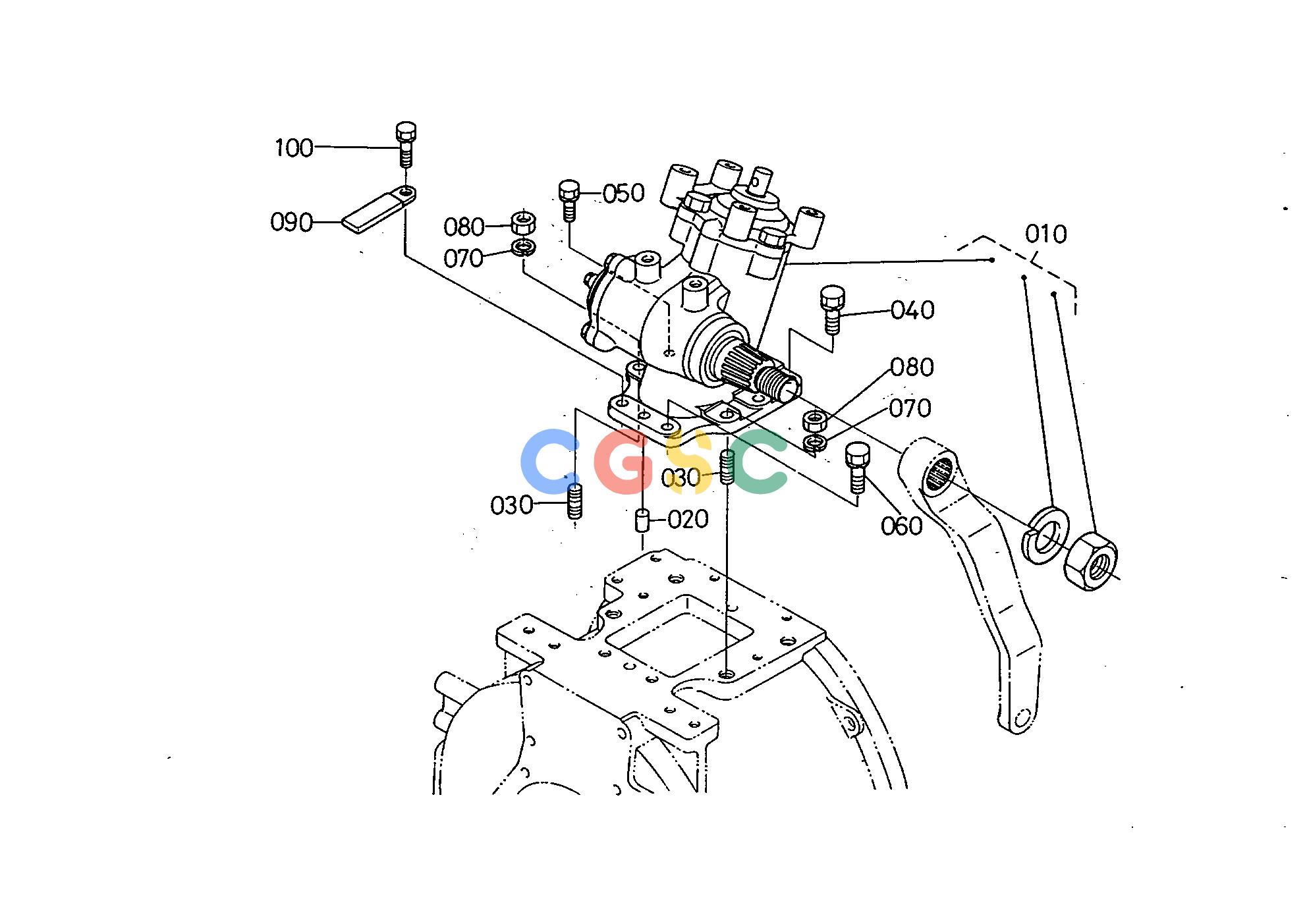

久保田零件查询T01400 POWER STEERING STEERINGEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
697 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3253016100
|
[1] |
ASSY STEERING POWER
|
36.3000(lbs); 16.500
|
| 020. |
3715027370
|
[2] |
PIN STRAIGHT
|
0.0198(lbs); 0.009
|
| 030. |
0157451228
|
[2] |
STUD
|
0.0770(lbs); 0.035
|
| 040. |
0113351230
|
[2] |
BOLT
|
0.0880(lbs); 0.040
|
| 050. |
0112350825
|
[2] |
BOLT
|
0.0286(lbs); 0.013
|
| 060. |
0113351030
|
[2] |
BOLT
|
0.0550(lbs); 0.025
|
| 070. |
0451250120
|
[2] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 080. |
0217450120
|
[2] |
NUT
|
0.0220(lbs); 0.010
|
| 090. |
3715034460
|
[1] |
CLAMP CORD
|
0.0088(lbs); 0.004
|
| 100. |
0117351014
|
[1] |
BOLT
|
0.0330(lbs); 0.015
|
