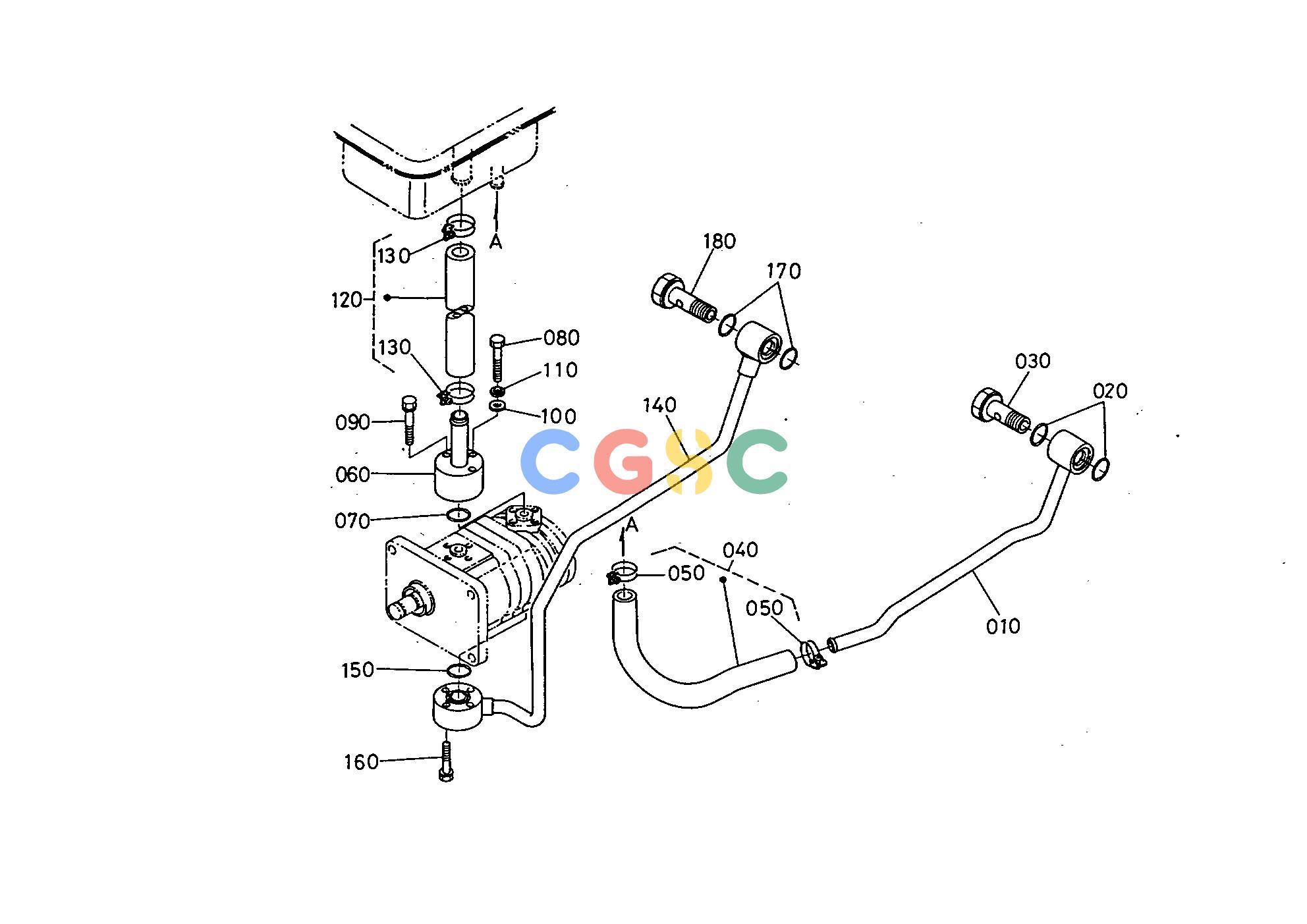

久保田零件查询T01800 POWER STEERING OIL LINE (MANUAL SHUTTLE) STEERINGEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
320 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3253038560
|
[1] |
COMP.PIPE RETURN
|
0.3740(lbs); 0.170
|
| 020. |
0481000200
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 030. |
3253038550
|
[1] |
BOLT JOINT
|
0.1980(lbs); 0.090
|
| 040. |
3253038590
|
[1] |
ASSY PIPE RUBBER
|
0.0000(lbs); 0.000
|
| 050. |
3633063690
|
[2] |
BAND HOSE
|
0.0220(lbs); 0.010
|
| 060. |
3253038630
|
[1] |
JOINT
|
0.0000(lbs); 0.000
|
| 070. |
0481100180
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 080. |
0102350640
|
[2] |
BOLT
|
0.0220(lbs); 0.010
|
| 090. |
0105350645
|
[1] |
BOLT
|
0.0264(lbs); 0.012
|
| 100. |
0401250060
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 110. |
0451250060
|
[1] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 120. |
3253038650
|
[1] |
ASSY PIPE RUBBER
|
0.2420(lbs); 0.110
|
| 130. |
3653004940
|
[2] |
BAND HOSE
|
0.0286(lbs); 0.013
|
| 140. |
3253038510
|
[1] |
COMP.PIPE DELIVERY
|
1.3420(lbs); 0.610
|
| 150. |
0481140140
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 160. |
0102350635
|
[4] |
BOLT
|
0.0220(lbs); 0.010
|
| 170. |
0481000200
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 180. |
3253038550
|
[1] |
BOLT JOINT
|
0.1980(lbs); 0.090
|
