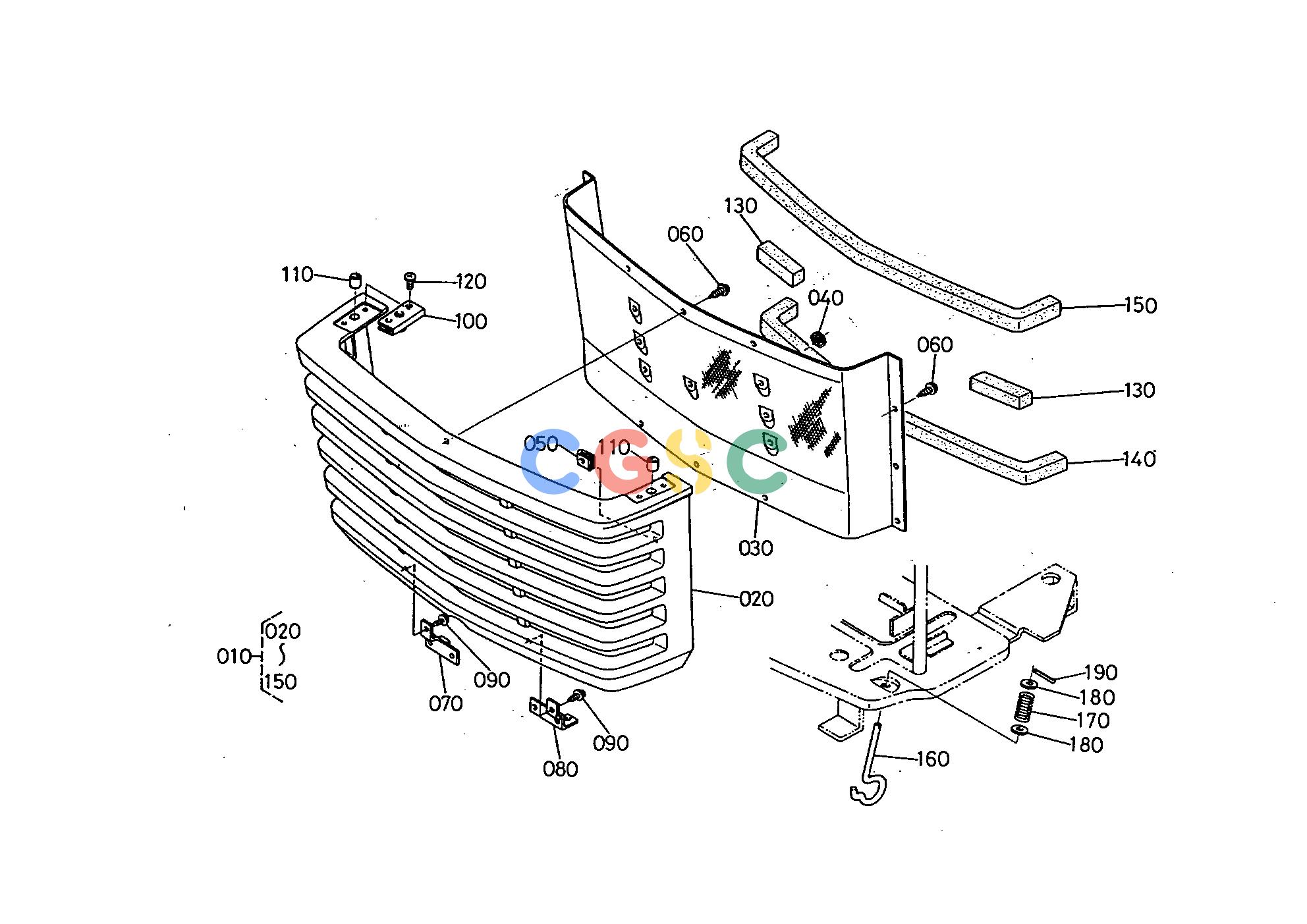

久保田零件查询T02400 FRONT GRILLE CHASSISEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
711 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3253018303
|
[1] |
ASSY GRILLE FRONT
|
0.0000(lbs); 0.000
|
| 020. |
3253018310
|
[1] |
GRILLE FRONT
|
0.0000(lbs); 0.000
|
| 030. |
3253018320
|
[1] |
NET FRONT GRILLE
|
0.0000(lbs); 0.000
|
| 040. |
3135193550
|
[7] |
NUT
|
0.0022(lbs); 0.001
|
| 050. |
3135193540
|
[6] |
NUT
|
0.0044(lbs); 0.002
|
| 060. |
3253019270
|
[12] |
SCREW
|
0.0110(lbs); 0.005
|
| 070. |
3253018250
|
[1] |
BRACKET GLILLE RH
|
0.0880(lbs); 0.040
|
| 080. |
3253019260
|
[1] |
BRACKET GLILLE LH
|
0.0880(lbs); 0.040
|
| 090. |
3253019270
|
[6] |
SCREW
|
0.0110(lbs); 0.005
|
| 100. |
3253018190
|
[2] |
SUPPORT PIN
|
0.0440(lbs); 0.020
|
| 110. |
3253018280
|
[2] |
PIPE RUBBER
|
0.0022(lbs); 0.001
|
| 120. |
3253019300
|
[4] |
SCREW
|
0.0044(lbs); 0.002
|
| 130. |
3253018910
|
[2] |
CUSHION
|
0.0110(lbs); 0.005
|
| 140. |
3253018920
|
[1] |
CUSHION
|
0.0770(lbs); 0.035
|
| 150. |
3253018940
|
[1] |
CUSHION
|
0.0770(lbs); 0.035
|
| 160. |
3253018260
|
[2] |
SUPPORT GLILLE
|
0.1100(lbs); 0.050
|
| 170. |
6780054623
|
[2] |
SPRING
|
0.0110(lbs); 0.005
|
| 180. |
0401550060
|
[4] |
WASHER PLAIN
|
0.0132(lbs); 0.006
|
| 190. |
0551150315
|
[2] |
PIN SPLIT
|
0.0044(lbs); 0.002
|
