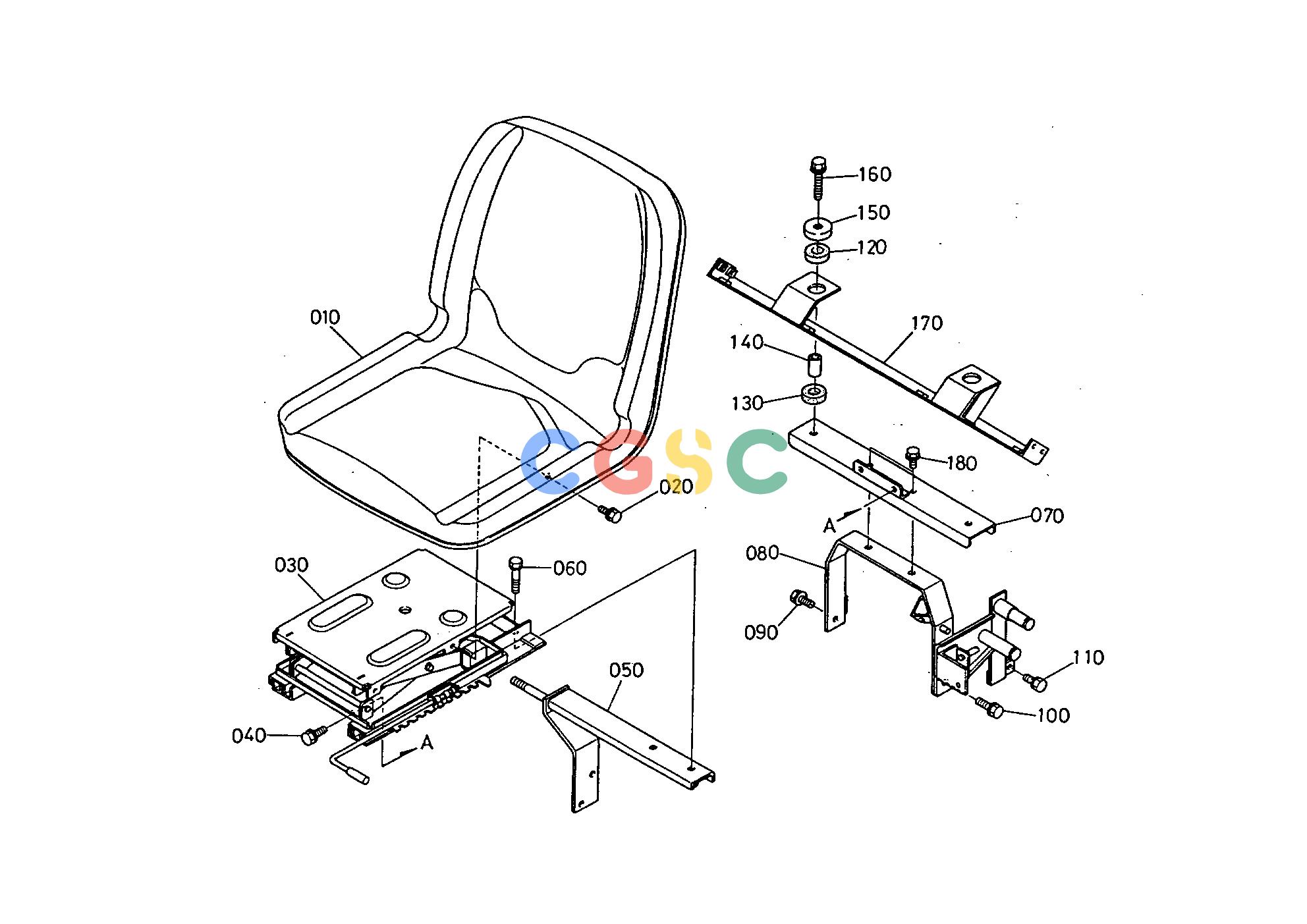

久保田零件查询T02700 SEAT CHASSISEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
189 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3253018400
|
[1] |
ASSY SEAT
|
19.8000(lbs); 9.000
|
| 020. |
0112350820
|
[4] |
BOLT
|
0.0242(lbs); 0.011
|
| 030. |
3253018410
|
[1] |
ASSY SUSPENTION SEAT
|
0.0000(lbs); 0.000
|
| 040. |
0177451025
|
[2] |
BOLT FLANGE
|
0.0440(lbs); 0.020
|
| 050. |
3253036910
|
[1] |
SHAFT
|
0.0000(lbs); 0.000
|
| 060. |
0113351055
|
[2] |
BOLT
|
0.0858(lbs); 0.039
|
| 070. |
3253029360
|
[1] |
BASE CUSHION
|
2.3540(lbs); 1.070
|
| 080. |
3253029350
|
[1] |
SUPPORT SEAT
|
0.0000(lbs); 0.000
|
| 090. |
0177451025
|
[1] |
BOLT FLANGE
|
0.0440(lbs); 0.020
|
| 100. |
0177451020
|
[1] |
BOLT FLANGE
|
0.0440(lbs); 0.020
|
| 110. |
0113351022
|
[1] |
BOLT
|
0.0550(lbs); 0.025
|
| 120. |
3135129260
|
[2] |
CUSHION UPPER
|
0.1100(lbs); 0.050
|
| 130. |
3135129270
|
[2] |
CUSHION LOWER
|
0.0990(lbs); 0.045
|
| 140. |
3135129280
|
[2] |
SPACER
|
0.0880(lbs); 0.040
|
| 150. |
3253029390
|
[2] |
RETAINER CUSHION
|
0.1100(lbs); 0.050
|
| 160. |
0177451265
|
[2] |
BOLT FLANGE
|
0.1320(lbs); 0.060
|
| 170. |
3253029370
|
[1] |
SUPPORT CUSHION
|
4.6200(lbs); 2.100
|
| 180. |
0177451025
|
[2] |
BOLT FLANGE
|
0.0440(lbs); 0.020
|
