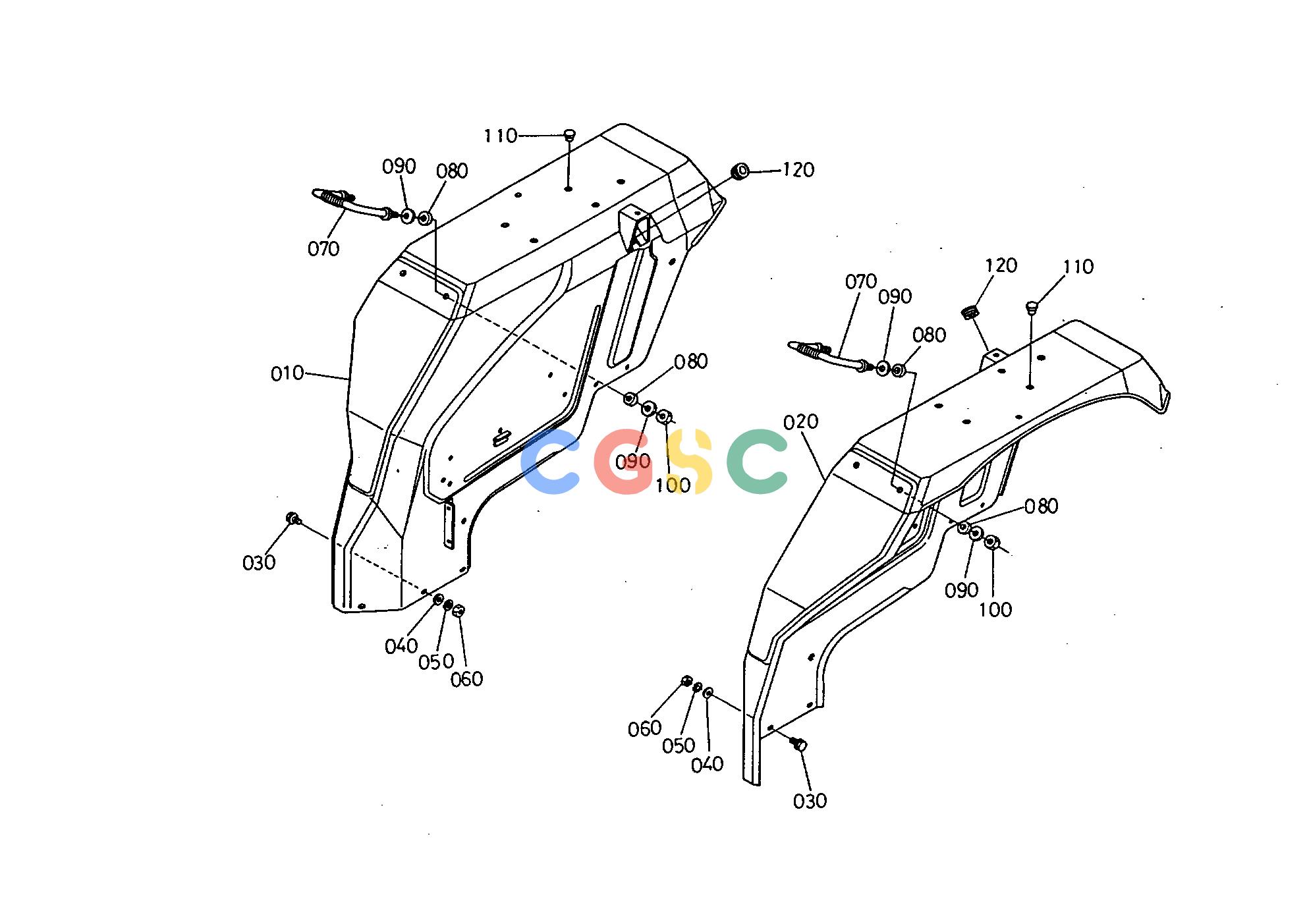

久保田零件查询T05500 FENDER CHASSISEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
956 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3253029110
|
[1] |
COMP.FENDER RH
|
0.0000(lbs); 0.000
|
| 020. |
3253029210
|
[1] |
COMP.FENDER LH
|
0.0000(lbs); 0.000
|
| 030. |
0175450816
|
[18] |
BOLT FLANGE
|
0.0242(lbs); 0.011
|
| 040. |
0401250080
|
[6] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 050. |
0451250080
|
[6] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 060. |
0211450080
|
[6] |
NUT
|
0.0110(lbs); 0.005
|
| 070. |
3135129440
|
[2] |
BALUSTRADE
|
0.0000(lbs); 0.000
|
| 080. |
3226029180
|
[4] |
CUSHION
|
0.0110(lbs); 0.005
|
| 090. |
0401350140
|
[4] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 100. |
0217450140
|
[4] |
NUT
|
0.0308(lbs); 0.014
|
| 110. |
3253029170
|
[10] |
PLUG
|
0.0022(lbs); 0.001
|
| 120. |
3215029180
|
[2] |
CAP
|
0.0044(lbs); 0.002
|
