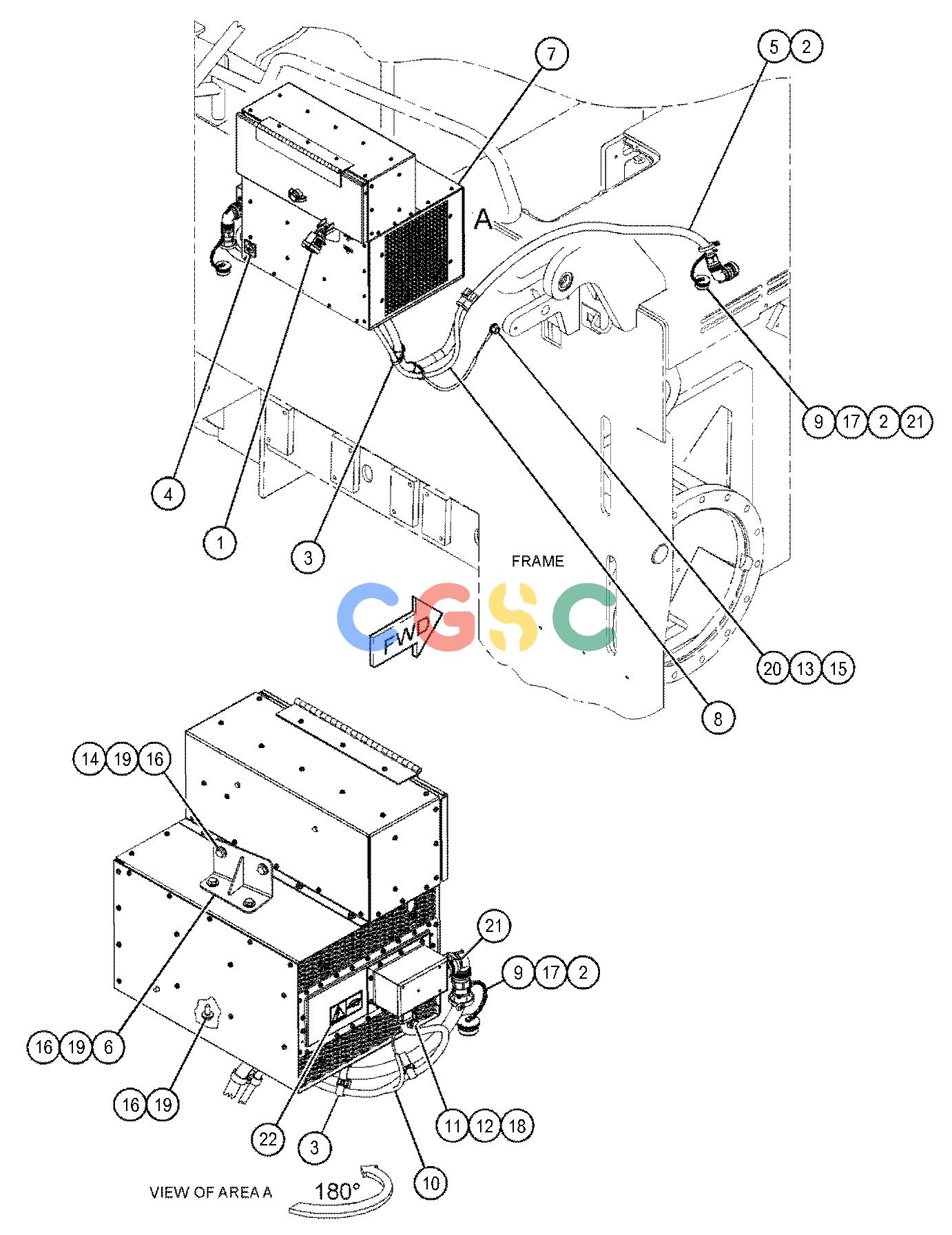

卡特零件查询（AP600F） 416-2012: WIRING GP-POWER RECEPTACLE
广数供应链运营团队, 17 02月, 2025，浏览：
838 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 246-2641J | [1] | PADLOCK GP | |
| 2. | 7K-1181 | [3] | STRAP-CABLE | |
| 3. | 177-2215 | [5] | STRAP-DUAL CLAMP | |
| 4. | 228-4798 | [1] | FILM-IDENTIFICATION(GROUND) | |
| 5. | 417-7930 | [1] | HARNESS AS-POWER(HIGH VOLTAGE) | |
| | 1P-0810B | | TAPE-ELECTRICAL | |
| | 418-6705 | [1] | PLUG AS-CONNECTOR(3-PIN) | |
| | 418-6716 | [1] | PLUG AS-CONNECTOR(3-PIN) | |
| 6. | 440-8294 | [1] | BRACKET AS | |
| 7. | 506-9432 | [1] | INVERTER GP-POWER | |
| | 461-3269 | [1] | FAN AS | |
| | 461-3270 | [1] | PANEL AS | |
| | 461-3271 | [1] | RECEPTACLE | |
| | 461-3272 | [1] | CIRCUIT BREAKER(INVERTER) | |
| 8. | 446-6703Y | [1] | HARNESS AS-POWER(LOW VOLTAGE) | |
| 9. | 449-5181 | [2] | CAP AS | |
| 10. | 463-4003 | [1] | WIRE AS-GROUND | |
| 11. | 1A-8912 | [1] | WASHER(6.7X12.7X1.6-MM THK) | |
| 12. | 1H-3338 | [1] | LOCKWASHER | |
| 13. | 214-0910 | [1] | LOCKWASHER | |
| 14. | 344-5674M | [2] | NUT(M8X1.25-THD) | |
| 15. | 4B-4280 | [1] | WASHER(13.5X27X2.5-MM THK) | |
| 16. | 5P-4116 | [10] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 17. | 8L-8413 | [2] | STRAP-CABLE(WHITE) | |
| 18. | 8T-4171M | [1] | BOLT(M6X1X12-MM) | |
| 19. | 8T-4189M | [8] | BOLT(M8X1.25X20-MM) | |
| 20. | 8T-4244M | [1] | NUT(M12X1.75-THD) | |
| 21. | 5P-6025BD | | LOCKWIRE(0.4-M) | |
| 22. | 424-6098 | [1] | FILM-WARNING(ELECTROCUTION HAZARD, READ OMM) | |
| | B | | USE AS REQUIRED |
| | D | | ORDER BY THE METER |
| | J | | REQUIRES CORPORATE KEY |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
