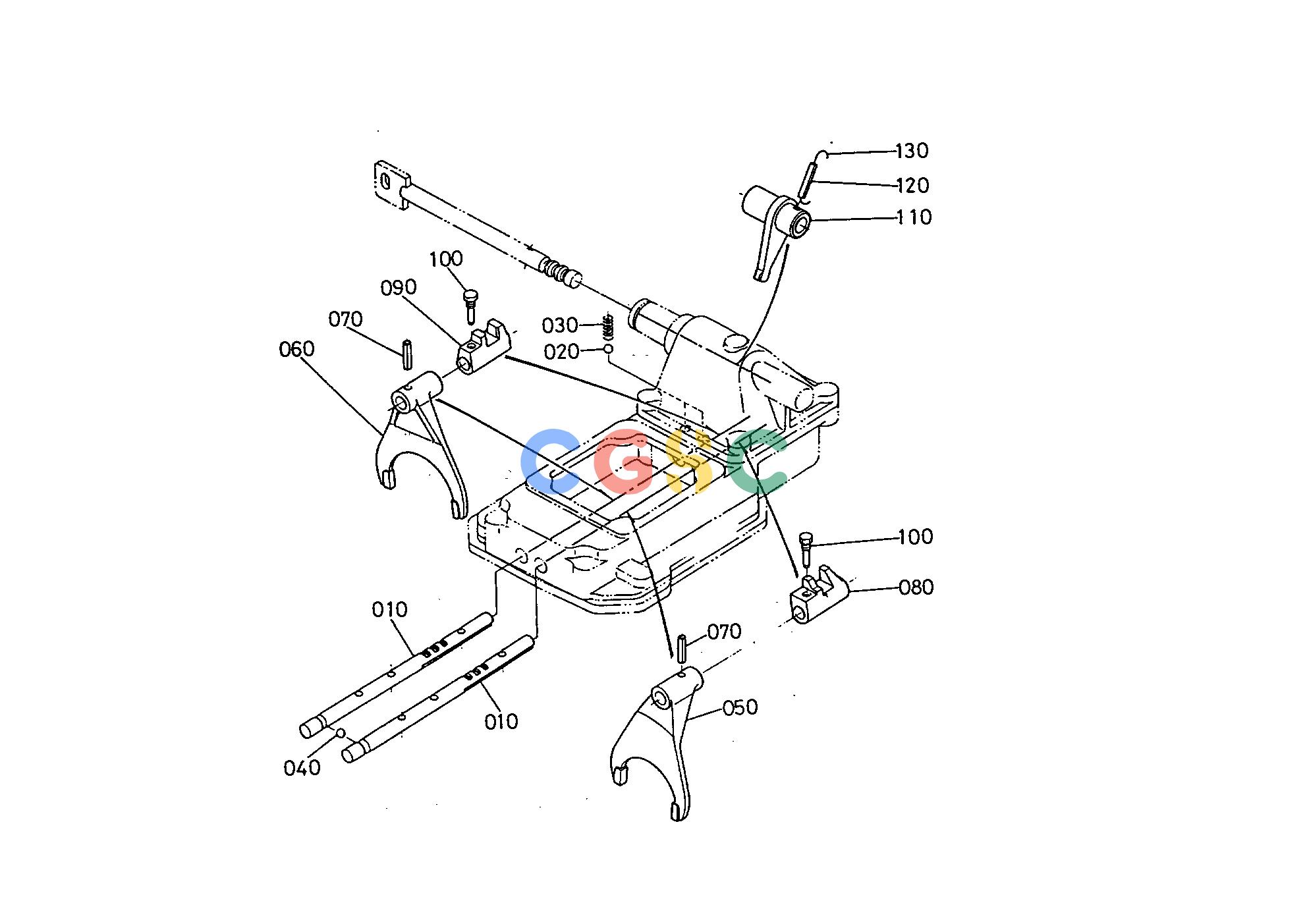

久保田零件查询T04300 SHIFT FORK TRANSMISSIONEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
629 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3253023540
|
[2] |
ROD FORK
|
0.0000(lbs); 0.000
|
| 020. |
0771501605
|
[2] |
BALL
|
0.0066(lbs); 0.003
|
| 030. |
6258118230
|
[2] |
SPRING STOPPER
|
0.0220(lbs); 0.010
|
| 040. |
0771500803
|
[1] |
BALL
|
0.0044(lbs); 0.002
|
| 050. |
3253023510
|
[1] |
FORK SHIFT
|
0.9240(lbs); 0.420
|
| 060. |
3253023520
|
[1] |
FORK SHIFT
|
0.9240(lbs); 0.420
|
| 070. |
0541100635
|
[2] |
PIN SPRING
|
0.0110(lbs); 0.005
|
| 080. |
3253024870
|
[1] |
SUPPORT S-CHANGE
|
0.3300(lbs); 0.150
|
| 090. |
3253024880
|
[1] |
SUPPORT S-CHANGE
|
0.2860(lbs); 0.130
|
| 100. |
3253024890
|
[2] |
SCREW
|
0.0220(lbs); 0.010
|
| 110. |
3253023770
|
[1] |
LEVER SHIFT
|
0.5060(lbs); 0.230
|
| 120. |
0541100635
|
[1] |
PIN SPRING
|
0.0110(lbs); 0.005
|
| 130. |
0781111213
|
[1] |
WIRE
|
0.0022(lbs); 0.001
|
