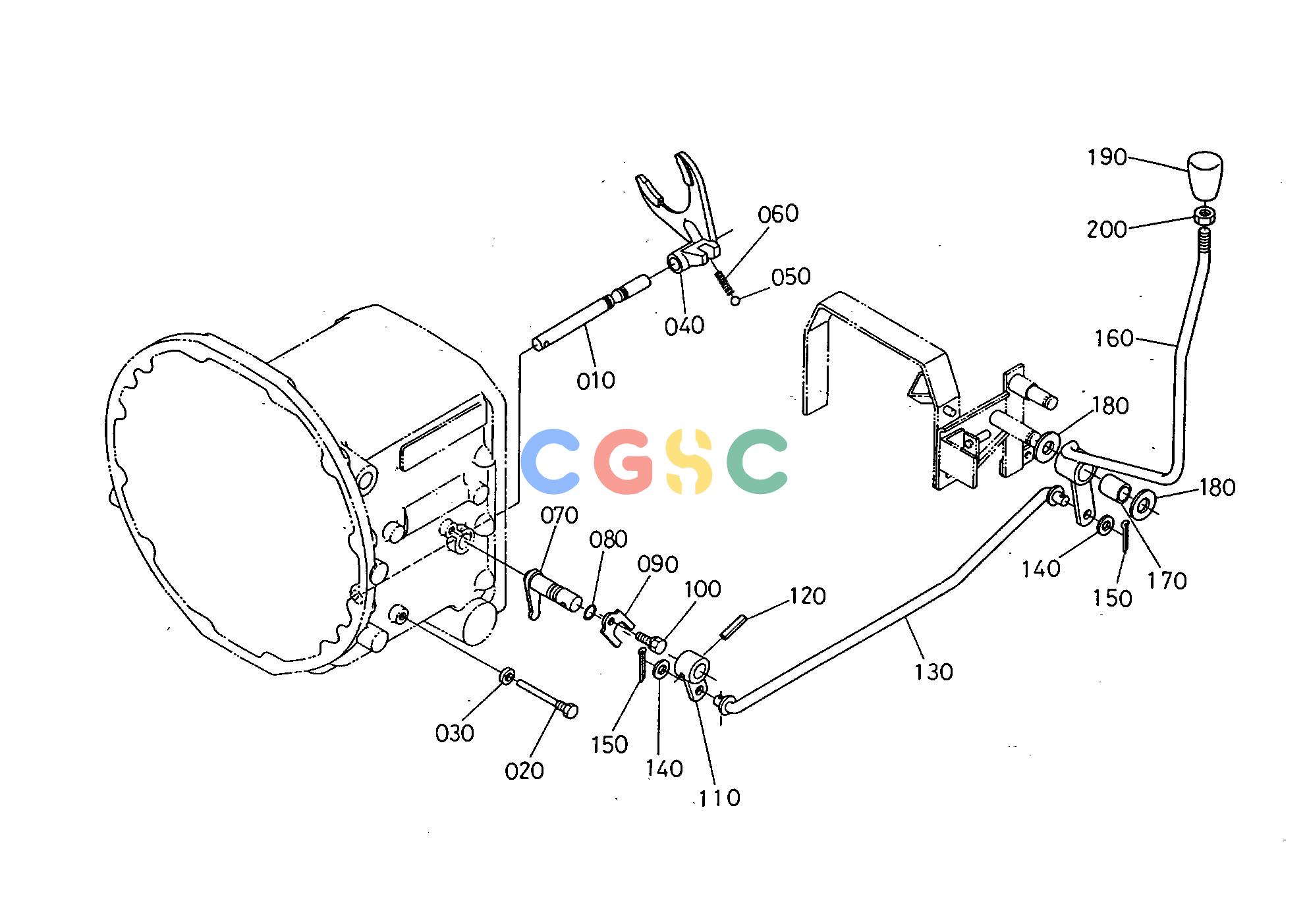

久保田零件查询T04700 SHUTTLE SHIFT LEVER (MANUAL) TRANSMISSIONEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
852 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3253020810
|
[1] |
ROD FORK
|
0.5500(lbs); 0.250
|
| 020. |
3253023130
|
[1] |
SCREW
|
0.0550(lbs); 0.025
|
| 030. |
0471700800
|
[1] |
WASHER SEAL
|
0.0022(lbs); 0.001
|
| 040. |
3253020820
|
[1] |
FORK SHIFT
|
0.8360(lbs); 0.380
|
| 050. |
0771501605
|
[1] |
BALL
|
0.0066(lbs); 0.003
|
| 060. |
6258118230
|
[1] |
SPRING STOPPER
|
0.0220(lbs); 0.010
|
| 070. |
3253020870
|
[1] |
LEVER SHIFT
|
0.3850(lbs); 0.175
|
| 080. |
0481100150
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 090. |
3415024350
|
[1] |
STOPPER LEVER
|
0.0220(lbs); 0.010
|
| 100. |
0112350816
|
[1] |
BOLT
|
0.0242(lbs); 0.011
|
| 110. |
3253020720
|
[1] |
ARM SHUTTLE
|
0.0000(lbs); 0.000
|
| 120. |
0541100840
|
[1] |
PIN SPRING
|
0.0176(lbs); 0.008
|
| 130. |
3253020730
|
[1] |
ROD SHUTTLE
|
1.0120(lbs); 0.460
|
| 140. |
0401350120
|
[2] |
WASHER PLAIN
|
0.0154(lbs); 0.007
|
| 150. |
0551150322
|
[2] |
PIN SPLIT
|
0.0044(lbs); 0.002
|
| 160. |
3253020760
|
[1] |
LEVER SHUTTLE
|
0.0000(lbs); 0.000
|
| 170. |
3253020750
|
[1] |
BUSH
|
0.0000(lbs); 0.000
|
| 180. |
0401350200
|
[2] |
WASHER PLAIN
|
0.0440(lbs); 0.020
|
| 190. |
3325129620
|
[1] |
GRIP
|
0.1254(lbs); 0.057
|
| 200. |
0217250140
|
[1] |
NUT
|
0.0220(lbs); 0.010
|
