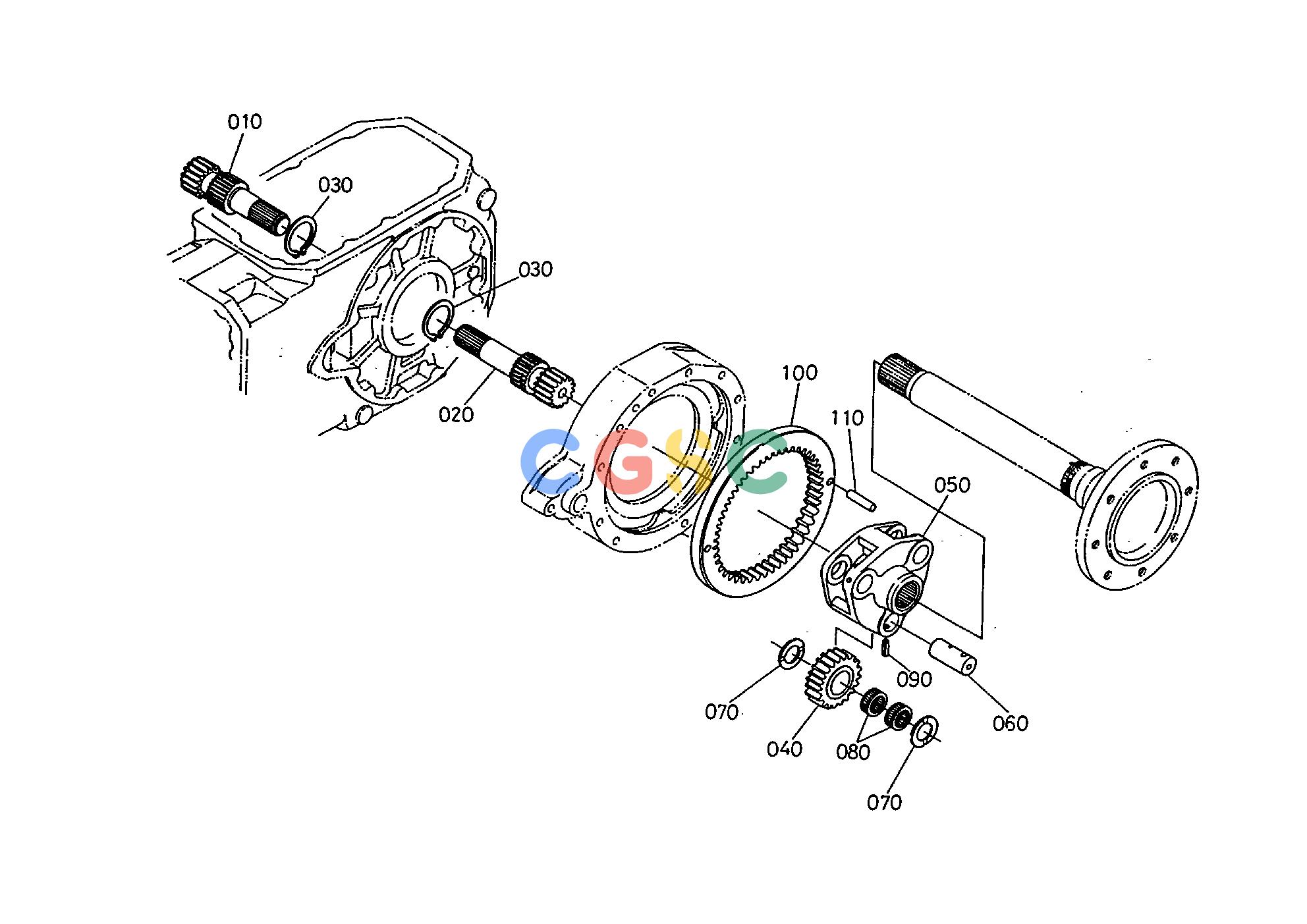

久保田零件查询T05000 PLANETARY GEAR REAR AXLEEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
227 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3253026710
|
[1] |
GEAR-SHAFT RH
|
2.6950(lbs); 1.225
|
| 020. |
3253026720
|
[1] |
GEAR-SHAFT LH
|
4.2130(lbs); 1.915
|
| 030. |
0461200550
|
[2] |
CIR-CLIP EXTERNAL
|
0.0220(lbs); 0.010
|
| 040. |
3253026810
|
[6] |
GEAR PLANETARY
|
2.7500(lbs); 1.250
|
| 050. |
3253026820
|
[2] |
SUPPORT 1
|
0.0000(lbs); 0.000
|
| 060. |
3620048362
|
[6] |
PIN PLANETARY GEAR
|
0.8800(lbs); 0.400
|
| 070. |
3253026840
|
[12] |
COLLAR THRUST
|
0.0330(lbs); 0.015
|
| 080. |
0882323916
|
[12] |
BEARING NEEDLE
|
0.0682(lbs); 0.031
|
| 090. |
0541100825
|
[6] |
PIN SPRING
|
0.0132(lbs); 0.006
|
| 100. |
3253026850
|
[2] |
GEAR
|
9.1300(lbs); 4.150
|
| 110. |
3620048410
|
[4] |
PIN STRAIGHT
|
0.0110(lbs); 0.005
|
