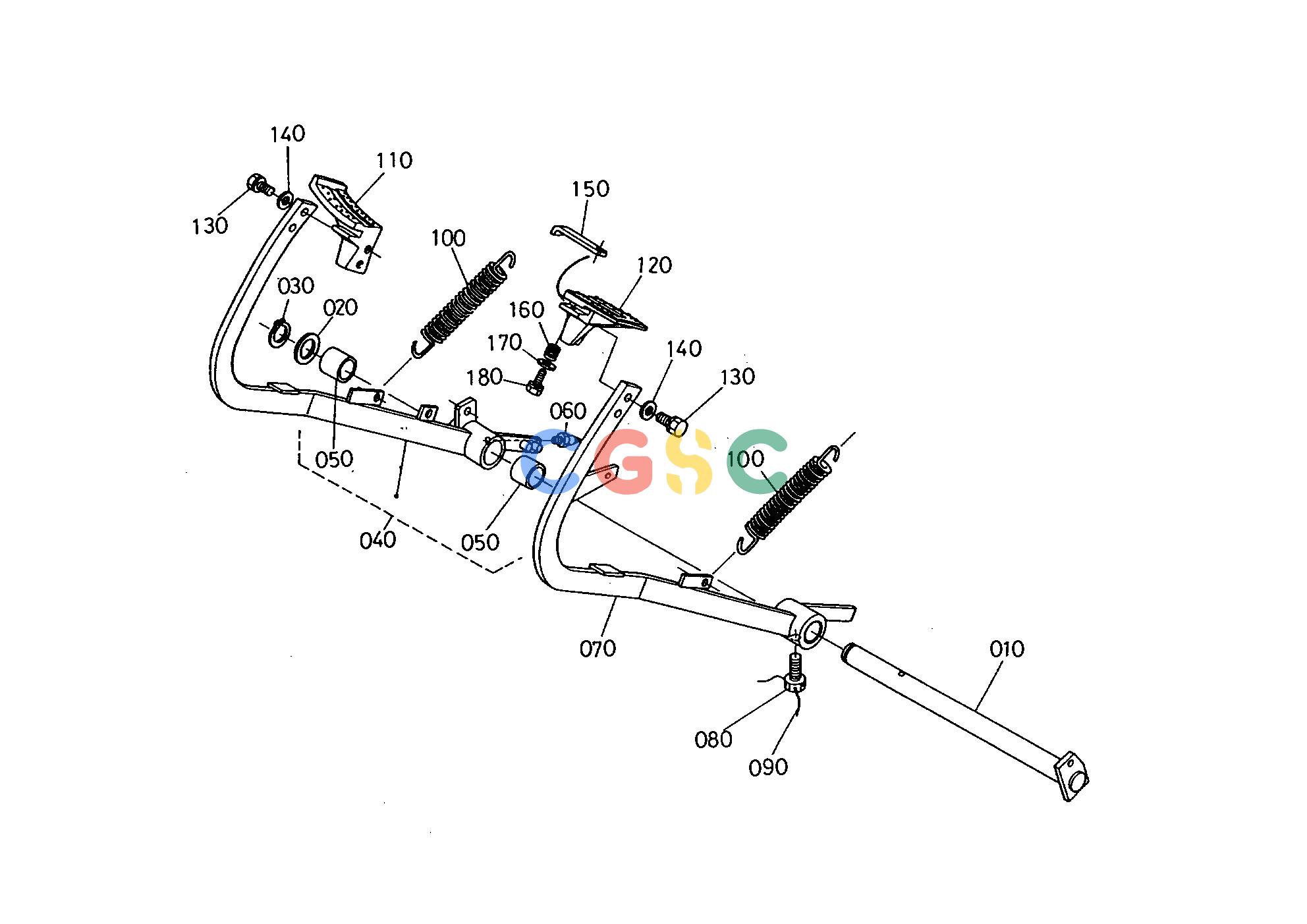

久保田零件查询T05300 BRAKE PEDAL BRAKEEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
800 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3253028650
|
[1] |
SHAFT BRAKE PEDAL
|
5.4120(lbs); 2.460
|
| 020. |
3253028660
|
[1] |
COLLAR
|
0.0396(lbs); 0.018
|
| 030. |
0461200280
|
[1] |
CIR-CLIP EXTERNAL
|
0.0066(lbs); 0.003
|
| 040. |
3253028610
|
[1] |
ARM BRAKE PEDAL RH
|
5.9400(lbs); 2.700
|
| 050. |
3215028440
|
[2] |
BUSH
|
0.0946(lbs); 0.043
|
| 060. |
0661310010
|
[1] |
NIPPLE GREASE
|
0.0132(lbs); 0.006
|
| 070. |
3253028620
|
[1] |
ARM BRAKE PEDAL LH
|
6.1600(lbs); 2.800
|
| 080. |
3325126350
|
[1] |
BOLT
|
0.0990(lbs); 0.045
|
| 090. |
0781111620
|
[1] |
WIRE
|
0.0000(lbs); 0.000
|
| 100. |
3715015840
|
[2] |
SPRING
|
0.1320(lbs); 0.060
|
| 110. |
3633067120
|
[1] |
HEEL PEDAL
|
1.8700(lbs); 0.850
|
| 120. |
3633067220
|
[1] |
HEEL PEDAL
|
1.8920(lbs); 0.860
|
| 130. |
0112350825
|
[4] |
BOLT
|
0.0286(lbs); 0.013
|
| 140. |
0401350080
|
[4] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 150. |
3633067230
|
[1] |
STOPPER BRAKE PEDAL
|
0.1320(lbs); 0.060
|
| 160. |
3633067240
|
[1] |
SPRING
|
0.0022(lbs); 0.001
|
| 170. |
0401350060
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 180. |
0102350625
|
[1] |
BOLT
|
0.0154(lbs); 0.007
|
