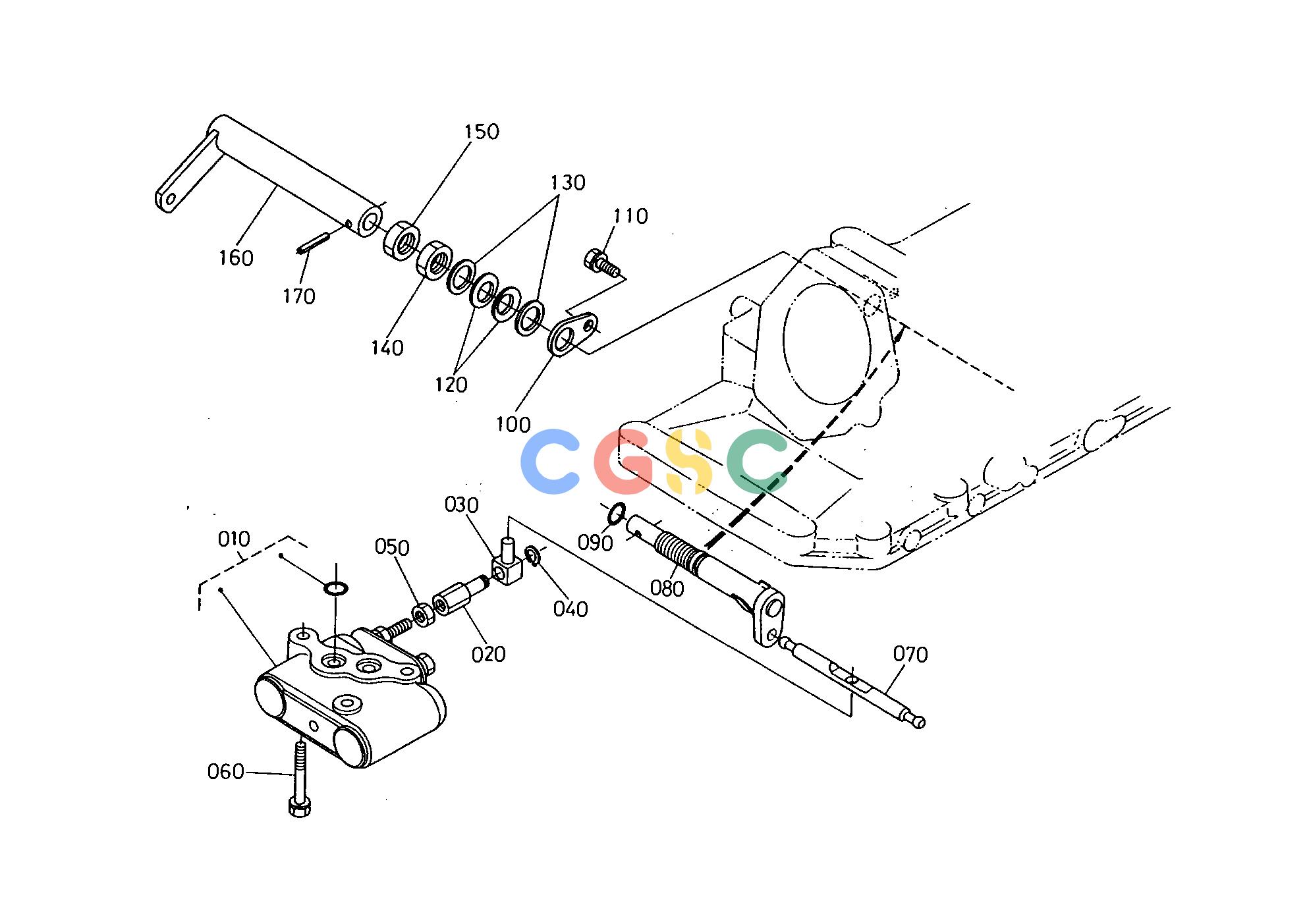

久保田零件查询T07200 HYDRAULIC CONTROL VALVE HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
553 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3824039143
|
[1] |
VALVE CONTROL
|
3.7070(lbs); 1.685
|
| 020. |
3253036410
|
[1] |
JOINT SPOOL
|
0.0440(lbs); 0.020
|
| 030. |
3715036420
|
[1] |
JOINT SPOOL
|
0.0440(lbs); 0.020
|
| 040. |
0461300060
|
[1] |
CIR-CLIP EXTERNAL
|
0.0000(lbs); 0.000
|
| 050. |
0211250080
|
[1] |
NUT
|
0.0066(lbs); 0.003
|
| 060. |
0112350850
|
[3] |
BOLT
|
0.0440(lbs); 0.020
|
| 070. |
3824036430
|
[1] |
LEVER SPOOL DRIVE
|
0.1430(lbs); 0.065
|
| 080. |
3253037650
|
[1] |
ARM CONTROL
|
0.4180(lbs); 0.190
|
| 090. |
0481100120
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 100. |
3426036890
|
[1] |
SET PLATE
|
0.0198(lbs); 0.009
|
| 110. |
0112350816
|
[1] |
BOLT
|
0.0242(lbs); 0.011
|
| 120. |
3426036880
|
[2] |
SPRING
|
0.0132(lbs); 0.006
|
| 130. |
3843036890
|
[2] |
WASHER
|
0.0220(lbs); 0.010
|
| 140. |
0217450140
|
[1] |
NUT
|
0.0308(lbs); 0.014
|
| 150. |
0217250140
|
[1] |
NUT
|
0.0220(lbs); 0.010
|
| 160. |
3253036830
|
[1] |
LEVER POSITION
|
0.8580(lbs); 0.390
|
| 170. |
0541100522
|
[1] |
PIN SPRING
|
0.0044(lbs); 0.002
|
