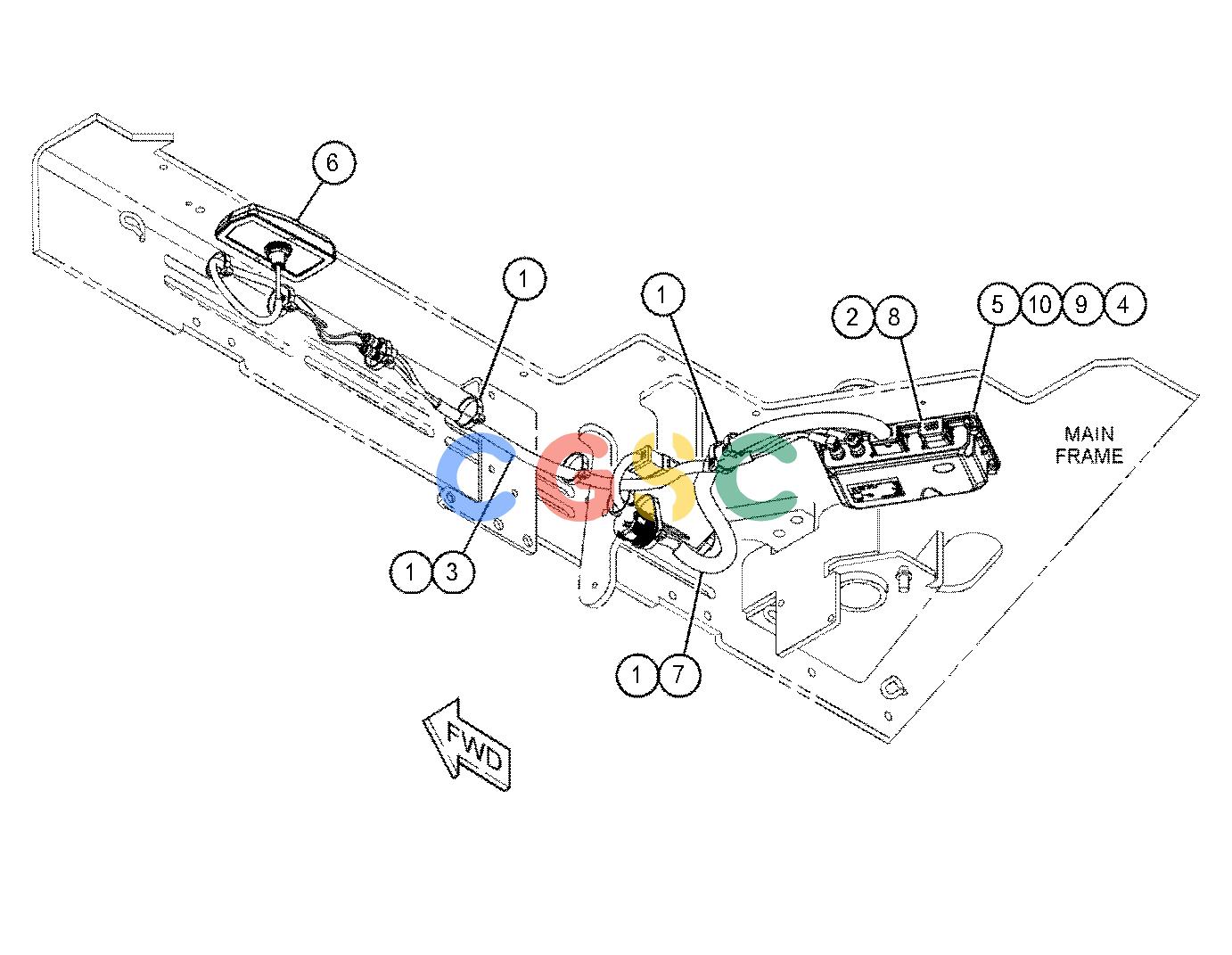

卡特零件查询（AP600F） 462-0804: INSTALLATION GP-COMMUNICATION
广数供应链运营团队, 17 02月, 2025，浏览：
763 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7K-1181 | [10] | STRAP-CABLE | |
| 2. | 8T-8737 | [8] | PLUG-SEAL | |
| 3. | 347-2216 | [1] | CABLE AS-COMMUNICATION(COAX) | |
| 4. | 478-8212Y | [1] | ELECTRONICS GP-MONITOR(PL631) | |
| 5. | 442-7199Y | [1] | CONTROL GP-UNPROGRAMMED(PRODUCT LINK ELITE 631 SATELLITE) | |
| 6. | 443-8462 | [1] | ANTENNA AS(CELLULAR) | |
| | 361-1045 | [1] | NUT-SPECIAL(5/8-18-THD) | |
| | 385-8201 | [1] | CAP AS-CONNECTOR | |
| 7. | 528-5477CY | [1] | HARNESS AS-CONTROL(COMMUNICATION RADIO) | |
| 8. | 155-2265 | [1] | KIT-CONNECTING PLUG(8-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| 9. | 8T-4138M | [4] | BOLT(M6X1X20-MM) | |
| 10. | 9X-8256 | [4] | WASHER(6.6X12X2-MM THK) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
