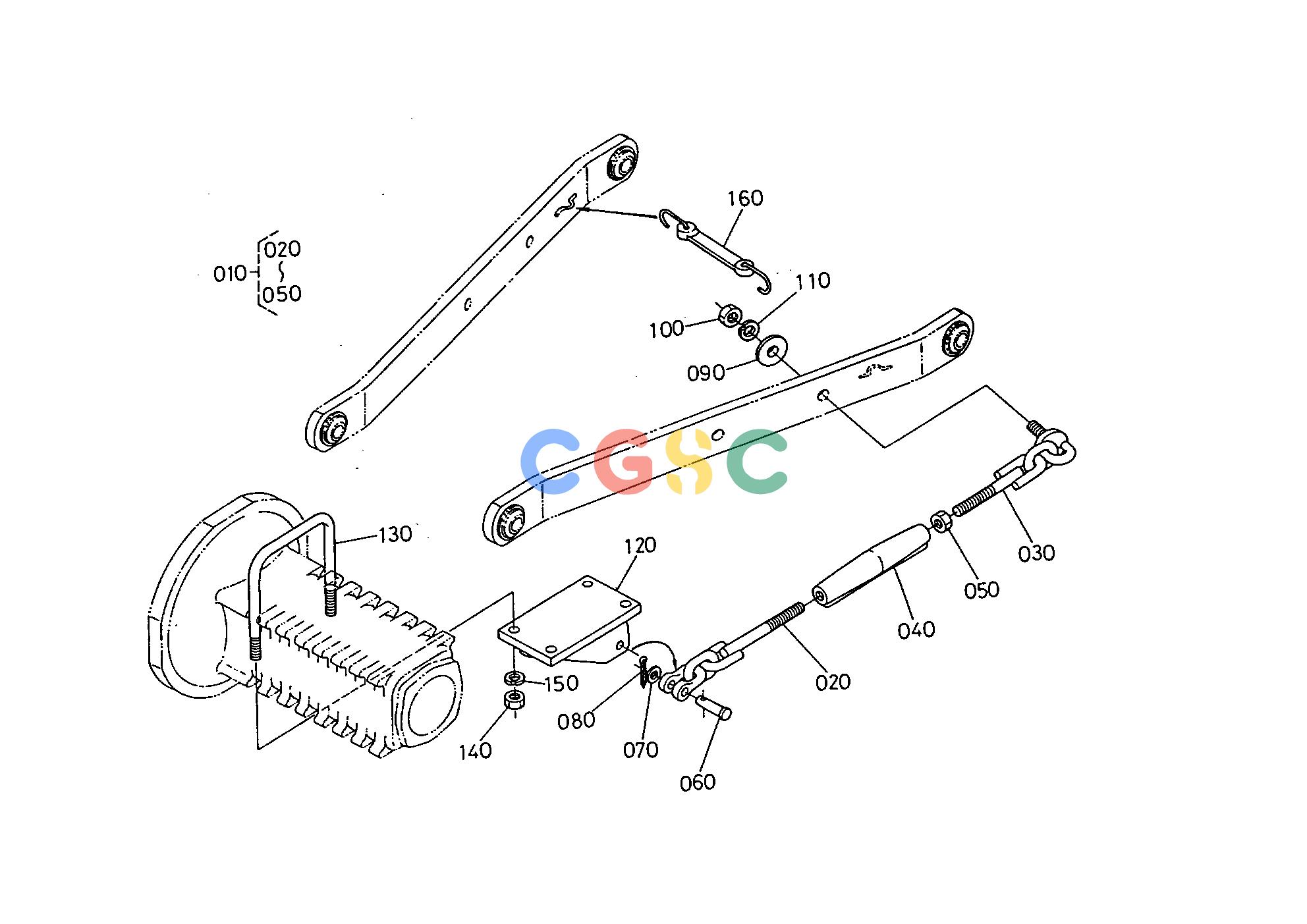

久保田零件查询T09900 3-POINT LINKAGE 3 HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
808 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3253071800
|
[2] |
ASSY CHAIN CHECK
|
4.6200(lbs); 2.100
|
| 020. |
3253071810
|
[2] |
CHAIN CHECK
|
1.3420(lbs); 0.610
|
| 030. |
3253071820
|
[2] |
CHAIN CHECK
|
1.4520(lbs); 0.660
|
| 040. |
3620091190
|
[2] |
TURNBUCKLE
|
1.3420(lbs); 0.610
|
| 050. |
0205250160
|
[2] |
NUT
|
0.0550(lbs); 0.025
|
| 060. |
3235371890
|
[2] |
PIN
|
0.0902(lbs); 0.041
|
| 070. |
0401350120
|
[2] |
WASHER PLAIN
|
0.0154(lbs); 0.007
|
| 080. |
0551150425
|
[2] |
PIN SPLIT
|
0.0066(lbs); 0.003
|
| 090. |
3730771830
|
[2] |
WASHER
|
0.6380(lbs); 0.290
|
| 100. |
0217450180
|
[2] |
NUT
|
0.0638(lbs); 0.029
|
| 110. |
0451250180
|
[2] |
WASHER SPRING
|
0.0330(lbs); 0.015
|
| 120. |
3253071910
|
[2] |
BRACKET CHECK CHAIN
|
10.7800(lbs); 4.900
|
| 130. |
3253071920
|
[4] |
BOLT
|
1.1000(lbs); 0.500
|
| 140. |
0217650140
|
[8] |
NUT
|
0.0308(lbs); 0.014
|
| 150. |
0451250140
|
[8] |
WASHER SPRING
|
0.0154(lbs); 0.007
|
| 160. |
3818771750
|
[2] |
ASSY RUBBER
|
0.0000(lbs); 0.000
|
