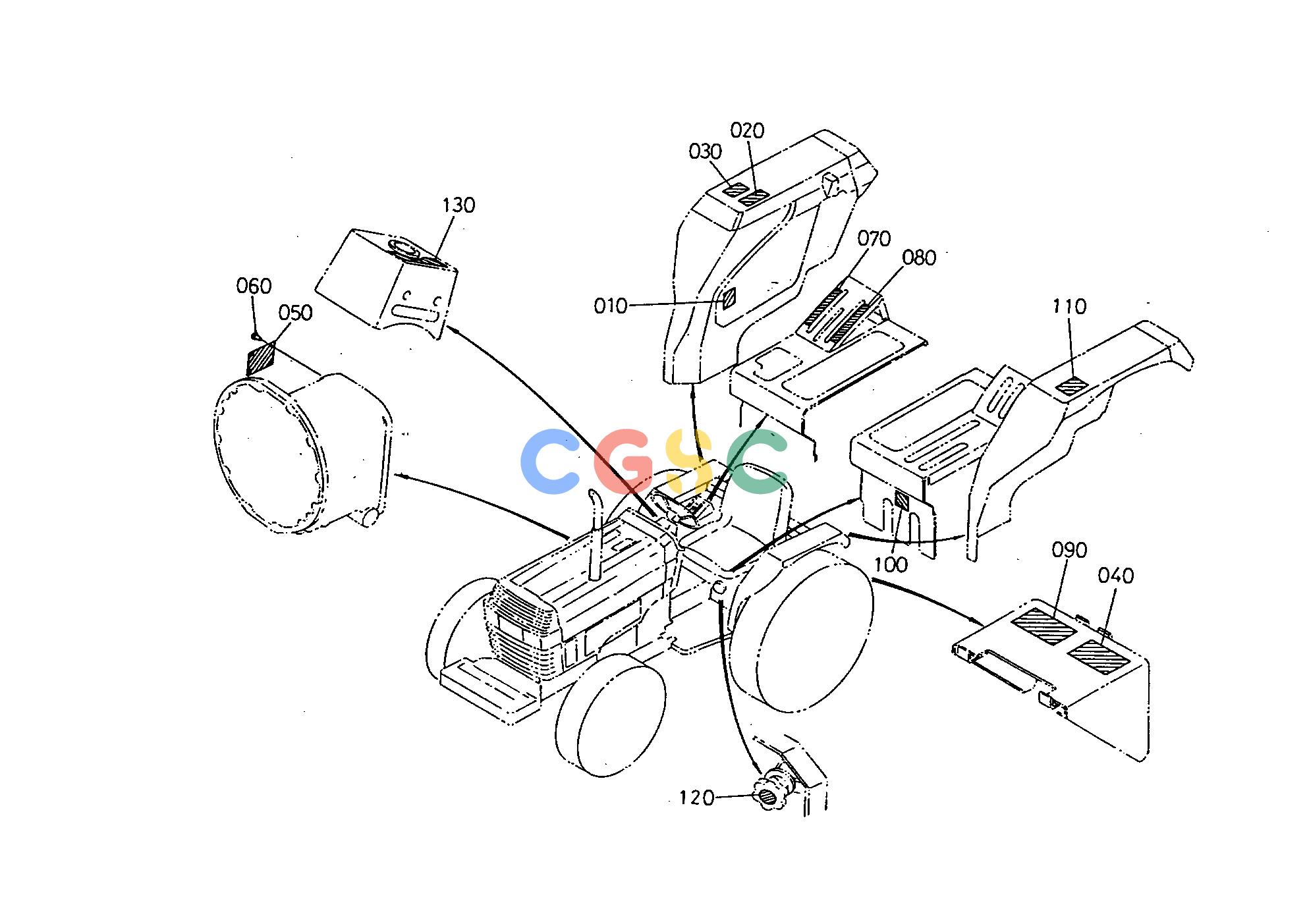

久保田零件查询T09600 LABEL 2 LABELEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
489 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3253065650
|
[1] |
LABEL DIFF.LOCK
|
0.0044(lbs); 0.002
|
| 020. |
3526034910
|
[1] |
LABEL SAFETY
|
0.0000(lbs); 0.000
|
| 030. |
3526029780
|
[1] |
LABEL ROPS
|
0.0000(lbs); 0.000
|
| 040. |
3526029790
|
[1] |
LABEL DRAWBAR
|
0.0044(lbs); 0.002
|
| 050. |
3253065460
|
[1] |
NAME PLATE
|
0.0220(lbs); 0.010
|
| 060. |
3415257920
|
[4] |
RIVET
|
0.0022(lbs); 0.001
|
| 070. |
3253065760
|
[1] |
LABEL
|
0.0022(lbs); 0.001
|
| 080. |
3253065770
|
[1] |
LABEL
|
0.0022(lbs); 0.001
|
| 090. |
3526025340
|
[1] |
LABEL
|
0.0110(lbs); 0.005
|
| 100. |
3253065780
|
[1] |
LABEL
|
0.0022(lbs); 0.001
|
| 110. |
3253065382
|
[1] |
LABEL
|
0.0000(lbs); 0.000
|
| 120. |
3135165780
|
[1] |
LABEL O/P ADJUSTING
|
0.0022(lbs); 0.001
|
