卡特零件查询（AP600F） 496-9628: LIGHTING GP-FLOOD
广数供应链运营团队, 17 02月, 2025，浏览：
755 次

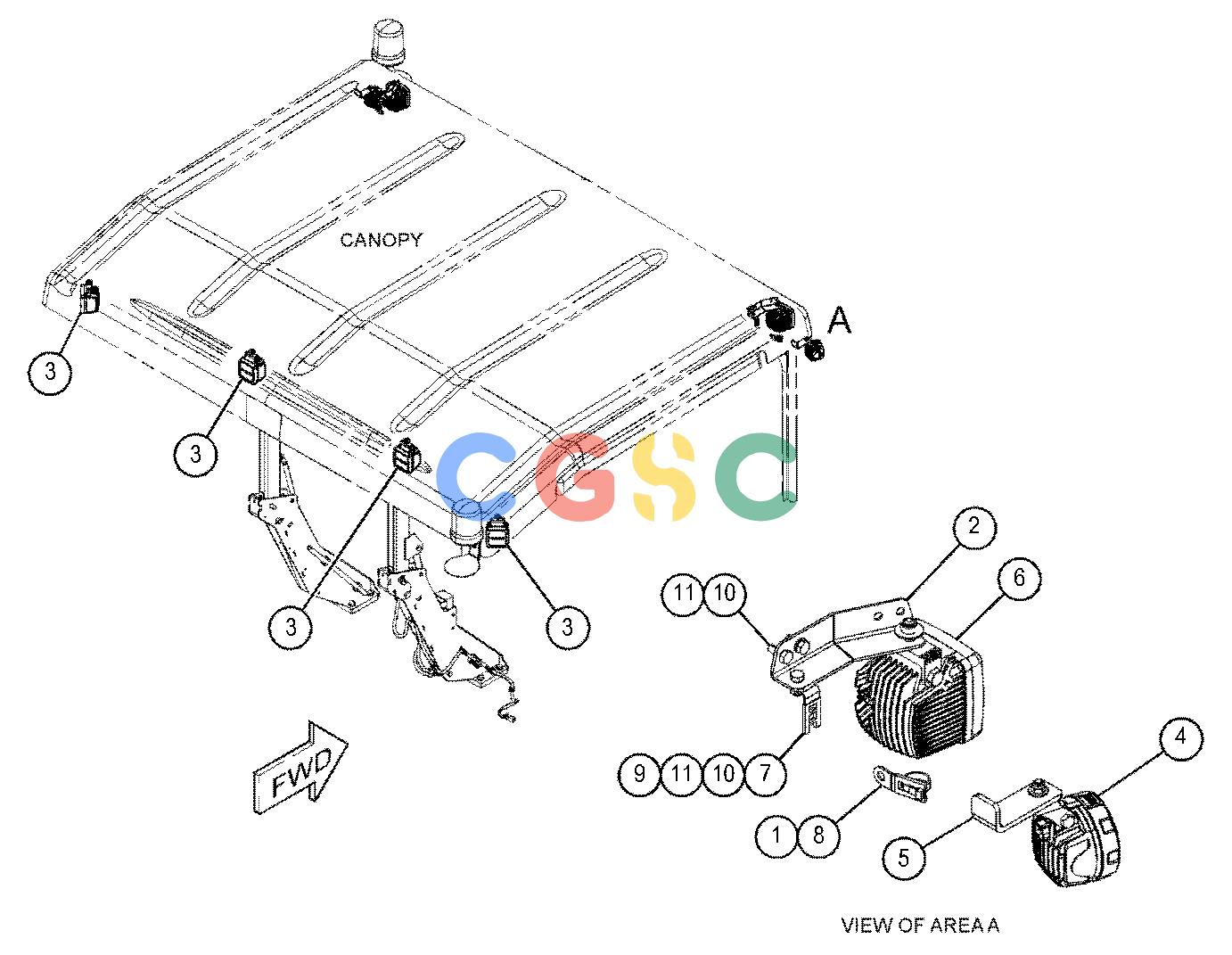

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7K-1181 | [2] | STRAP-CABLE | |
| 2. | 424-3504 | [2] | BRACKET | |
| 3. | 441-0314Y | [4] | LAMP GP-FLOOD(24-VOLT, 50-WATT, LED) | |
| 4. | 479-8450 | [2] | LAMP GP-FLOOD | |
| | | | (EACH INCLUDES) |
| | 3T-0852M | [2] | LOCKNUT(M8X1.25-THD) | |
| | 5P-4116 | [1] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| | 8T-6912M | [1] | BOLT(M8X1.25X50-MM) | |
| 5. | 496-9641 | [2] | BRACKET | |
| 6. | 505-8916 | [2] | LAMP GP-FLOOD(24-VOLT, 40-WATT, LED) | |
| 7. | 132-5789 | [2] | CLIP(LADDER) | |
| 8. | 4P-7581 | [2] | CLIP(LADDER) | |
| 9. | 5C-7261M | [2] | NUT(M8X1.25-THD) | |
| 10. | 8T-4189M | [6] | BOLT(M8X1.25X20-MM) | |
| 11. | 8T-4224 | [8] | WASHER-HARD(8.8X16X2-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
