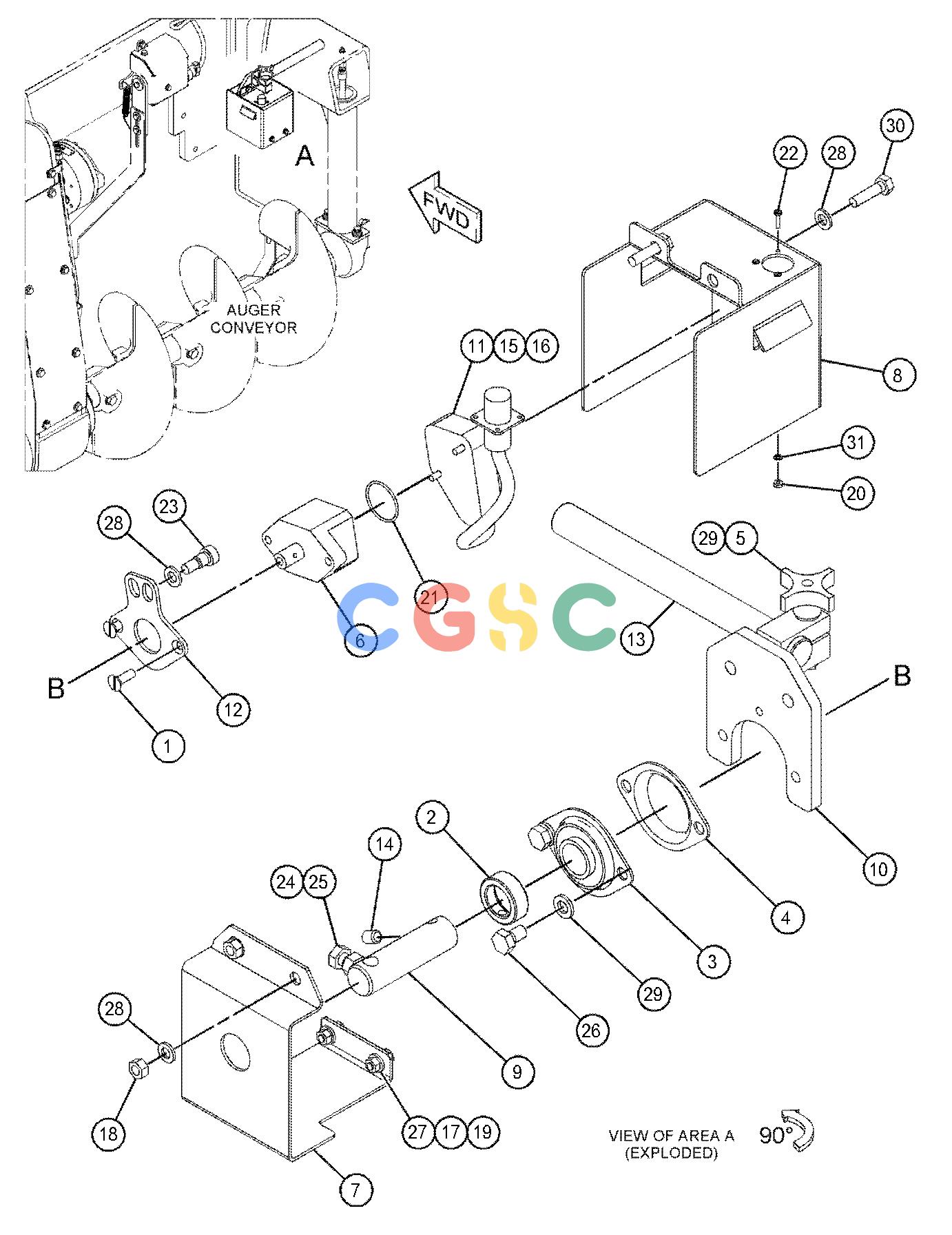

卡特零件查询（AP600F） 424-6958: SENSOR GP-AUGER
广数供应链运营团队, 17 02月, 2025，浏览：
597 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4B-1282 | [2] | SCREW-MACHINE(1/4-20X0.75-IN) | |
| 2. | 5D-3546 | [1] | COLLAR | |
| 3. | 6T-8387 | [1] | BEARING | |
| 4. | 6T-8388 | [2] | FLANGE | |
| 5. | 116-2807 | [1] | KNOB | |
| 6. | 166-0691 | [1] | BLOCK AS-MOUNTING(POSITION SENSOR) | |
| 7. | 167-9664 | [1] | PLATE | |
| 8. | 199-2888 | [1] | COVER | |
| 9. | 199-4165 | [1] | SHAFT | |
| 10. | 199-5112 | [1] | SUPPORT AS | |
| | 8T-9377 | [1] | BOLT(3/8-16X2.25-IN) | |
| 11. | 266-1480Y | [1] | SENSOR GP-POSITION(ROTARY) | |
| 12. | 366-7856 | [1] | ARM(AUGER) | |
| 13. | 441-9581 | [1] | ROD | |
| 14. | 095-1267M | [1] | SETSCREW-SOCKET(M10X1.5-THD) | |
| 15. | 2F-7888 | [2] | SCREW-MACHINE(10-32X1.25-IN) | |
| 16. | 4B-4274 | [2] | WASHER(5.5X13X1.2-MM THK) | |
| 17. | 5C-2890M | [2] | NUT(M6X1-THD) | |
| 18. | 5C-7261M | [2] | NUT(M8X1.25-THD) | |
| 19. | 5C-9553M | [2] | BOLT(M6X1X16-MM) | |
| 20. | 6B-4540 | [3] | NUT(4-40-THD) | |
| 21. | 6V-0894 | [1] | SEAL-O-RING | |
| 22. | 6V-2480 | [3] | SCREW(4-40X0.5-IN) | |
| 23. | 7D-9708 | [1] | BOLT-SPECIAL | |
| 24. | 8T-4133M | [1] | NUT(M10X1.5-THD) | |
| 25. | 8T-4136M | [1] | BOLT(M10X1.5X25-MM) | |
| 26. | 8T-4191M | [2] | BOLT(M10X1.5X16-MM) | |
| 27. | 8T-4205 | [4] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 28. | 8T-4224 | [5] | WASHER-HARD(8.8X16X2-MM THK) | |
| 29. | 8T-4896 | [3] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 30. | 8T-7547M | [2] | BOLT(M8X1.25X30-MM) | |
| 31. | 9B-1117 | [3] | LOCKWASHER | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
