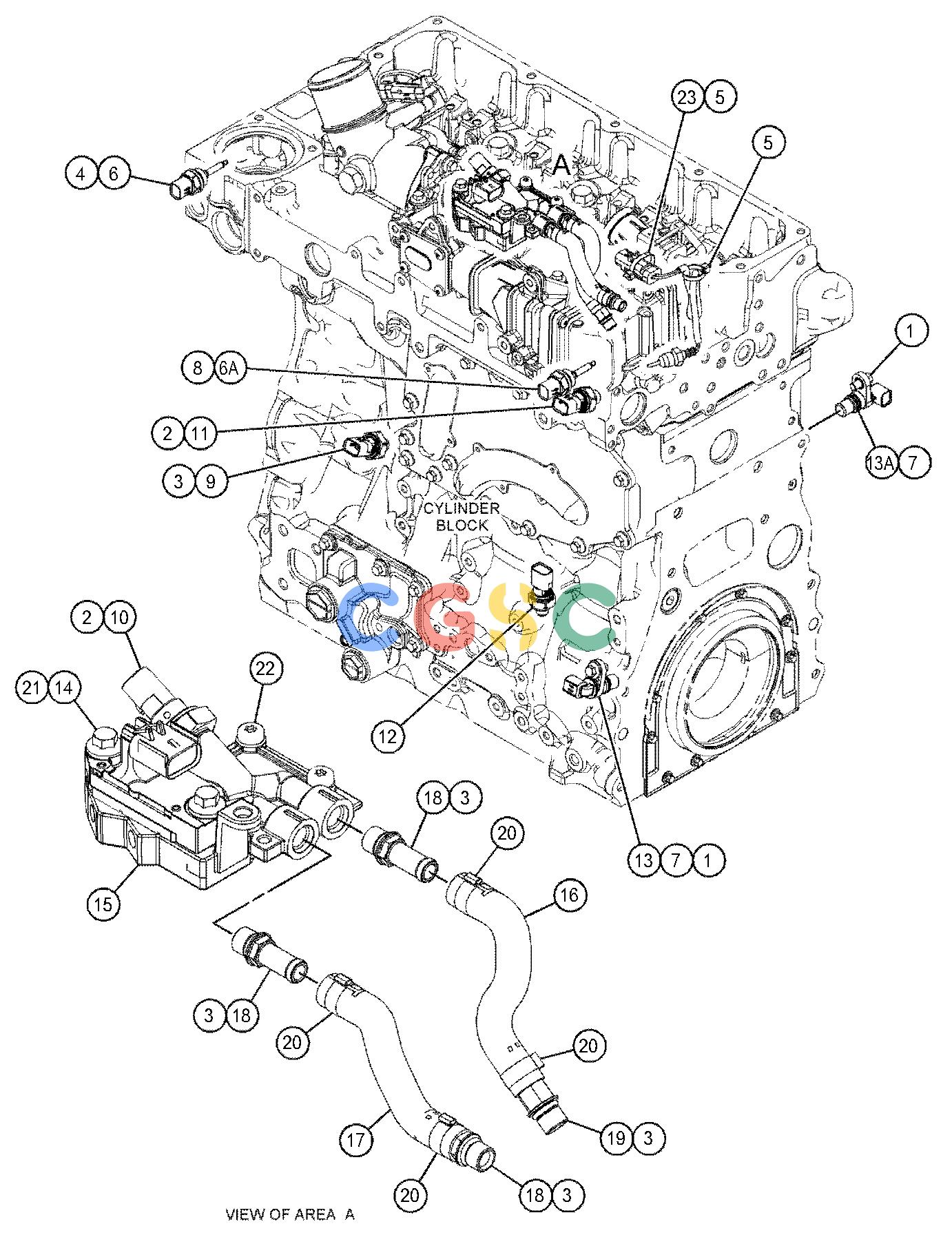

卡特零件查询（AP600F） 433-4681: SENSOR GP-ENGINE
广数供应链运营团队, 17 02月, 2025，浏览：
927 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 124-3815M | [2] | BOLT(M8X1.25X16-MM) | |
| 2. | 199-9252 | [2] | SEAL-O-RING | |
| 3. | 199-9267 | [5] | SEAL-O-RING | |
| 4. | 199-9751 | [1] | SEAL-O-RING | |
| 5. | 217-9039 | [2] | STRAP-CABLE | |
| 6. | 256-6454 | [1] | SENSOR-TEMPERATURE(2-PIN)(COOLANT) | |
| 6A. | 256-6454 | [1] | SENSOR-TEMPERATURE(2-PIN)(INTAKE MANIFOLD AIR) | |
| 7. | 274-1639 | [2] | SEAL | |
| 8. | 276-5603 | [1] | SEAL-O-RING | |
| 9. | 320-3060 | [1] | SENSOR GP-PRESSURE(ENGINE OIL) | |
| 10. | 320-3061 | [1] | SENSOR GP-PRESSURE(NRS INLET) | |
| 11. | 320-3062 | [1] | SENSOR GP-PRESSURE(INTAKE MANIFOLD AIR) | |
| 12. | 320-3063 | [1] | SENSOR GP-PRESSURE(ATMOSPHERIC AIR) | |
| 13. | 311-3857 | [1] | SENSOR-SPEED(PRIMARY, TIMING) | |
| 13A. | 311-3857 | [1] | SENSOR-SPEED(SECONDARY, TIMING) | |
| 14. | 385-1174Y | [1] | SENSOR GP-PRESSURE(NRS OUTLET) | |
| 15. | 432-1403 | [1] | MANIFOLD AS | |
| 16. | J | [1] | HOSE |
| 17. | L | [1] | HOSE |
| 18. | 453-6510 | [3] | UNION | |
| 19. | 453-6997 | [1] | UNION | |
| 20. | 454-8813 | [4] | CLAMP | |
| 21. | 6I-0254M | [2] | BOLT(M8X1.25X30-MM) | |
| 22. | 301-7012M | [4] | SCREW-PAN HEAD(M6X1X20-MM) | |
| 23. | 474-3231 | [1] | SENSOR AS-TEMPERATURE(NOX REDUCTION SYSTEM) | |
| | 281-8802 | [1] | RECEPTACLE AS-CONNECTOR(2-PIN) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 454-3966J | [1] | KIT-HOSE | |
| | 454-3970L | [1] | KIT-HOSE | |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | L | | KIT MARKED L SERVICES PART(S) MARKED L |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
