卡特零件查询（AP600F） 465-1275: SENSOR GP-POSITION
广数供应链运营团队, 17 02月, 2025，浏览：
907 次

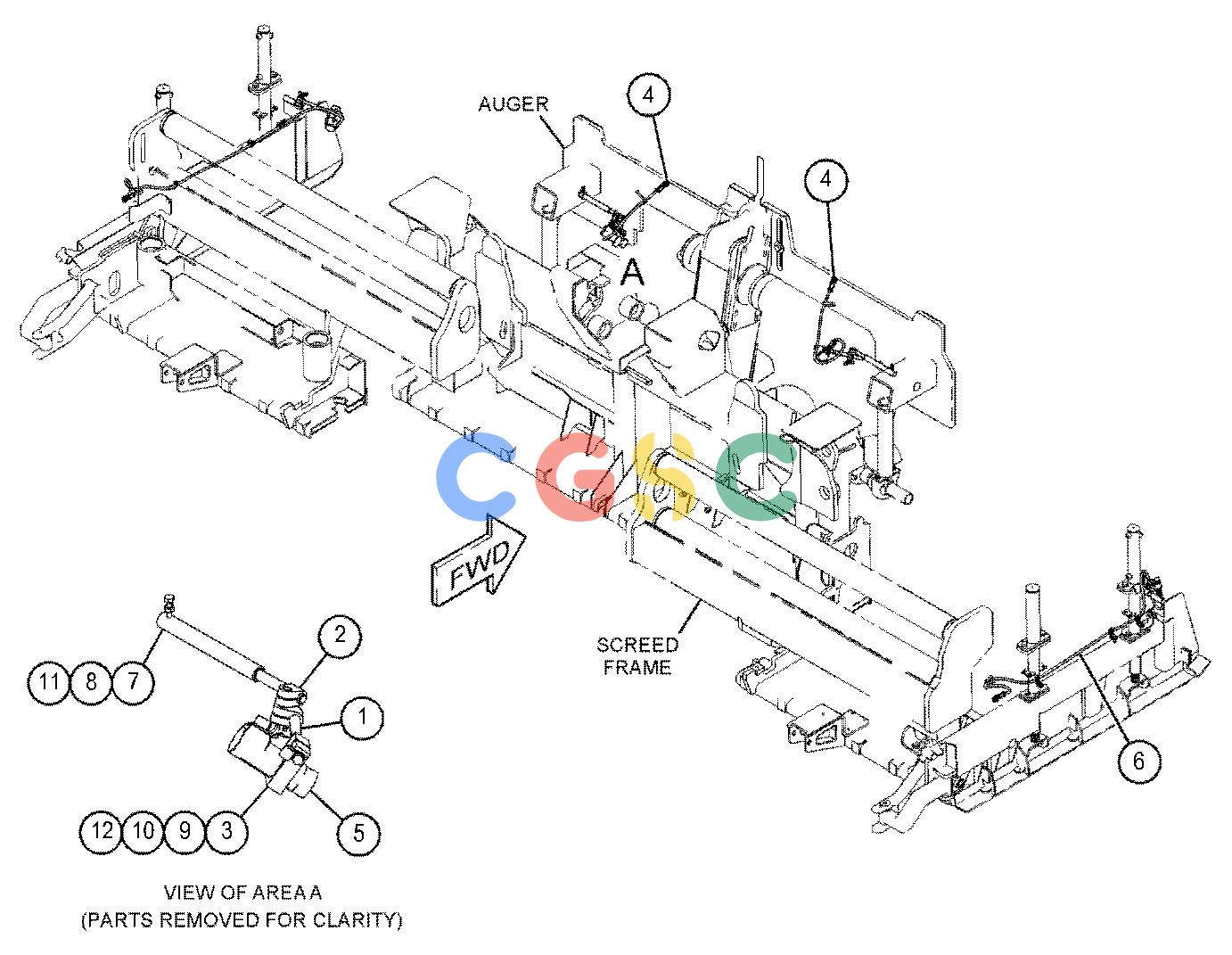

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1G-6811 | [2] | SHAFT | |
| 2. | 6R-4365 | [2] | CLAMP AS | |
| 3. | 110-2124 | [2] | CLAMP | |
| 4. | 239-2111 | [2] | CABLE AS-COILED | |
| | | | (EACH INCLUDES) |
| | 237-7508 | [1] | LINK | |
| | 241-8153 | [2] | PLUG AS | |
| 5. | 526-3545 | [2] | SENSOR(SONIC) | |
| 6. | 416-1467Y | [1] | SENSOR GP-POSITION(MATERIAL FEED) | |
| 7. | 466-1769 | [2] | SUPPORT-SENSOR | |
| 8. | 344-5674M | [2] | NUT(M8X1.25-THD) | |
| 9. | 8M-2770 | [2] | CLIP(LOOP) | |
| 10. | 8T-4896 | [2] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 11. | 8T-7547M | [2] | BOLT(M8X1.25X30-MM) | |
| 12. | 8T-9377 | [2] | BOLT(3/8-16X2.25-IN) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
