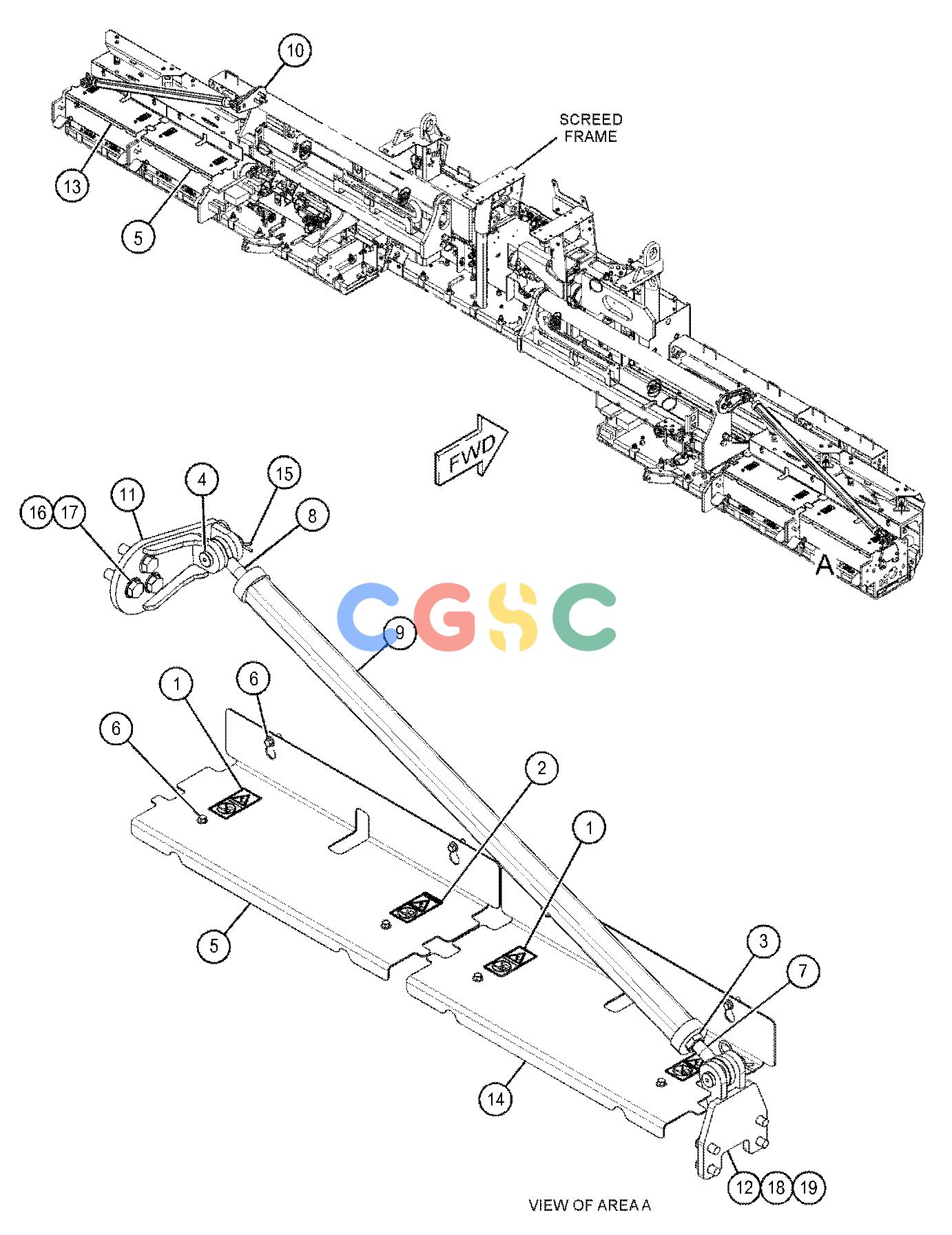

卡特零件查询（AP600F） 553-2622: SUPPORT GP-FRAME
广数供应链运营团队, 17 02月, 2025，浏览：
228 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 242-5054 | [4] | FILM-WARNING(NO STEP) | |
| 2. | 242-5055 | [4] | FILM-WARNING(NO STEP) | |
| 3. | 287-2499M | [2] | NUT(M24X2-THD) | |
| 4. | 398-9707 | [4] | PIN | |
| 5. | 484-7807 | [2] | COVER | |
| 6. | 342-9914M | [16] | BOLT-FLANGE HEAD(M10X1.5X25-MM) | |
| 7. | 393-0624 | [2] | BALL JOINT(LH) | |
| 8. | 393-0625 | [2] | BALL JOINT(RH) | |
| 9. | 417-0677 | [2] | TUBE AS | |
| 10. | 553-2623 | [1] | PLATE AS | |
| 11. | 553-2624 | [1] | PLATE AS | |
| 12. | 553-2625 | [2] | PLATE AS | |
| 13. | 553-2628 | [1] | COVER | |
| 14. | 553-2629 | [1] | COVER | |
| 15. | 5P-8837 | [4] | LOCK PIN | |
| 16. | 8T-4123 | [6] | WASHER(22X35X3.5-MM THK) | |
| 17. | 8T-4141M | [6] | BOLT(M20X2.5X70-MM) | |
| 18. | 8T-4779M | [8] | BOLT(M16X2X35-MM) | |
| 19. | 9X-8257 | [8] | WASHER(17.5X30X3.5-MM THK) | |
| | M | | METRIC PART |
