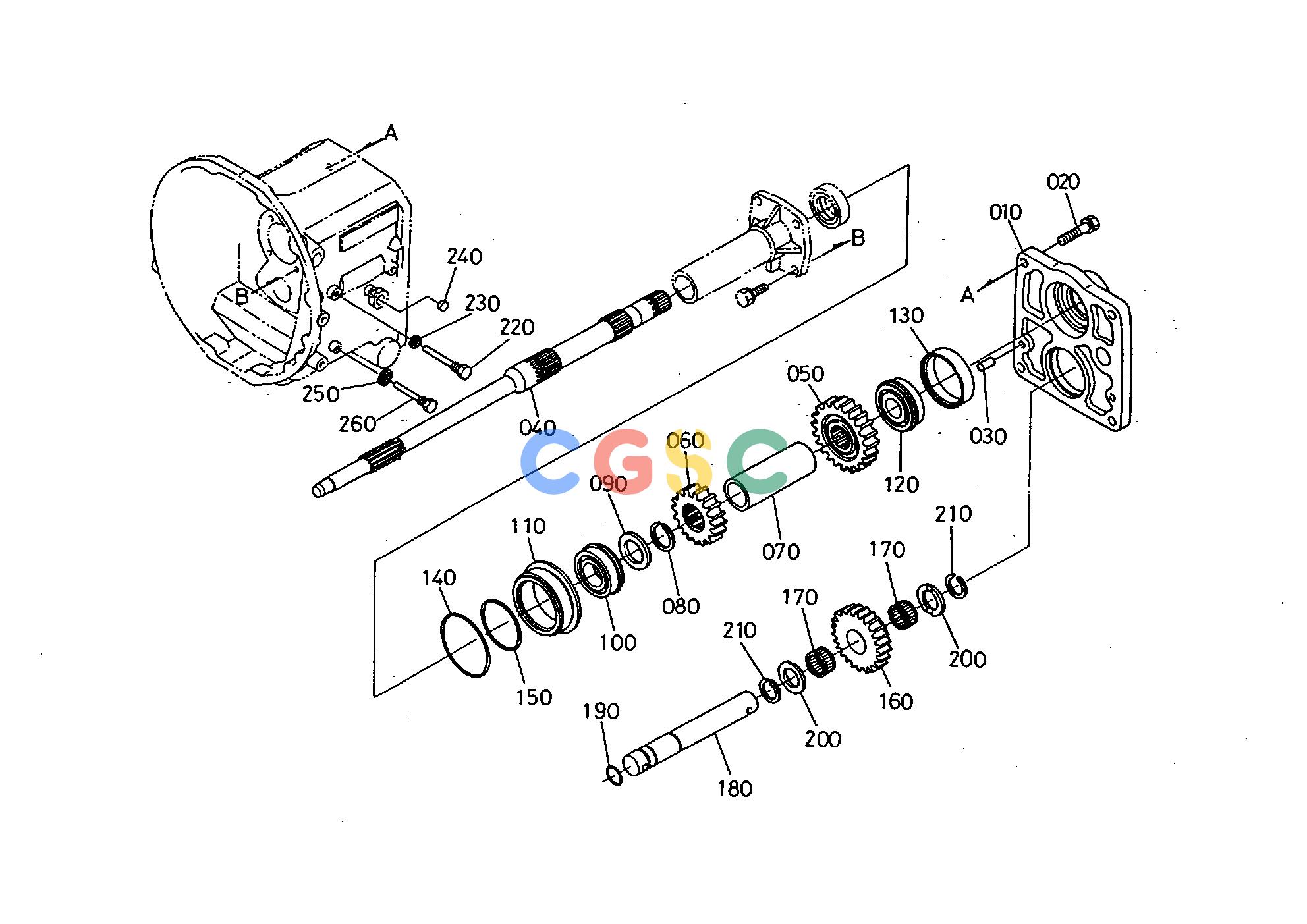

久保田零件查询T03200 1 ST SHAFT (HYDRAULIC SHUTTLE) TRANSMISSIONEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
257 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3253020520
|
[1] |
CASE BEARING
|
6.3360(lbs); 2.880
|
| 020. |
0113351245
|
[4] |
BOLT
|
0.1210(lbs); 0.055
|
| 030. |
0501201018
|
[2] |
PIN STRAIGHT
|
0.0264(lbs); 0.012
|
| 040. |
3253020110
|
[1] |
SHAFT
|
4.5100(lbs); 2.050
|
| 050. |
3253020120
|
[1] |
GEAR
|
1.3420(lbs); 0.610
|
| 060. |
3253020130
|
[1] |
GEAR
|
0.9020(lbs); 0.410
|
| 070. |
3253020140
|
[1] |
COLLAR
|
1.2540(lbs); 0.570
|
| 080. |
3843025540
|
[1] |
CIR-CLIP EXTERNAL
|
0.0088(lbs); 0.004
|
| 090. |
3845021990
|
[1] |
COLLAR
|
0.0000(lbs); 0.000
|
| 100. |
3845025360
|
[1] |
BEARING BALL
|
0.4510(lbs); 0.205
|
| 110. |
3253020150
|
[1] |
COLLAR BEARING
|
0.8800(lbs); 0.400
|
| 120. |
0815106305
|
[1] |
BEARING BALL
|
0.5126(lbs); 0.233
|
| 130. |
3253020160
|
[1] |
COLLAR BEARING
|
0.2530(lbs); 0.115
|
| 140. |
0481150750
|
[1] |
O RING
|
0.0044(lbs); 0.002
|
| 150. |
0481150600
|
[1] |
O RING
|
0.0044(lbs); 0.002
|
| 160. |
3253020370
|
[1] |
GEAR
|
1.3200(lbs); 0.600
|
| 170. |
0882253216
|
[2] |
BEARING NEEDLE
|
0.0572(lbs); 0.026
|
| 180. |
3253020170
|
[1] |
SHAFT
|
1.6060(lbs); 0.730
|
| 190. |
0481100210
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 200. |
3253021760
|
[2] |
COLLAR
|
0.0440(lbs); 0.020
|
| 210. |
3843021550
|
[2] |
CIR-CLIP EXTERNAL
|
0.0110(lbs); 0.005
|
| 220. |
3253023130
|
[1] |
SCREW
|
0.0550(lbs); 0.025
|
| 230. |
0451250080
|
[1] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 240. |
3620021240
|
[1] |
PLUG
|
0.0000(lbs); 0.000
|
| 250. |
0471700800
|
[1] |
WASHER SEAL
|
0.0022(lbs); 0.001
|
| 260. |
3715023120
|
[1] |
SCREW
|
0.0440(lbs); 0.020
|
