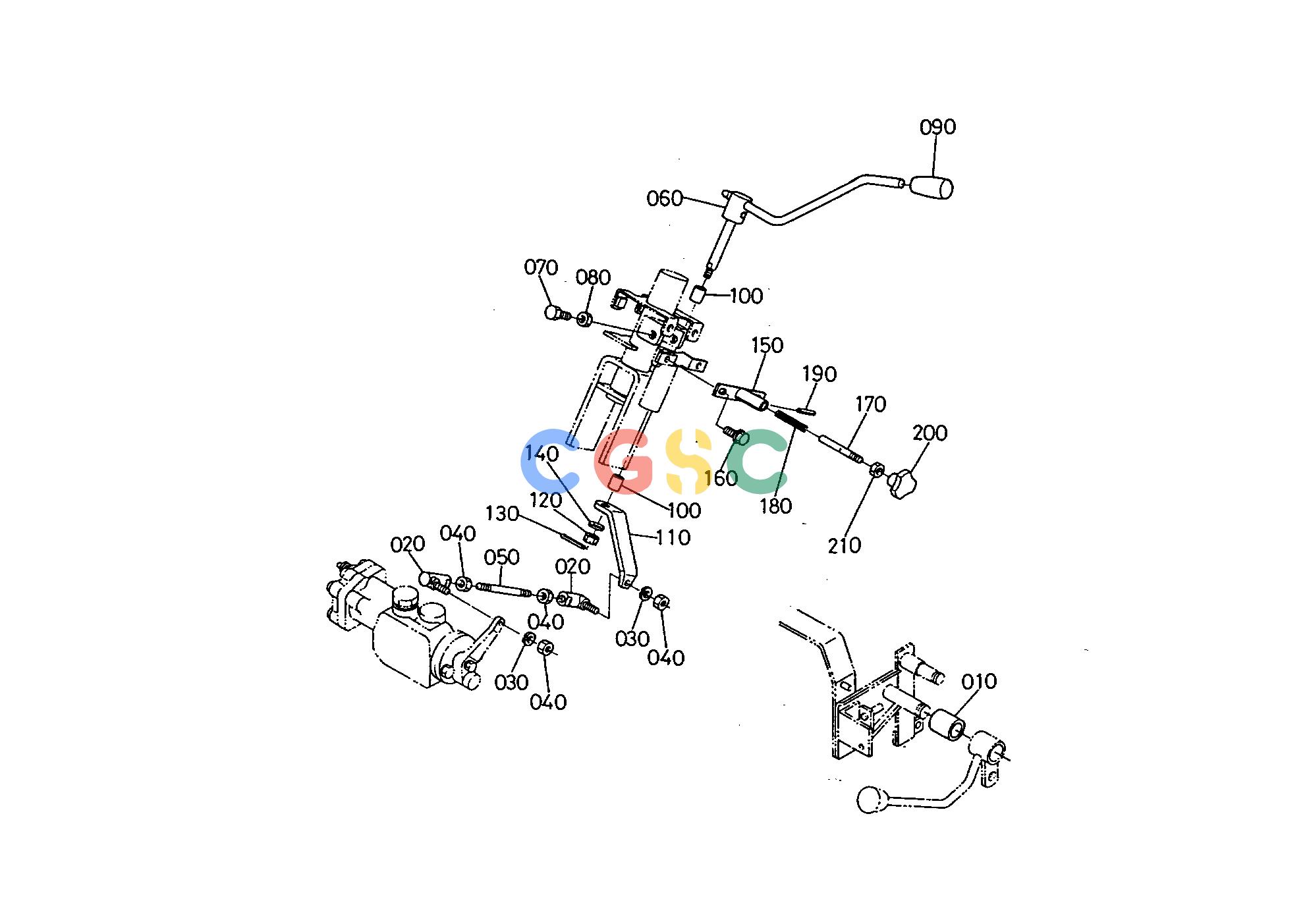

久保田零件查询T04800 SHUTTLE SHIFT LEVER (HYDRAULIC) TRANSMISSIONEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
308 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3253020770
|
[1] |
COLLAR
|
0.1540(lbs); 0.070
|
| 020. |
3537031280
|
[2] |
END ROD
|
0.0550(lbs); 0.025
|
| 030. |
0451250050
|
[2] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 040. |
0205450050
|
[4] |
NUT
|
0.0044(lbs); 0.002
|
| 050. |
3253046360
|
[1] |
ROD
|
0.0220(lbs); 0.010
|
| 060. |
3253046410
|
[1] |
LEVER SHUTTLE
|
0.7040(lbs); 0.320
|
| 070. |
0117351025
|
[2] |
BOLT
|
0.0462(lbs); 0.021
|
| 080. |
0217650100
|
[2] |
NUT
|
0.0110(lbs); 0.005
|
| 090. |
5561131460
|
[1] |
GRIP LEVER
|
0.0660(lbs); 0.030
|
| 100. |
3253046420
|
[2] |
BUSH
|
0.0000(lbs); 0.000
|
| 110. |
3253046460
|
[1] |
LEVER
|
0.2420(lbs); 0.110
|
| 120. |
0231250080
|
[1] |
NUT
|
0.0088(lbs); 0.004
|
| 130. |
0551150218
|
[1] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 140. |
0401250080
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 150. |
3253046470
|
[1] |
GUIDE LOCK
|
0.1320(lbs); 0.060
|
| 160. |
0175450820
|
[2] |
BOLT FLANGE
|
0.0330(lbs); 0.015
|
| 170. |
3253046480
|
[1] |
PIN LOCK
|
0.0440(lbs); 0.020
|
| 180. |
3253046490
|
[1] |
SPRING
|
0.0022(lbs); 0.001
|
| 190. |
0541100210
|
[1] |
PIN SPRING
|
0.0022(lbs); 0.001
|
| 200. |
0282000060
|
[1] |
NUT
|
0.0264(lbs); 0.012
|
| 210. |
0201250060
|
[1] |
NUT
|
0.0044(lbs); 0.002
|
