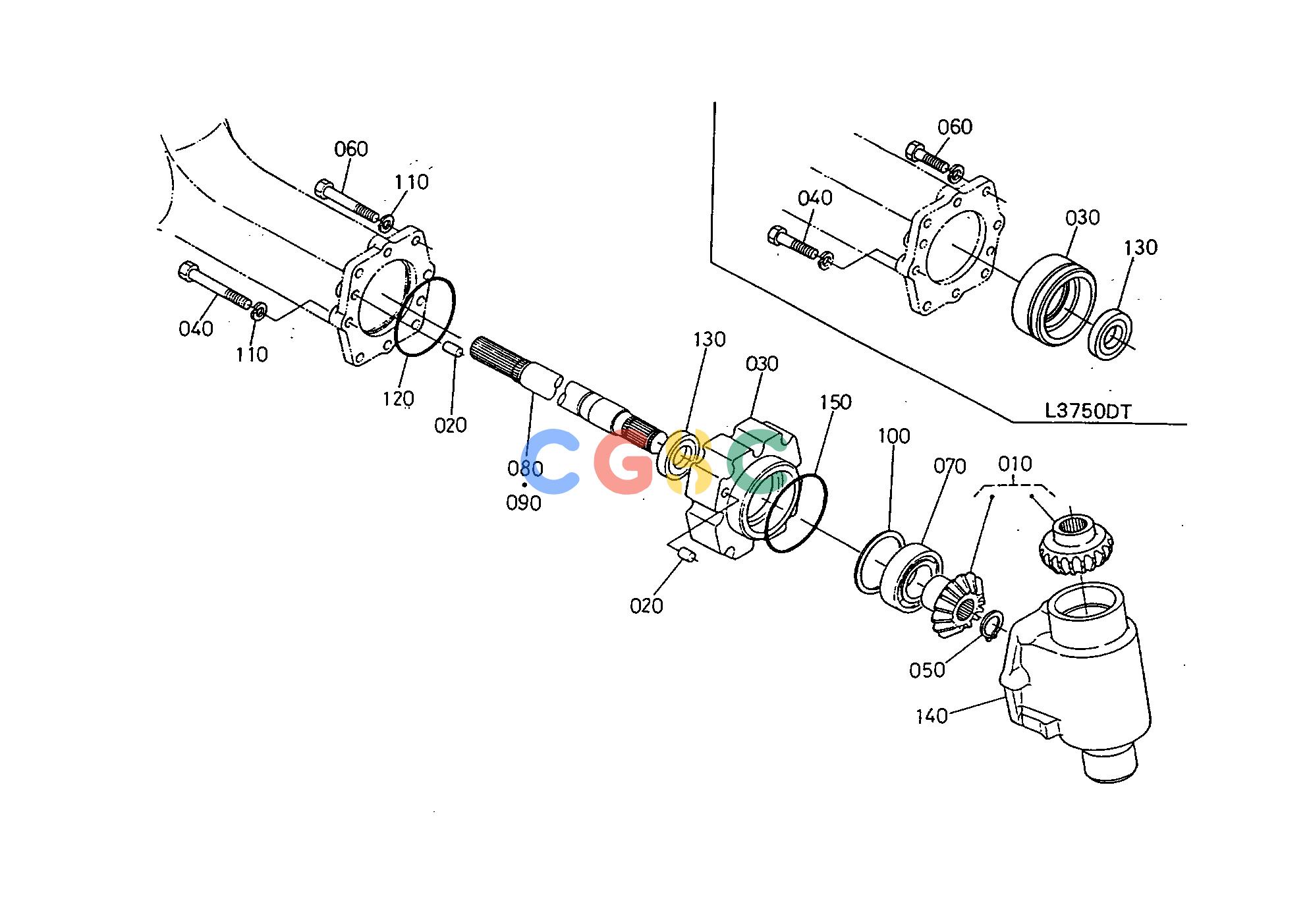

久保田零件查询T10200 DIFF.GEAR SHAFT FRONT AXLE DRIVEEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
664 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3258095230
|
[2] |
ASSY GEAR BEVEL 13-1
|
4.4000(lbs); 2.000
|
| 020. |
3730026530
|
[4] |
PIN STRAIGHT
|
0.0660(lbs); 0.030
|
| 030. |
3257043510
|
[2] |
CASE BEARING
|
2.0900(lbs); 0.950
|
| 040. |
0113351245
|
[8] |
BOLT
|
0.1210(lbs); 0.055
|
| 050. |
0461200300
|
[2] |
CIR-CLIP EXTERNAL
|
0.0066(lbs); 0.003
|
| 060. |
0113351235
|
[8] |
BOLT
|
0.0946(lbs); 0.043
|
| 070. |
3258043550
|
[2] |
BEARING BALL
|
0.8800(lbs); 0.400
|
| 080. |
3257043520
|
[1] |
SHAFT DIFF GEAR RH
|
7.9200(lbs); 3.600
|
| 090. |
3257043530
|
[1] |
SHAFT DIFF GEAR LH
|
7.4800(lbs); 3.400
|
| 100. |
3258043560
|
[2] |
SHIM
|
0.0330(lbs); 0.015
|
| 100. |
3258043570
|
[2] |
SHIM
|
0.0330(lbs); 0.015
|
| 100. |
3258043580
|
[2] |
SHIM
|
0.0440(lbs); 0.020
|
| 100. |
3258043590
|
[2] |
SHIM
|
0.0550(lbs); 0.025
|
| 130. |
0940457012
|
[2] |
SEAL OIL
|
0.0770(lbs); 0.035
|
| 140. |
3258043610
|
[2] |
CASE GEAR
|
17.1600(lbs); 7.800
|
| 150. |
0481111050
|
[2] |
O RING
|
0.0044(lbs); 0.002
|
