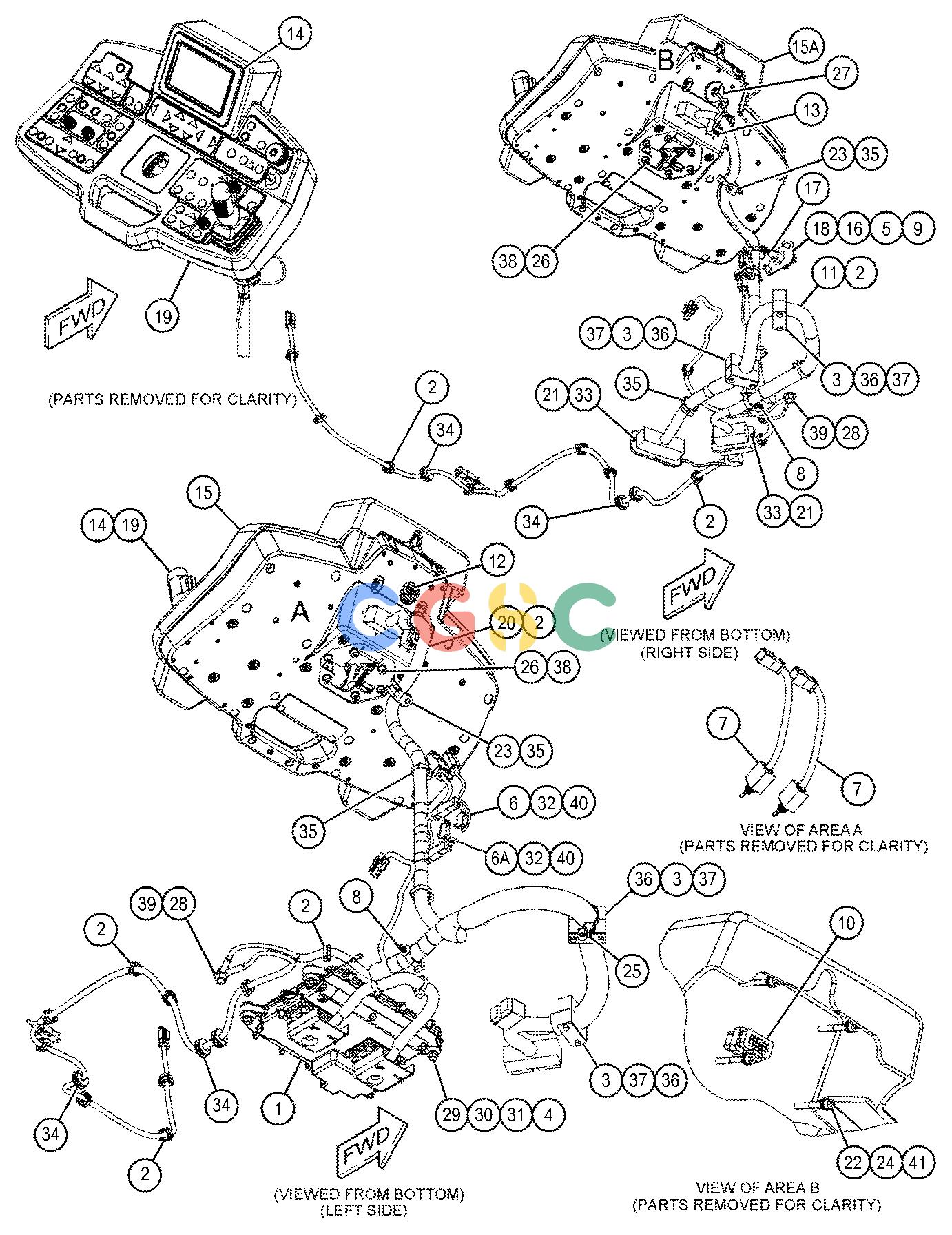

卡特零件查询（AP600F） 419-6171: CONSOLE GP-OPERATOR
广数供应链运营团队, 17 02月, 2025，浏览：
517 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 455-9580 | [1] | CONTROL GP-UNPROGRAMMED(ELECTRONIC) | |
| 2. | 3S-2093 | [40] | STRAP-CABLE | |
| 3. | 7R-7951 | [4] | PLATE | |
| 4. | 8T-9655 | [8] | MOUNT-ISOLATION | |
| 5. | 9X-2041M | [2] | SCREW-TRUSS HEAD(M10X1.5X20-MM) | |
| 6. | 231-1389 | [1] | RESISTOR AS(FRONT) | |
| 6A. | 231-1389 | [1] | RESISTOR AS(REAR) | |
| | | | (EACH RESISTOR AS INCLUDES) |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 7. | 308-3527 | [2] | SWITCH AS-TOGGLE(ACTUATOR) | |
| | | | (EACH INCLUDES) |
| | 102-8805 | [1] | KIT-RECEPTACLE(6-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 8T-8729 | [6] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3633 | [1] | RING-LOCKING | |
| 8. | 327-0325 | [2] | STRAP-CABLE | |
| 9. | 344-7618 | [1] | COVER-SEAL | |
| 10. | 351-8647 | [2] | PLUG AS-CONNECTOR(12-PIN) | |
| | | | (EACH INCLUDES) |
| | 8T-8737 | [12] | PLUG-SEAL | |
| | 241-8834 | [1] | PLUG AS-CONNECTOR(12-PIN) | |
| | 455-0709 | [1] | SEAL-CONNECTOR | |
| 11. | 441-9991Y | [1] | HARNESS AS-PANEL(RH) | |
| 12. | 448-1882 | [1] | PLUG AS-CONNECTOR | |
| | 8T-8737 | [12] | PLUG-SEAL | |
| | 239-7356 | [1] | PLUG AS-CONNECTOR(12-PIN) | |
| | 455-0709 | [1] | SEAL-CONNECTOR | |
| 13. | 462-6495 | [1] | PLUG AS | |
| | 8T-8737 | [8] | PLUG-SEAL | |
| | 155-2265 | [1] | KIT-CONNECTING PLUG(8-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE, & INTERFACE SEAL) |
| 14. | 464-6803 | [2] | CONTROL GP-ELECTRONIC | |
| 15. | 528-2427 | [1] | GUARD GP-VANDALISM(LH) | |
| 15A. | 528-2427 | [1] | GUARD GP-VANDALISM(RH) | |
| | | | (EACH GUARD GP INCLUDES) |
| | 226-0294J | [2] | LOCK AS | |
| | 226-0338 | [2] | CAM | |
| 16. | 535-6869 | [1] | FILM-IDENTIFICATION(USB) | |
| 17. | 535-6932 | [1] | CABLE AS | |
| | 281-3396 | [1] | PLUG AS-CONNECTOR(12-PIN) | |
| | 455-0709 | [1] | SEAL-CONNECTOR | |
| | 169-0705 | [7] | SEAL | |
| | 9X-3402 | [5] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | | | -OR- |
| | 126-1768 | [5] | SOCKET-CONNECTOR(14-GA TO 16-GA) | |
| | 125-7874E | | TUBE-HEAT SHRINK(5.72-MM DIA)(5-CM) | |
| | 125-7876E | | TUBE-HEAT SHRINK(17.78-MM DIA)(3-CM) | |
| | 339-5431BH | | WIRE(18-GA, BLACK) | |
| 18. | 535-6992 | [1] | PLATE | |
| 19. | 539-0090Y | [2] | PANEL GP-INSTRUMENT | |
| 20. | 539-0548Y | [1] | HARNESS AS-CONSOLE(LH) | |
| 21. | 096-6166 | [4] | WASHER-HARD(4.5X9X1-MM THK) | |
| 22. | 105-3486M | [8] | BOLT-SOCKET HEAD(M6X1X50-MM) | |
| 23. | 132-5789 | [2] | CLIP(LADDER) | |
| 24. | 158-0591 | [8] | LOCKWASHER | |
| 25. | 177-2215 | [1] | STRAP-DUAL CLAMP | |
| 26. | 209-8296M | [12] | BOLT-SOCKET HEAD(M8X1.25X25-MM) | |
| 27. | 2V-8259 | [1] | GROMMET | |
| 28. | 4B-4280 | [2] | WASHER(13.5X27X2.5-MM THK) | |
| 29. | 5C-7261M | [4] | NUT(M8X1.25-THD) | |
| 30. | 5P-4116 | [4] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 31. | 6I-1418 | [4] | SPACER(8.2X12.7X28.7-MM THK) | |
| 32. | 6V-9669M | [4] | SCREW-MACHINE(M3X0.5X8-MM) | |
| 33. | 6V-9672M | [4] | SCREW-MACHINE(M4X0.7X16-MM) | |
| 34. | 7G-7053 | [6] | GROMMET | |
| 35. | 7K-1181 | [13] | STRAP-CABLE | |
| 36. | 7R-7940 | [8] | CLAMP | |
| 37. | 7X-2535M | [8] | BOLT(M6X1X60-MM) | |
| 38. | 8T-4224 | [12] | WASHER-HARD(8.8X16X2-MM THK) | |
| 39. | 8T-4244M | [2] | NUT(M12X1.75-THD) | |
| 40. | 9B-1117 | [4] | LOCKWASHER | |
| 41. | 9X-8256 | [8] | WASHER(6.6X12X2-MM THK) | |
| | B | | USE AS REQUIRED |
| | E | | ORDER BY THE CENTIMETER |
| | H | | ORDER BY THE DECIMETER |
| | J | | REQUIRES CORPORATE KEY |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
