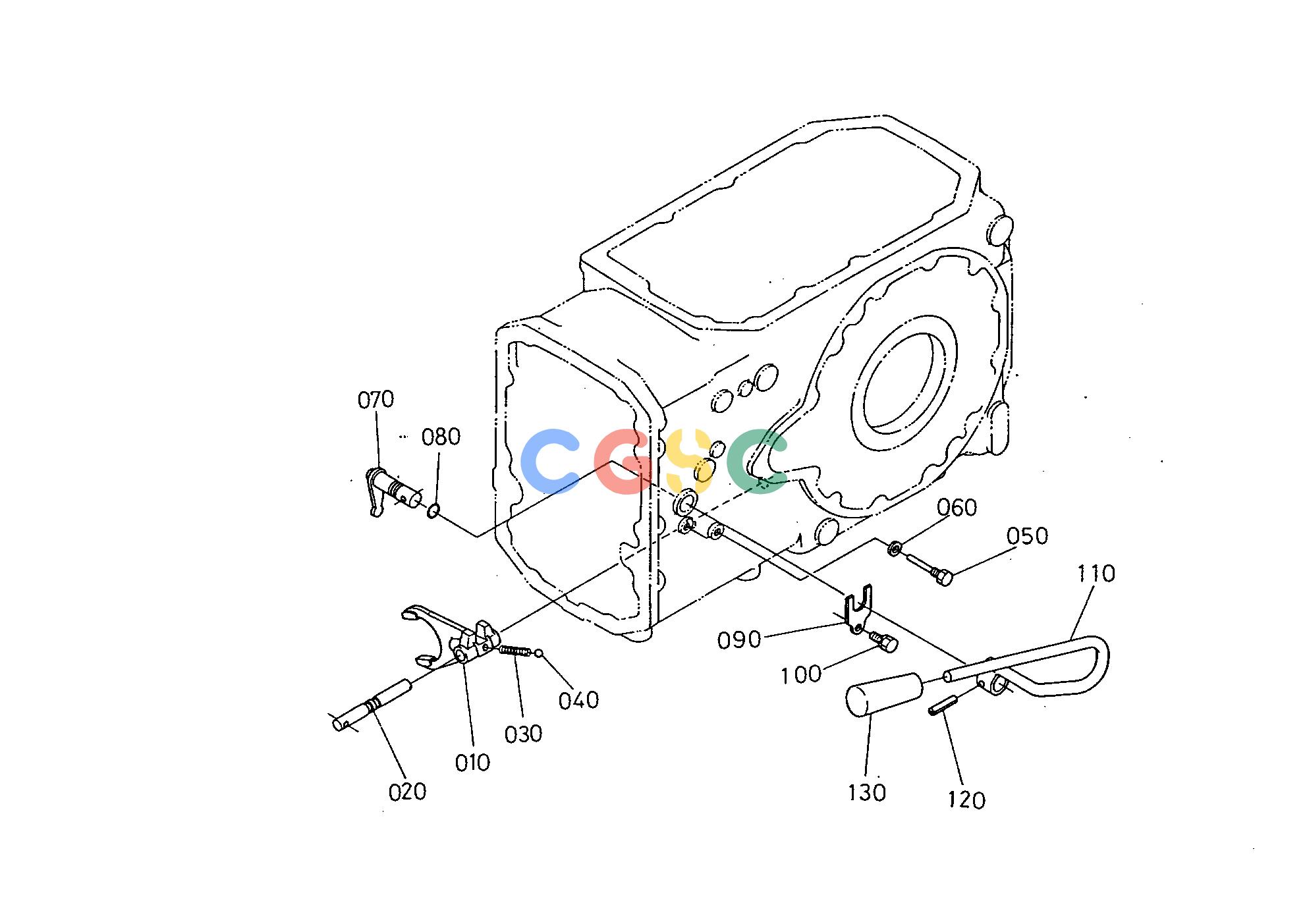

久保田零件查询T11000 FRONT WHEEL DRIVE LEVER FRONT AXLE DRIVEEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
606 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3258044410
|
[1] |
FORK SHIFT
|
0.5500(lbs); 0.250
|
| 020. |
3258044420
|
[1] |
ROD FORK
|
0.1980(lbs); 0.090
|
| 030. |
6258118230
|
[1] |
SPRING STOPPER
|
0.0220(lbs); 0.010
|
| 040. |
0771501605
|
[1] |
BALL
|
0.0066(lbs); 0.003
|
| 050. |
3715023120
|
[1] |
SCREW
|
0.0440(lbs); 0.020
|
| 060. |
0471700800
|
[1] |
WASHER SEAL
|
0.0022(lbs); 0.001
|
| 070. |
3253024820
|
[1] |
LEVER SHIFT
|
0.3916(lbs); 0.178
|
| 080. |
0481100150
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 090. |
3415024350
|
[1] |
STOPPER LEVER
|
0.0220(lbs); 0.010
|
| 100. |
0112350820
|
[1] |
BOLT
|
0.0242(lbs); 0.011
|
| 110. |
3258044430
|
[1] |
LEVER CHANGE
|
0.0000(lbs); 0.000
|
| 120. |
0541100640
|
[1] |
PIN SPRING
|
0.0132(lbs); 0.006
|
| 130. |
0691400140
|
[1] |
GRIP LEVER
|
0.0308(lbs); 0.014
|
