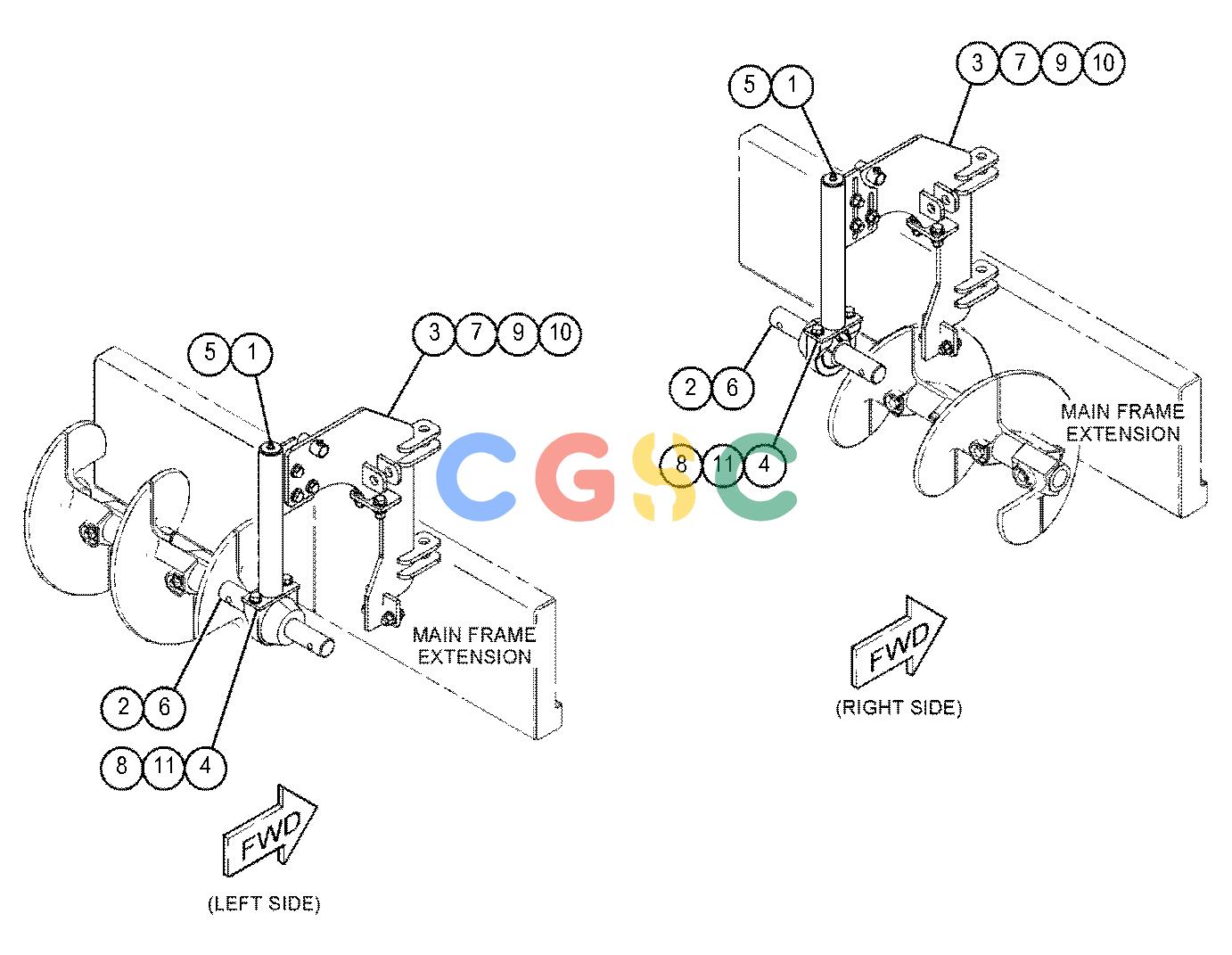

卡特零件查询（AP600F） 416-4135: BEARING GP-AUGER
广数供应链运营团队, 17 02月, 2025，浏览：
770 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5P-9982 | [2] | FITTING-GREASE | |
| 2. | 106-9718Y | [2] | BEARING GP-AUGER | |
| 3. | 527-5842C | [2] | SUPPORT AS-BEARING | |
| 4. | 431-6363 | [2] | TUBE AS | |
| 5. | 431-6364 | [2] | PIPE | |
| 6. | 515-4036 | [2] | SHAFT | |
| 7. | 7X-0515 | [28] | WASHER-HARD(17X35X5-MM THK) | |
| 8. | 8T-4122 | [4] | WASHER-HARD(17X32X3.5-MM THK) | |
| 9. | 8T-4132M | [14] | NUT(M16X2-THD) | |
| 10. | 8T-4193M | [14] | BOLT(M16X2X50-MM) | |
| 11. | 8T-9393 | [4] | BOLT(5/8-11X1.5-IN) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
