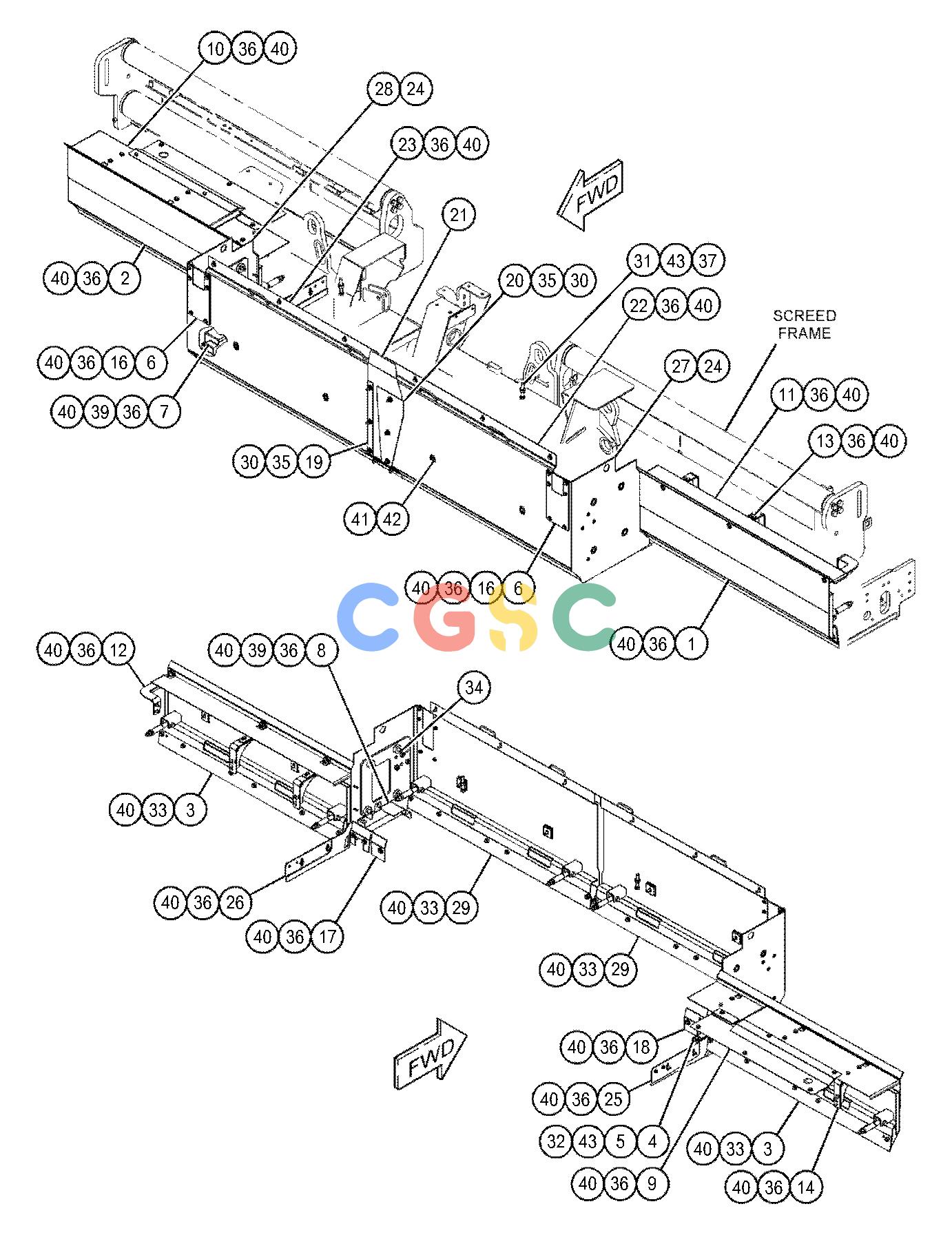

卡特零件查询（AP600F） 390-4828: DEFLECTOR GP
广数供应链运营团队, 17 02月, 2025，浏览：
635 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 392-9145 | [1] | DEFLECTOR AS(LH) | |
| 2. | 392-9146 | [1] | DEFLECTOR AS(RH) | |
| | | | (EACH DEFLECTOR AS INCLUDES) |
| | 8T-3490M | [7] | NUT-WELD(M10X1.5-THD) | |
| 3. | 392-9159 | [2] | BLADE | |
| 4. | 394-7240 | [8] | ROD AS-ADJUSTING | |
| 5. | 422-4637M | [8] | NUT(M30X2-THD) | |
| 6. | 446-5662 | [2] | PLATE-COVER | |
| 7. | 451-1032 | [1] | COVER(RH) | |
| 8. | 451-1033 | [1] | COVER(LH) | |
| 9. | 451-5861 | [1] | COVER | |
| 10. | 459-9392 | [1] | COVER AS | |
| | 8T-3490M | [3] | NUT-WELD(M10X1.5-THD) | |
| 11. | 459-9394 | [1] | COVER AS | |
| 12. | 459-9399 | [1] | BRACKET AS | |
| | 9R-2821M | [1] | BOSS(M10X1.5X15-MM) | |
| 13. | 465-7427 | [2] | BRACKET AS | |
| | | | (EACH INCLUDES) |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| 14. | 465-7458 | [5] | BRACKET AS | |
| | | | (EACH INCLUDES) |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| 16. | 474-4538 | [2] | COVER-RUBBER | |
| 17. | 476-4068 | [1] | PLATE AS | |
| 18. | 476-4069 | [1] | PLATE AS | |
| 19. | 476-5422 | [1] | PLATE | |
| 20. | 476-5423 | [1] | PLATE | |
| 21. | 476-5425 | [1] | COVER | |
| 22. | 477-1246 | [1] | DEFLECTOR AS(LH) | |
| 23. | 477-1247 | [1] | DEFLECTOR AS(RH) | |
| | | | (EACH DEFLECTOR AS INCLUDES) |
| | 8T-3490M | [12] | NUT-WELD(M10X1.5-THD) | |
| | 112-9073M | [4] | STUD-WELD(M12X1.75X21.1-MM) | |
| 24. | 479-6661M | [8] | SETSCREW(M16X2X30-MM) | |
| 25. | 523-9636 | [1] | COVER AS(LH) | |
| 26. | 523-9637 | [1] | COVER AS(RH) | |
| | | | (EACH COVER AS INCLUDES) |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| 27. | 481-8619 | [1] | PLATE AS(LH) | |
| 28. | 481-8620 | [1] | PLATE AS(RH) | |
| | | | (EACH PLATE AS INCLUDES) |
| | 355-8941M | [4] | NUT-WELD(M16X2-THD) | |
| 29. | 481-8741 | [2] | BLADE | |
| 30. | 129-3180M | [8] | LOCKNUT(M12X1.75-THD) | |
| 31. | 170-8555M | [2] | BOLT(M16X2X90-MM) | |
| 32. | 176-5311M | [8] | LOCKNUT(M16X2-THD) | |
| 33. | 198-4777 | [24] | WASHER-HARD(11X25X10-MM THK) | |
| 34. | 342-9917M | [8] | BOLT-FLANGE HEAD(M16X2X40-MM) | |
| 35. | 5P-1076 | [8] | WASHER-HARD(13.5X30X4-MM THK) | |
| 36. | 7X-7729C | [67] | WASHER(11X25X3-MM THK) | |
| 37. | 8T-4132M | [2] | NUT(M16X2-THD) | |
| 39. | 8T-4191M | [2] | BOLT(M10X1.5X16-MM) | |
| 40. | 8T-4195M | [89] | BOLT(M10X1.5X30-MM) | |
| 41. | 8T-4196M | [4] | BOLT(M10X1.5X35-MM) | |
| 42. | 8T-4222 | [4] | WASHER-PLATED(11X32X2.5-MM THK) | |
| 43. | 9X-8257 | [10] | WASHER(17.5X30X3.5-MM THK) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
