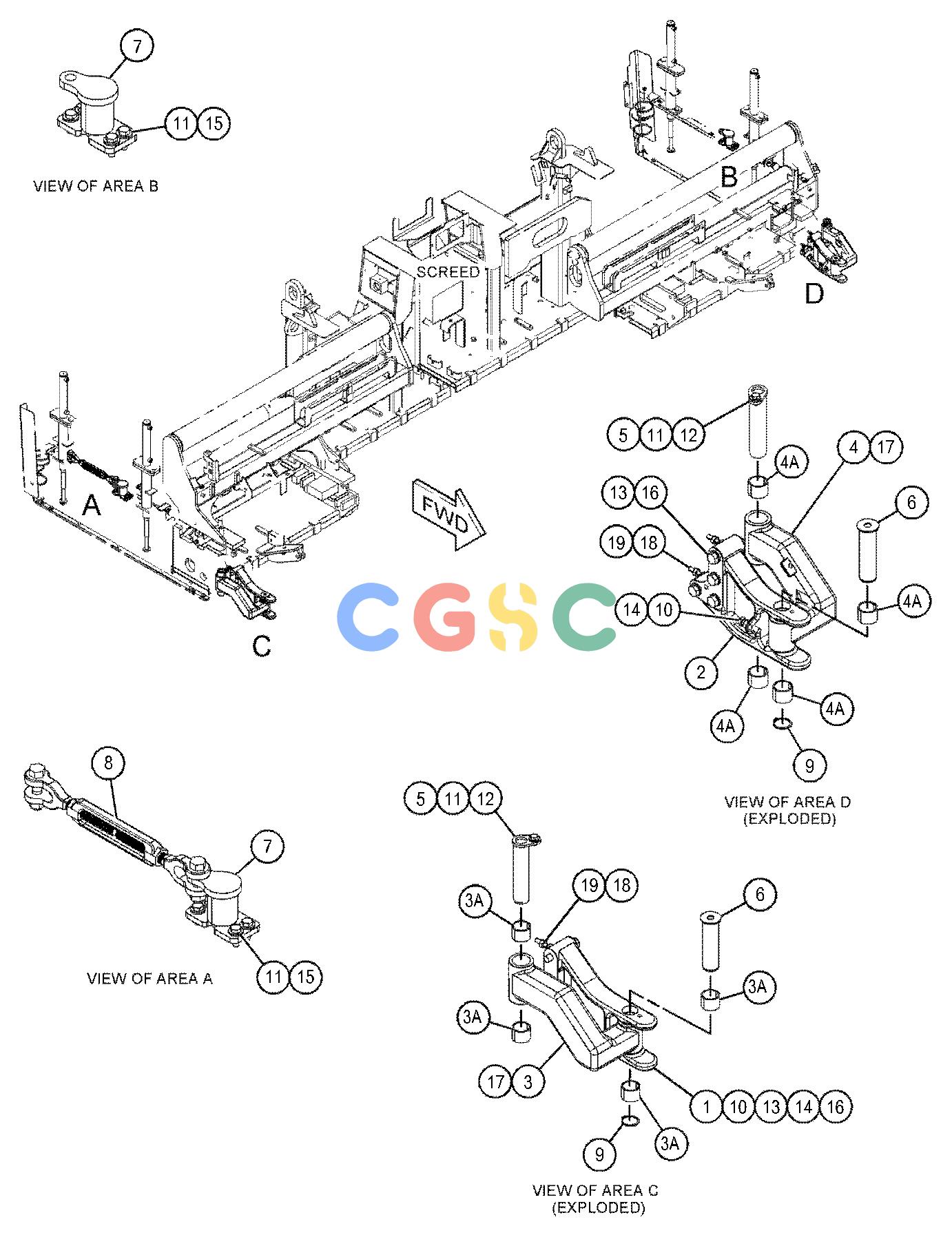

卡特零件查询（AP600F） 443-3557: HINGE GP-END GATE
广数供应链运营团队, 17 02月, 2025，浏览：
1009 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 443-3559 | [1] | BRACKET(LH) | |
| 2. | 443-3560 | [1] | BRACKET(RH) | |
| 3. | 443-3563 | [1] | LINK AS | |
| 3A. | 203-3904 | [4] | BEARING | |
| 4. | 443-3564 | [1] | LINK AS | |
| 4A. | 203-3904 | [4] | BEARING | |
| 5. | 443-4678 | [2] | PIN AS | |
| 6. | 458-9620 | [2] | PIN AS | |
| 7. | 487-3102 | [2] | MOUNT AS | |
| 8. | 462-8009 | [1] | LINK AS | |
| 9. | 095-0924 | [2] | RING-RETAINING | |
| 10. | 329-3356M | [2] | NUT(M12X1.75-THD) | |
| 11. | 7X-7729 | [10] | WASHER(11X25X3-MM THK) | |
| 12. | 8T-4137M | [2] | BOLT(M10X1.5X20-MM) | |
| 13. | 8T-4175M | [8] | BOLT(M16X2X90-MM) | |
| 14. | 8T-4194M | [2] | BOLT(M12X1.75X50-MM) | |
| 15. | 8T-4195M | [8] | BOLT(M10X1.5X30-MM) | |
| 16. | 9X-8257 | [8] | WASHER(17.5X30X3.5-MM THK) | |
| 17. | 4E-9423BM | [8] | WASHER(39.78X57.2X1.85-MM THK) | |
| 18. | 8T-4186M | [4] | BOLT(M10X1.5X40-MM) | |
| 19. | 344-5675M | [4] | NUT(M10X1.5-THD) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
