卡特零件查询（AP600F） 434-0022: FLASHING GP
广数供应链运营团队, 17 02月, 2025，浏览：
693 次

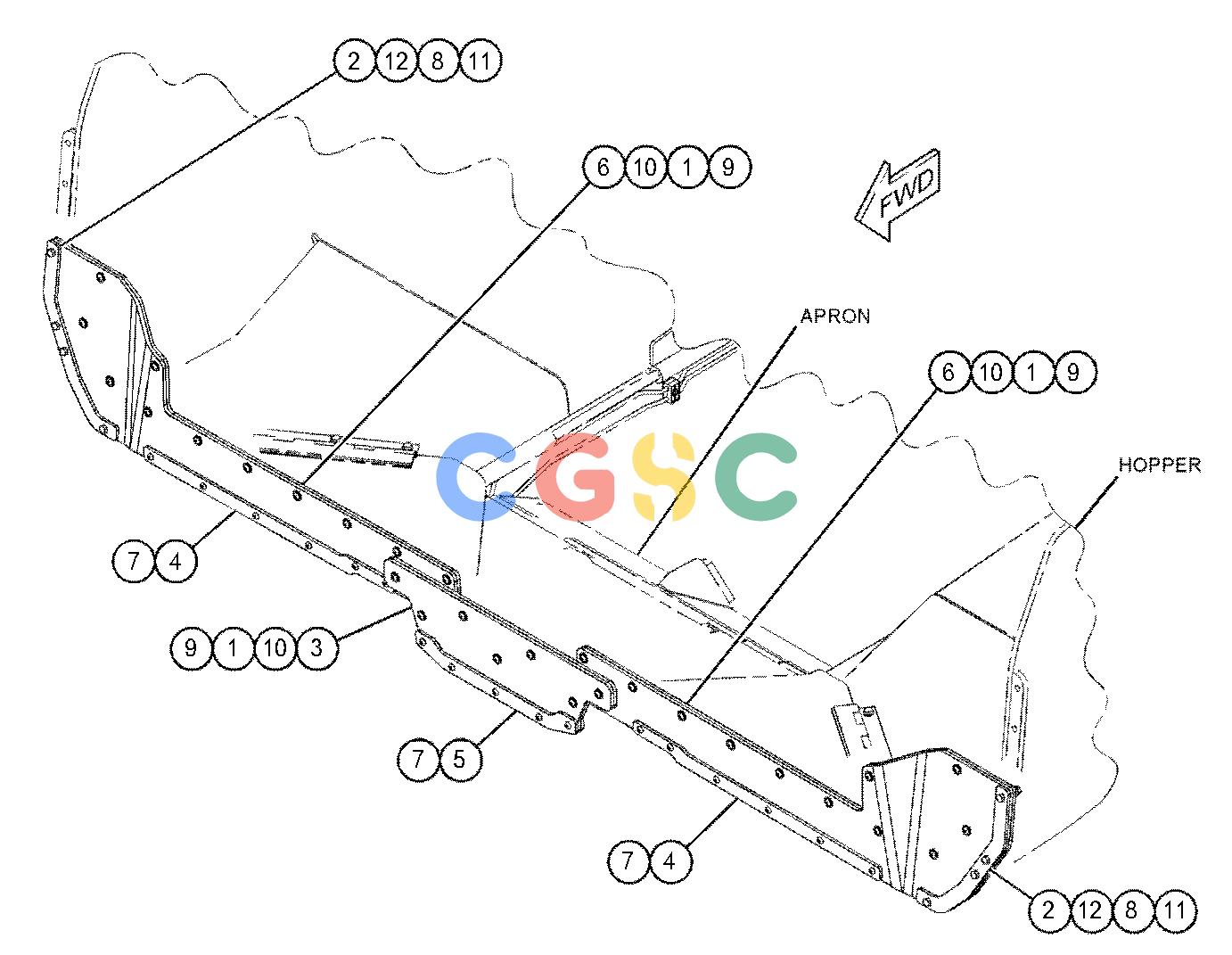

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 302-3372M | [31] | NUT-WELD(M10X1.5-THD) | |
| 2. | 428-8468 | [2] | PLATE | |
| 3. | 434-0007 | [1] | FLASHING AS | |
| 4. | 434-0008 | [2] | PLATE | |
| 5. | 434-0025 | [1] | PLATE | |
| 6. | 446-6609 | [2] | FLASHING AS | |
| 7. | 281-2901M | [17] | SCREW-BUTTON HEAD(M10X1.5X40-MM) | |
| 8. | 329-3356M | [8] | NUT(M12X1.75-THD) | |
| 9. | 7X-7729 | [31] | WASHER(11X25X3-MM THK) | |
| 10. | 8C-8585M | [31] | SCREW-BUTTON HEAD(M10X1.5X20-MM) | |
| 11. | 8T-4223 | [8] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 12. | 8T-4910M | [8] | BOLT(M12X1.75X60-MM) | |
| | M | | METRIC PART |
