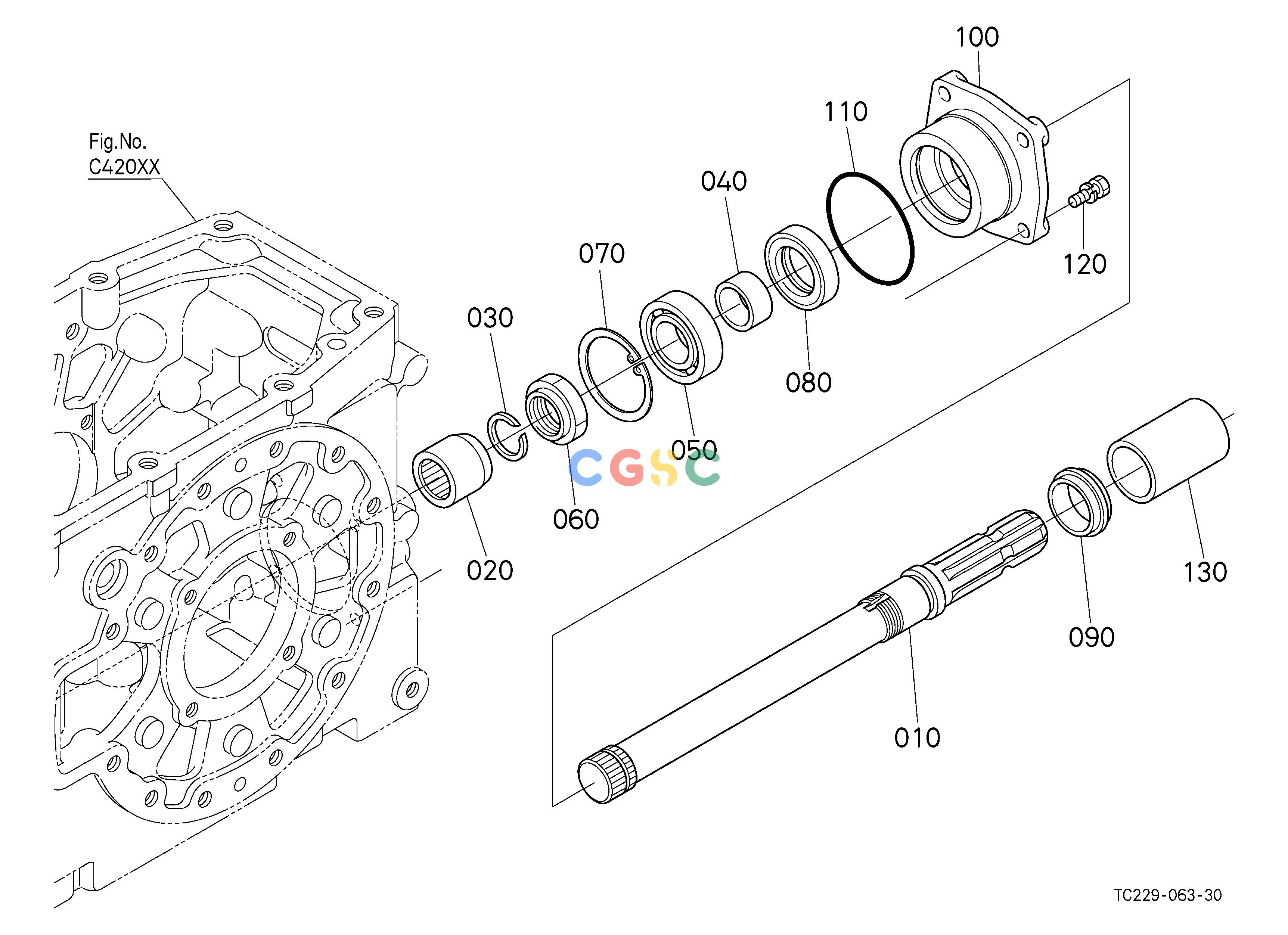

久保田零件查询D13502 PTO SHAFT CLUTCH/TRANSMISSIONEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
332 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TA02023703
|
[1] |
SHAFT,PTO
|
4.0370(lbs); 1.835
|
| 020. |
TD06023660
|
[1] |
COUPLING,PTO
|
0.3630(lbs); 0.165
|
| 030. |
3843025540
|
[1] |
SAFETY RING
|
0.0088(lbs); 0.004
|
| 040. |
3534025350
|
[1] |
COLLAR,OIL SEAL
|
0.0660(lbs); 0.030
|
| 050. |
TD06023730
|
[1] |
BEARING,BALL
|
0.4950(lbs); 0.225
|
| 060. |
3534025320
|
[1] |
NUT
|
0.1100(lbs); 0.050
|
| 070. |
0461100650
|
[1] |
CIR-CLIP,INTERNAL
|
0.0242(lbs); 0.011
|
| 080. |
3534025360
|
[1] |
SEAL,OIL
|
0.0528(lbs); 0.024
|
| 090. |
3824025370
|
[1] |
SLINGER
|
0.0110(lbs); 0.005
|
| 100. |
TD02023720
|
[1] |
CASE,BEARING
|
2.1340(lbs); 0.970
|
| 110. |
0481150800
|
[1] |
O RING
|
0.0066(lbs); 0.003
|
| 120. |
0112350820
|
[4] |
BOLT,SEMS
|
0.0242(lbs); 0.011
|
| 130. |
3122025820
|
[1] |
CAP
|
0.1210(lbs); 0.055
|
