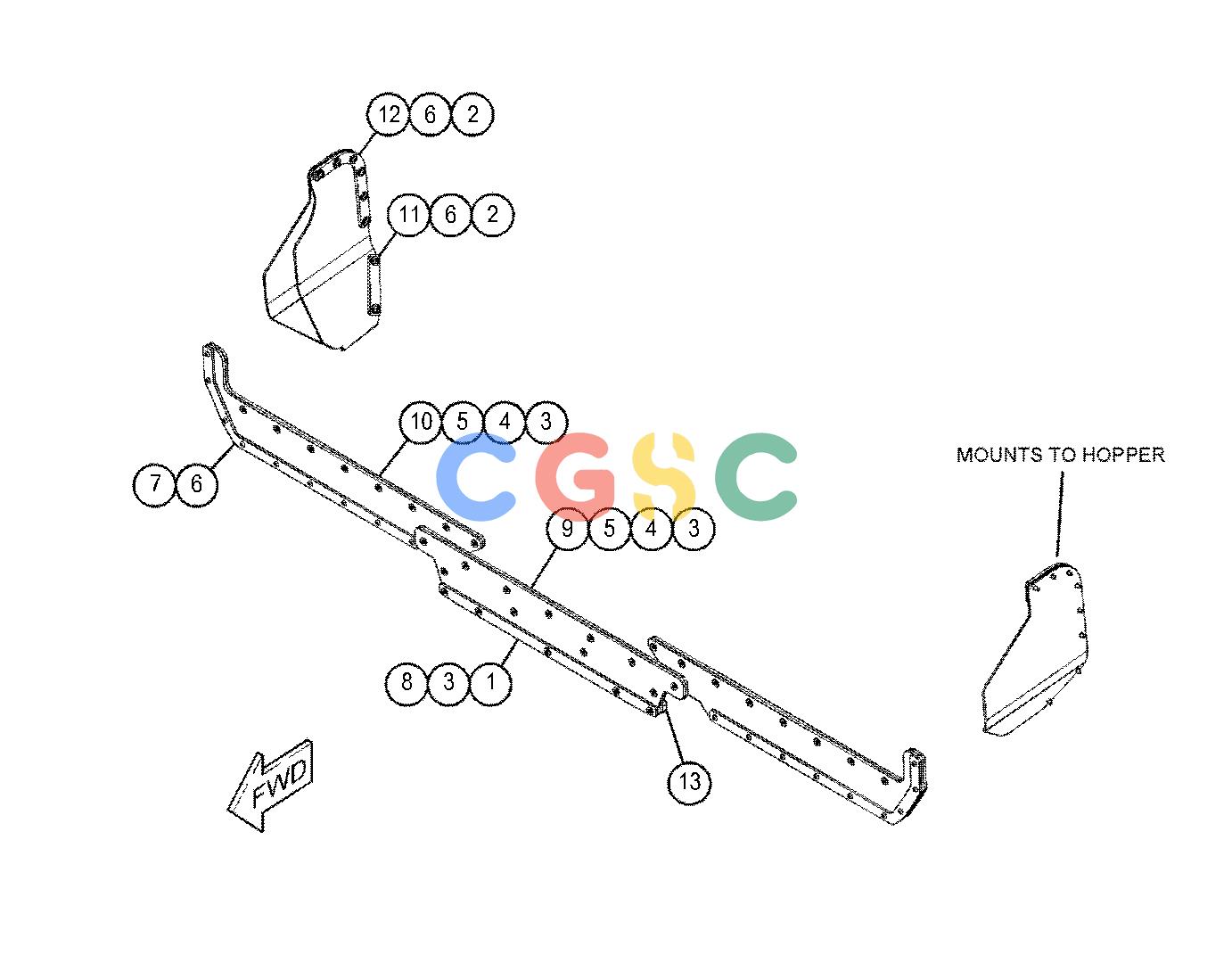

卡特零件查询（AP600F） 505-5878: FLASHING GP
广数供应链运营团队, 17 02月, 2025，浏览：
539 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8T-5005M | [5] | BOLT(M10X1.5X70-MM) | |
| 2. | 7X-0589 | [16] | WASHER-HARD(12X28.5X5-MM THK) | |
| 3. | 7X-7729 | [34] | WASHER(11X25X3-MM THK) | |
| 4. | 8C-8585M | [29] | SCREW-BUTTON HEAD(M10X1.5X20-MM) | |
| 5. | 302-3372M | [29] | NUT-WELD(M10X1.5-THD) | |
| 6. | 450-9474M | [34] | SCREW-BUTTON HEAD(M10X1.5X40-MM) | |
| 7. | 503-4801 | [2] | PLATE | |
| 8. | 503-4802 | [1] | PLATE | |
| 9. | 503-4805 | [1] | FLASHING AS | |
| 10. | 503-4807 | [2] | FLASHING AS | |
| 11. | 505-0049 | [2] | PLATE | |
| 12. | 505-0050 | [2] | PLATE | |
| 13. | 505-9975 | [1] | PLATE | |
| | M | | METRIC PART |
