卡特零件查询（AP600F） 396-4175: BOGIE GP
广数供应链运营团队, 17 02月, 2025，浏览：
353 次

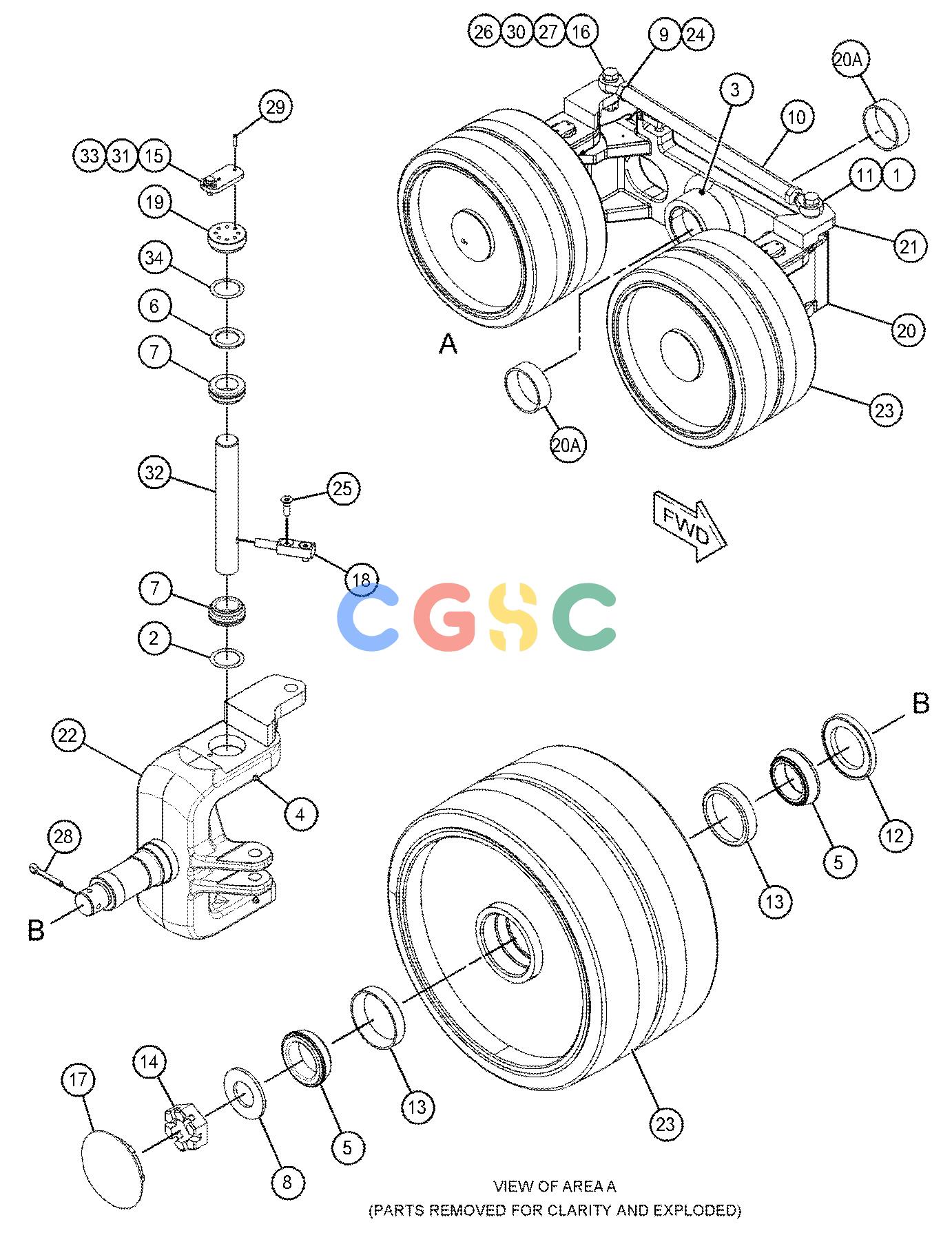

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1A-4168 | [1] | NUT(1-1/4-12-THD) | |
| 2. | 1K-7019B | [4] | SHIM(0.02-IN THK) | |
| 3. | 3B-8485 | [1] | ELBOW | |
| 4. | 3B-8489 | [4] | FITTING-GREASE(1/8-27 PTF) | |
| 5. | 4D-3882 | [4] | CONE-BEARING | |
| 6. | 6H-0463 | [2] | WASHER(1.813X2.625X0.135-IN) | |
| 7. | 6R-1554 | [4] | BEARING AS | |
| 8. | 8C-7225 | [2] | WASHER(51.7X100.5X6.3-MM THK) | |
| 9. | 8I-0795 | [1] | BEARING | |
| 10. | 8I-0873 | [1] | ROD | |
| 11. | 8T-4401 | [1] | BEARING | |
| 12. | 8T-7984 | [2] | SEAL | |
| 13. | 006-7231 | [4] | CUP-BEARING | |
| 14. | 006-8943 | [2] | NUT | |
| 15. | 087-0077 | [2] | PLATE-LOCK | |
| 16. | 104-7685 | [2] | BOLT AS-SPECIAL(1-14X5-IN) | |
| | | | (EACH INCLUDES) |
| | 2H-3746 | [1] | BOLT(1-14X5-IN) | |
| 17. | 233-9842 | [2] | CAP-HUB | |
| 18. | 261-0551 | [2] | PIN-RETAINING | |
| 19. | 312-7705 | [2] | ADJUSTER-BEARING | |
| 20. | 415-1786 | [1] | FRAME AS-BOGIE | |
| 20A. | 8C-3920 | [2] | BEARING | |
| 21. | 417-8963 | [1] | SPINDLE AS | |
| 22. | 417-8964 | [1] | SPINDLE AS | |
| 23. | 436-1410 | [2] | WHEEL AS | |
| 24. | 061-6915 | [1] | NUT(1-1/4-12-THD) | |
| 25. | 123-0354M | [4] | SCREW-FLAT HEAD(M12X1.75X35-MM) | |
| 26. | 1B-4443 | [2] | NUT-SLOTTED(1-14-THD) | |
| 27. | 3B-4619 | [2] | PIN-COTTER | |
| 28. | 3B-4647 | [2] | PIN-COTTER | |
| 29. | 5H-3182 | [4] | PIN-SPRING | |
| 30. | 7X-0529 | [4] | WASHER-HARD(28X49X6-MM THK) | |
| 31. | 7X-7729 | [2] | WASHER(11X25X3-MM THK) | |
| 32. | 8I-0913 | [2] | PIN | |
| 33. | 8T-4195M | [2] | BOLT(M10X1.5X30-MM) | |
| 34. | 1K-7019B | [10] | SHIM(0.02-IN THK) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
