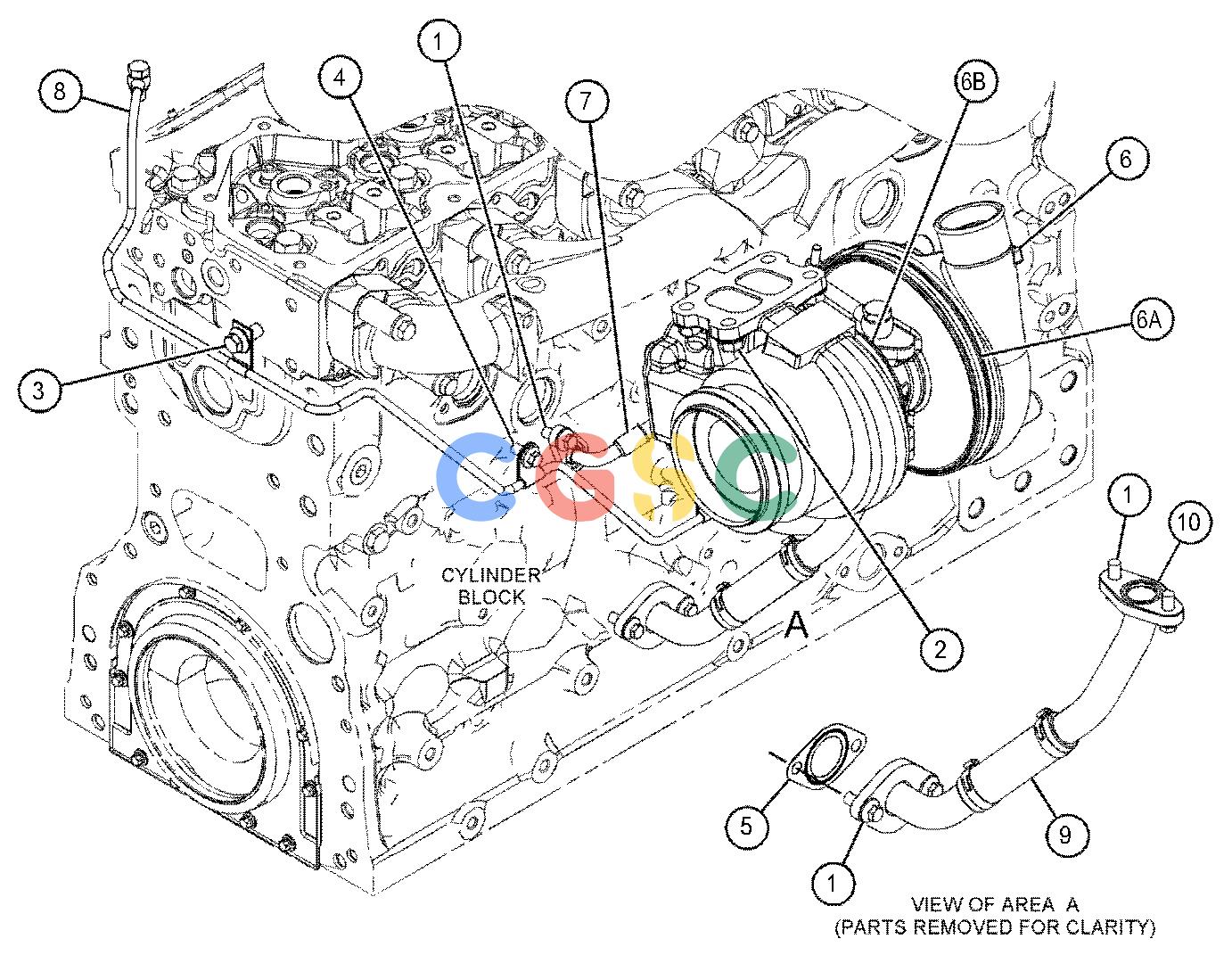

卡特零件查询（AP600F） 380-2039: TURBOCHARGER GP
广数供应链运营团队, 17 02月, 2025，浏览：
240 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6I-0217M | [5] | BOLT(M8X1.25X20-MM) | |
| 2. | 6I-0563M | [4] | NUT(M10X1.5-THD) | |
| 3. | 100-4830M | [1] | BOLT(M10X1.5X20-MM) | |
| 4. | 124-3815M | [2] | BOLT(M8X1.25X16-MM) | |
| 5. | 278-0017 | [1] | GASKET | |
| 6. | 315-9810 | [1] | TURBOCHARGER GP | |
| 6A. | 277-9602 | [1] | CLAMP | |
| 6B. | 277-9603 | [1] | CLAMP | |
| 7. | 368-8559Y | [1] | LINES GP-TURBOCHARGER OIL | |
| 8. | 377-2877Y | [1] | LINES GP-TURBOCHARGER AIR | |
| 9. | 420-2371 | [1] | LINE AS(TURBOCHARGER AIR) | |
| 10. | 437-4170 | [1] | GASKET | |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
