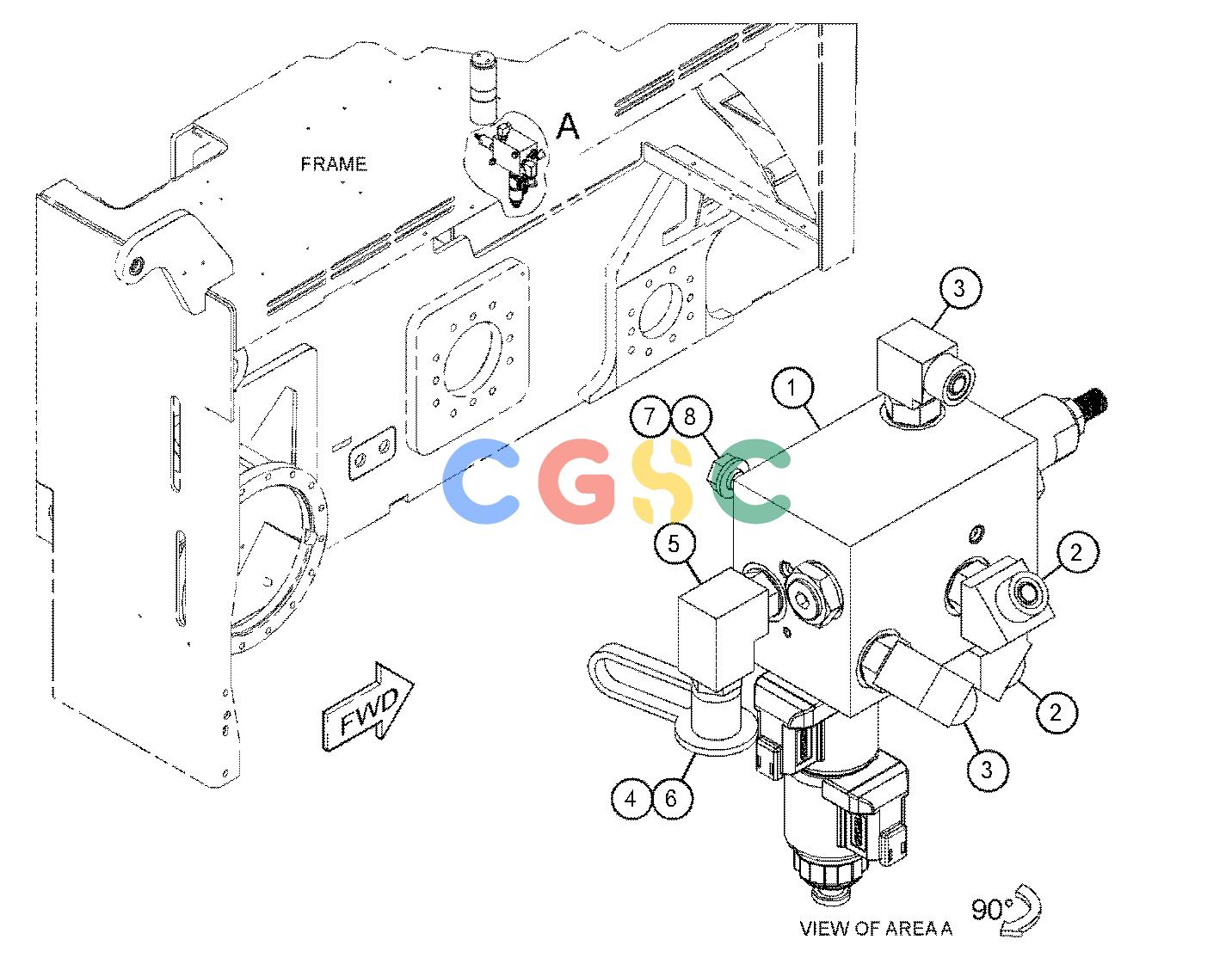

卡特零件查询（AP600F） 433-6608: VALVE & MTG GP-TRUCK HITCH
广数供应链运营团队, 17 02月, 2025，浏览：
270 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 396-7154Y | [1] | VALVE GP-CONTROL(TRUCK HITCH) | |
| 2. | 148-8353 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9001 | [1] | ELBOW | |
| 3. | 148-8378 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8724 | [1] | ELBOW | |
| 4. | 164-5567 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 5. | 241-6215 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8076 | [1] | ELBOW | |
| 6. | 6V-0852 | [1] | CAP-DUST | |
| 7. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 8. | 8T-4908M | [2] | BOLT(M8X1.25X25-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
