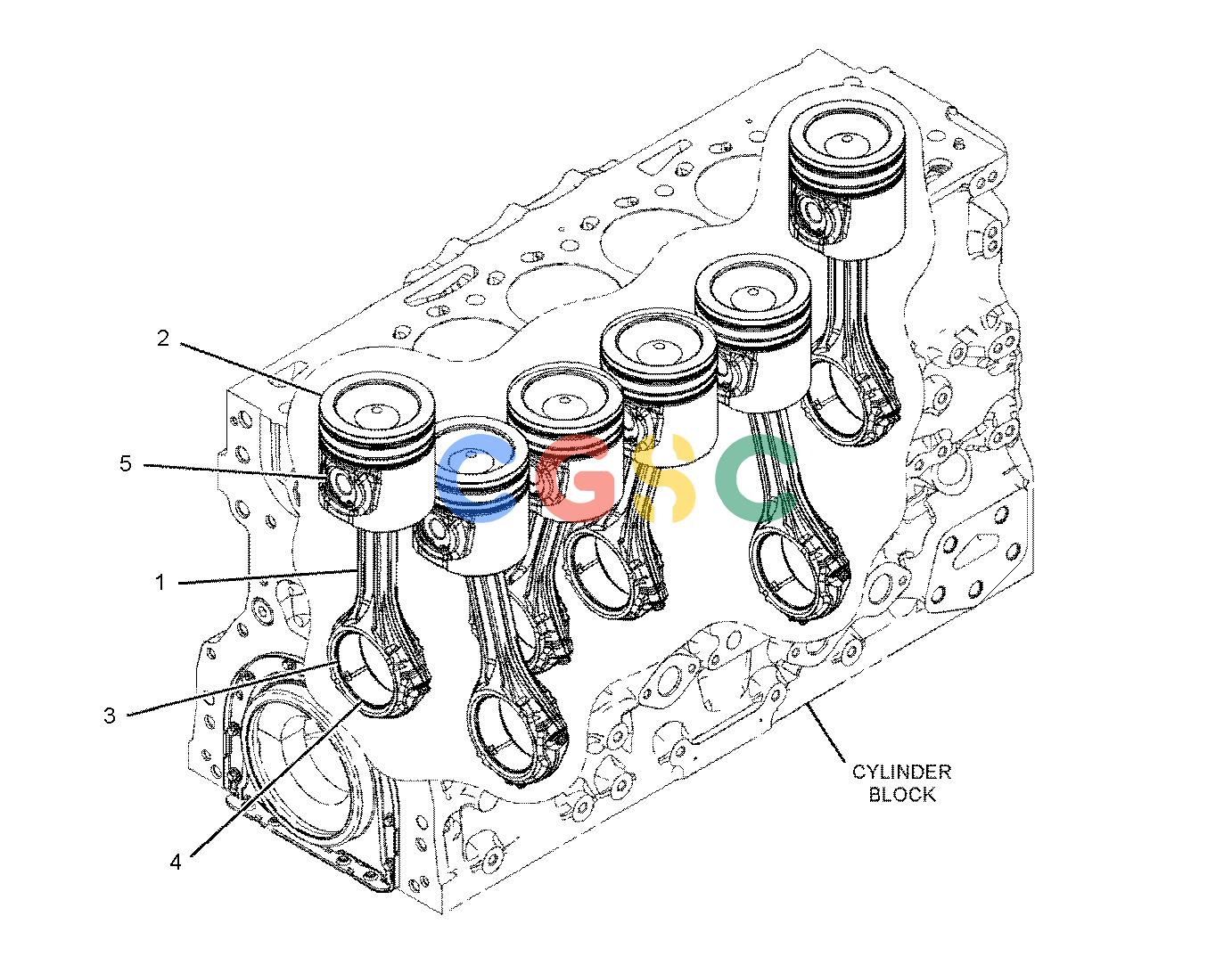

卡特零件查询（AP600F） 369-7304: PISTON & ROD GP
广数供应链运营团队, 17 02月, 2025，浏览：
434 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 331-0290Y | [6] | CONNECTING ROD GP | |
| 2. | LP | [6] | PISTON GP |
| 3. | 317-5482J | [6] | BEARING | |
| 4. | J | [6] | BEARING |
| 5. | 124-3536P | [12] | RING-RETAINING | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 436-7781BJ | | KIT-BEARING(CONNECTING ROD) | |
| | 458-7918BJ | | KIT-BEARING(0.25-MM US) | |
| | 458-7939BJ | | KIT-BEARING(0.50-MM US) | |
| | 458-7940BJ | | KIT-BEARING(0.75-MM US) | |
| | 276-7476BL | [1] | KIT-PISTON RING(STANDARD) | |
| | | | (INCLUDES ONE SET RINGS) |
| | 466-4849BL | [1] | KIT-PISTON RING(1-MM OS) | |
| | | | (INCLUDES ONE SET RINGS) |
| | 443-9475BP | [1] | KIT-PISTON(STANDARD) | |
| | | | (INCLUDES PISTON AND SET OF RINGS) |
| | | | |
| | 443-9898BP | [1] | KIT-PISTON(0.5-MM OS) | |
| | | | (INCLUDES PISTON AND SET OF RINGS) |
| | | | |
| | 443-9919BP | | KIT-PISTON(1-MM OS) | |
| | | | (INCLUDES PISTON AND SET OF RINGS) |
| | | | |
| | B | | USE AS REQUIRED |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | L | | KIT MARKED L SERVICES PART(S) MARKED L |
| | P | | KIT MARKED P SERVICES PART(S) MARKED P |
| | Y | | SEPARATE ILLUSTRATION |
