卡特零件查询（AP600F） 504-2903: PISTON GP
广数供应链运营团队, 17 02月, 2025，浏览：
267 次

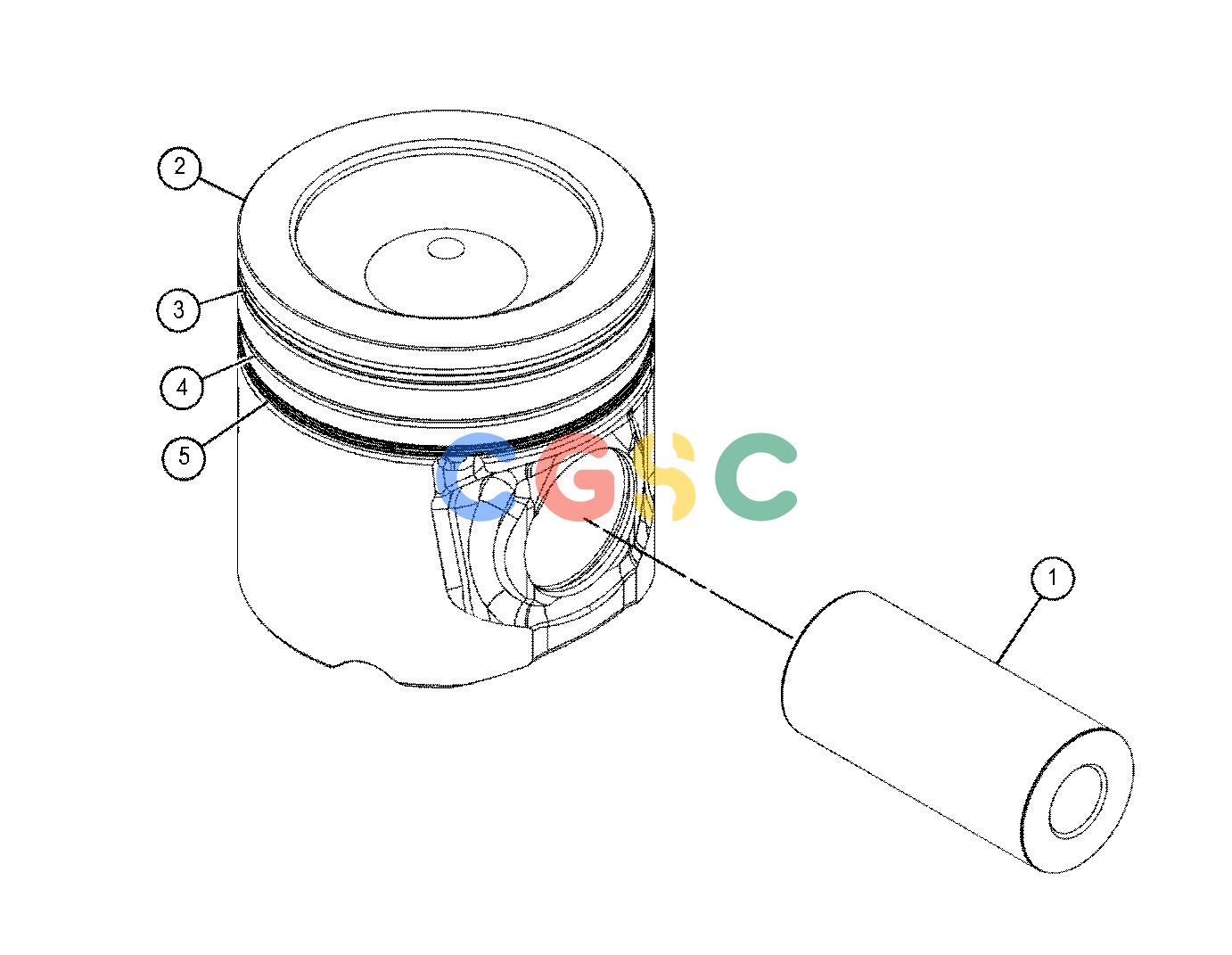

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | PQT | [1] | PIN |
| 2. | P | [1] | PISTON |
| 3. | JP | [1] | RING-PISTON |
| 4. | JP | [1] | RING-PISTON |
| 5. | JP | [1] | RING-OIL |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 276-7476J | [1] | KIT-PISTON RING(STANDARD) | |
| | | | (INCLUDES RINGS) |
| | 380-2065AB | | KIT-PISTON RING(0.5-MM OS) | |
| | | | (INCLUDES RINGS) |
| | 466-4849AB | | KIT-PISTON RING(1-MM OS) | |
| | | | (INCLUDES RINGS) |
| | 443-9475P | [1] | KIT-PISTON(STANDARD) | |
| | | | (INCLUDES PIN, PISTON RINGS, RETAINING RINGS & PISTON) |
| | 443-9898ABQ | | KIT-PISTON(0.5-MM OS) | |
| | | | (INCLUDES PIN, PISTON RINGS, RETAINING RINGS & PISTON) |
| | 443-9919ABT | | KIT-PISTON(1-MM OS) | |
| | | | (INCLUDES PIN, PISTON RINGS, RETAINING RINGS & PISTON) |
| | A | | NOT PART OF THIS GROUP |
| | B | | USE AS REQUIRED |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | P | | KIT MARKED P SERVICES PART(S) MARKED P |
| | Q | | KIT MARKED Q SERVICES PART(S) MARKED Q |
| | T | | KIT MARKED T SERVICES PART(S) MARKED T |
