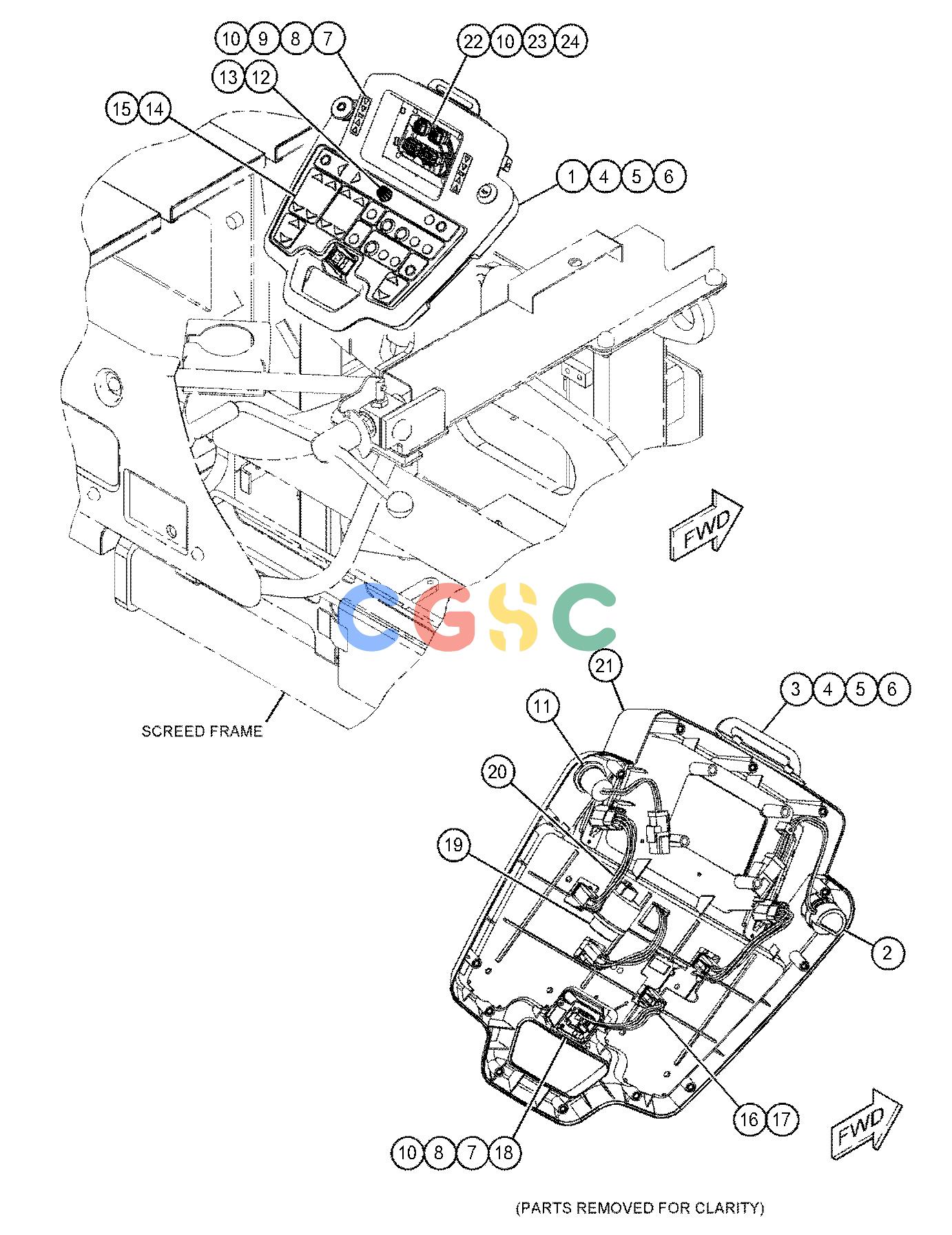

卡特零件查询（AP600F） 463-3978: CONTROL GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
745 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 434-3079 | [1] | HOUSING-CONTROL | |
| 2. | 367-9470 | [1] | SWITCH AS-PUSH BUTTON(EMERGENCY STOP) | |
| | 102-8804 | [1] | KIT-RECEPTACLE(4-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 9X-3401 | [4] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| 3. | 434-3086 | [1] | PLATE | |
| 4. | 9X-8267 | [15] | WASHER(6.6X12X2-MM THK) | |
| 5. | 6V-5683M | [15] | BOLT(M6X1X16-MM) | |
| 6. | 3B-4504 | [15] | LOCKWASHER | |
| 7. | 9X-8902M | [6] | BOLT-SOCKET HEAD(M3X0.5X8-MM) | |
| 8. | 9B-1117 | [6] | LOCKWASHER | |
| 9. | 399-9072 | [2] | GAUGE GP-INDICATOR(GRADE, SLOPE) | |
| 10. | 096-5962 | [14] | WASHER-HARD(3.4X7X0.8-MM THK) | |
| 11. | 395-0256 | [1] | SWITCH AS-HORN | |
| | 9X-3401 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | | | -OR- |
| | 126-1767 | [2] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 12. | 399-9069 | [1] | SWITCH AS-ROTARY(ENCODER ADAPTER) | |
| | 155-2271 | [1] | KIT-CONNECTING PLUG(4-PIN) | |
| | | | (INCLUDES PLUG AS,WEDGE & INTERFACE SEAL) |
| 13. | 434-6547 | [1] | KIT-KNOB | |
| | | | (INCLUDES KNOB, CAP & SCREW) |
| 14. | 473-5464 | [1] | MODULE GP-KEYPAD(SCREED CONTROL) | |
| 15. | 208-8469M | [7] | LOCKNUT(M6X1-THD) | |
| 16. | 399-9070 | [1] | SWITCH AS-ROCKER(ANALOG) | |
| 17. | 342-9022M | [4] | SCREW-PAN HEAD(M2.5X0.45X8-MM) | |
| 18. | 399-9074 | [1] | GUARD | |
| 19. | 198-6568 | [1] | HORN(6 TO 28-VDC) | |
| 20. | 425-5922 | [2] | HARNESS AS-WIRING(LIGHT BAR) | |
| | | | (EACH INCLUDES) |
| | 155-2274 | [2] | KIT-CONNECTING PLUG(6-PIN) | |
| | | | (EACH INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| 21. | 473-5462 | [1] | HOUSING-CONTROL | |
| 22. | 399-9073Y | [1] | HARNESS AS-SCREED | |
| 23. | 203-0099M | [4] | BOLT-SOCKET HEAD(M3X0.5-THD) | |
| 24. | 3C-6969M | [4] | NUT(M3X0.5-THD) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
