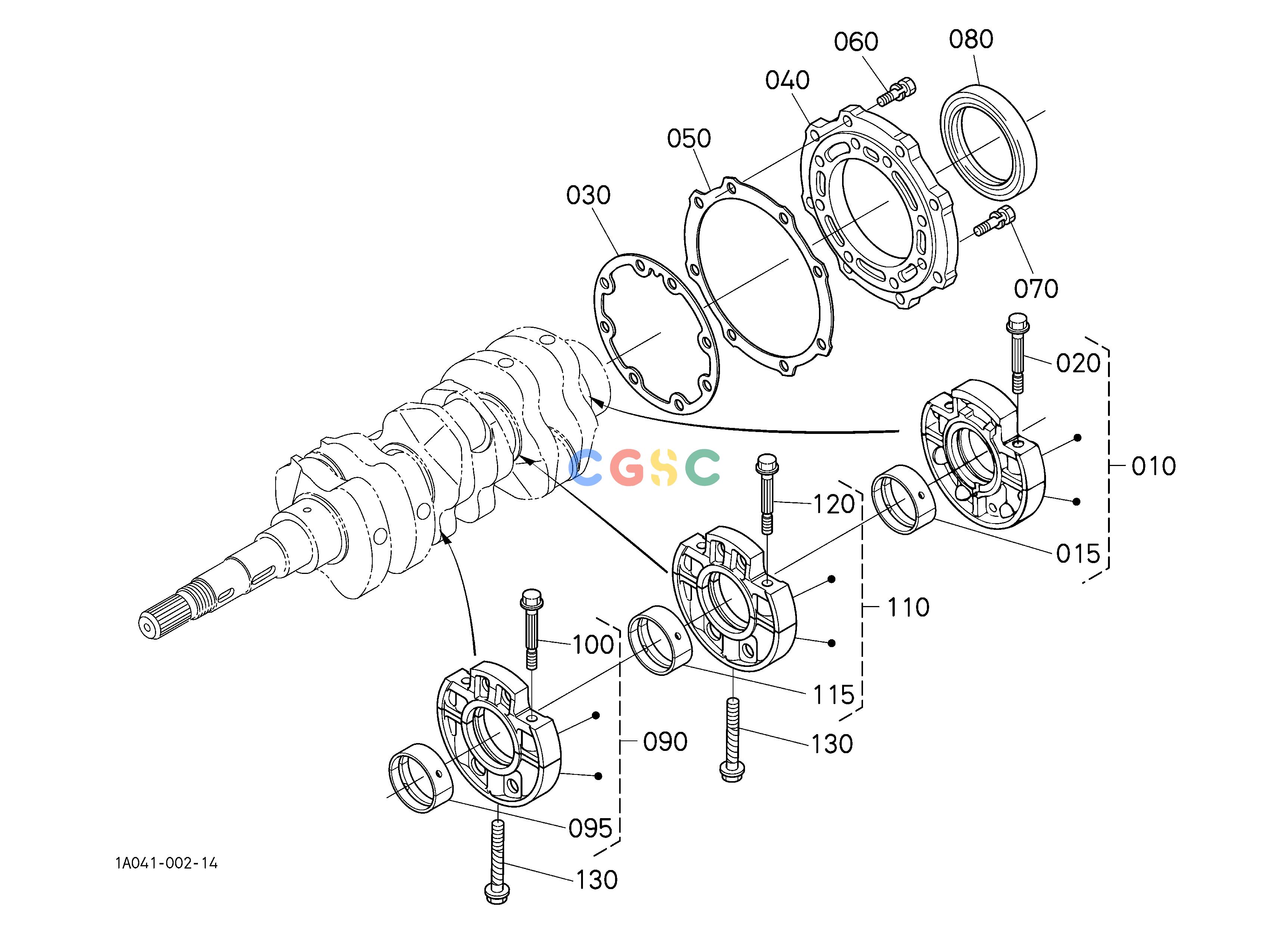

久保田零件查询010002 MAIN BEARING CASE [NEW TYPE] ENGINEEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
587 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1A04107092
|
[1] |
ASSY BRG.CASE WHEEL
|
2.9480(lbs); 1.340
|
| 010. |
1A04107093
|
[1] |
ASSY BRG.CASE WHEEL
|
2.9480(lbs); 1.340
|
| 015. |
1A09123480
|
[1] |
METAL CRANKSHAFT
|
0.1100(lbs); 0.050
|
| 020. |
1A09104540
|
[2] |
BOLT BEARING CASE
|
0.0770(lbs); 0.035
|
| 030. |
1A09104360
|
[1] |
GASKET BEARING CASE
|
0.0110(lbs); 0.005
|
| 030. |
1A09104362
|
[1] |
GASKET BEARING CASE
|
0.0440(lbs); 0.020
|
| 040. |
1G85104810
|
[1] |
COVER BEARING CASE
|
1.0890(lbs); 0.495
|
| 040. |
1G85104812
|
[1] |
COVER BEARING CASE
|
1.0890(lbs); 0.495
|
| 040. |
1G85104813
|
[1] |
COVER BEARING CASE
|
1.0890(lbs); 0.495
|
| 050. |
1A09104820
|
[1] |
GASKET CASE COVER
|
0.0198(lbs); 0.009
|
| 060. |
0112350825
|
[8] |
BOLT
|
0.0286(lbs); 0.013
|
| 070. |
0112350828
|
[8] |
BOLT
|
0.0308(lbs); 0.014
|
| 080. |
1920204460
|
[1] |
SEAL OIL
|
0.1210(lbs); 0.055
|
| 090. |
1A09107042
|
[1] |
ASSY BRG.CASE MAIN
|
2.9480(lbs); 1.340
|
| 090. |
1A09107043
|
[1] |
ASSY BRG.CASE MAIN
|
2.9480(lbs); 1.340
|
| 095. |
1A09123480
|
[1] |
METAL CRANKSHAFT
|
0.1100(lbs); 0.050
|
| 100. |
1A09104540
|
[2] |
BOLT BEARING CASE
|
0.0770(lbs); 0.035
|
| 110. |
1A09107052
|
[1] |
ASSY BRG.CASE MAIN
|
2.9480(lbs); 1.340
|
| 110. |
1A09107053
|
[1] |
ASSY BRG.CASE MAIN
|
2.9480(lbs); 1.340
|
| 115. |
1A09123480
|
[1] |
METAL CRANKSHAFT
|
0.1100(lbs); 0.050
|
| 120. |
1A09104540
|
[2] |
BOLT BEARING CASE
|
0.0770(lbs); 0.035
|
| 130. |
1560104560
|
[2] |
BOLT BEARING CASE
|
0.1320(lbs); 0.060
|
