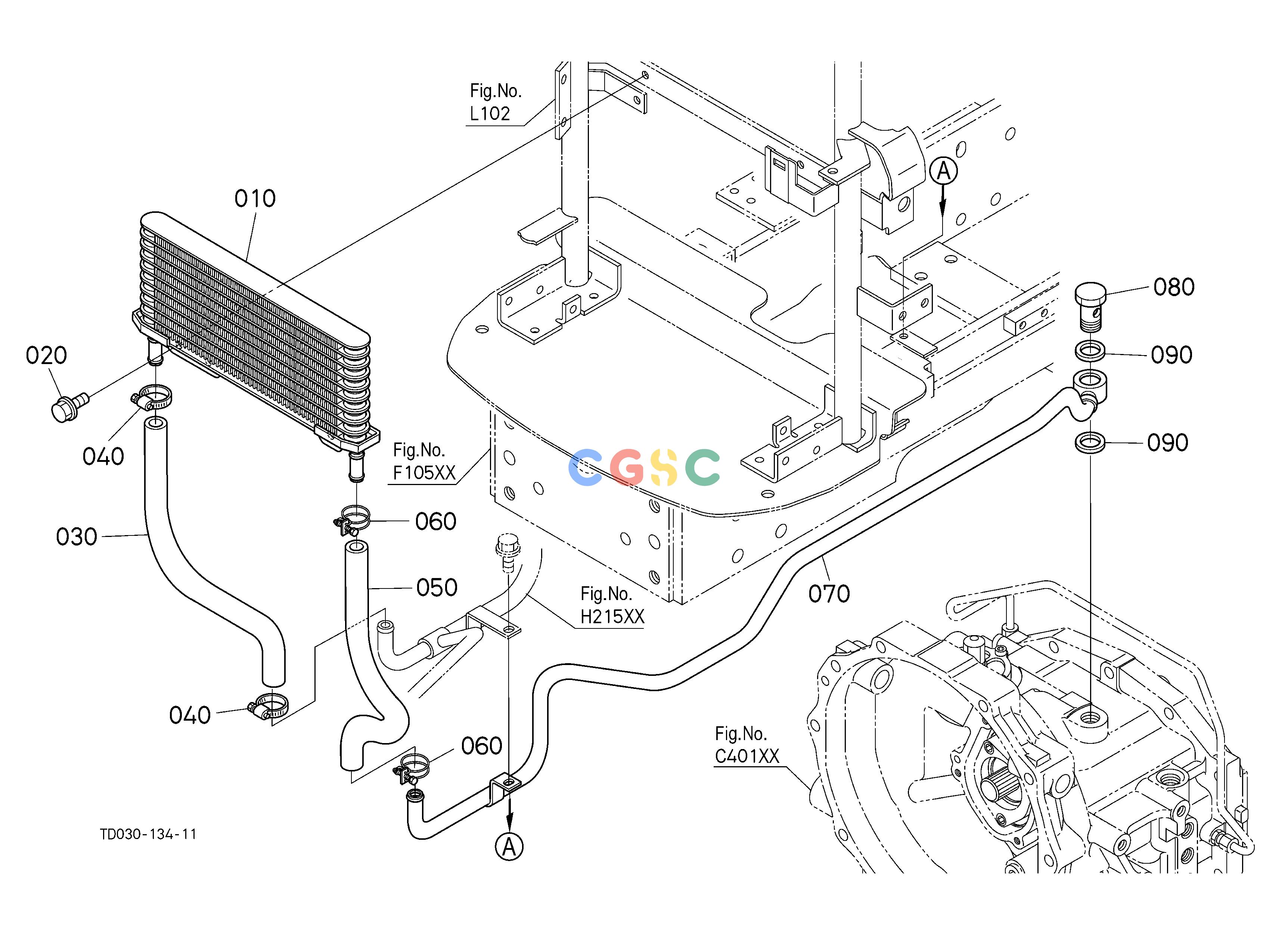

久保田零件查询H24504 OIL COOLER [HST TYPE] HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
400 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD05055370
|
[1] |
COOLER OIL
|
2.1340(lbs); 0.970
|
| 020. |
0175450816
|
[2] |
BOLT FLANGE
|
0.0242(lbs); 0.011
|
| 030. |
TD06056172
|
[1] |
HOSE O/C OUTLET
|
0.2376(lbs); 0.108
|
| 040. |
6620436280
|
[2] |
BAND PIPE
|
0.0440(lbs); 0.020
|
| 050. |
TD06056152
|
[1] |
HOSE O/C INLET
|
0.2310(lbs); 0.105
|
| 060. |
0931889024
|
[2] |
CLAMP HOSE
|
0.0440(lbs); 0.020
|
| 070. |
TD03056132
|
[1] |
PIPE HST RETURN
|
1.6610(lbs); 0.755
|
| 080. |
3217038170
|
[1] |
BOLT HYD.PIPE JOINT
|
0.1980(lbs); 0.090
|
| 080. |
TD06056210
|
[1] |
BOLT JOINT
|
0.1980(lbs); 0.090
|
| 090. |
0471400400
|
[2] |
GASKET
|
0.0066(lbs); 0.003
|
