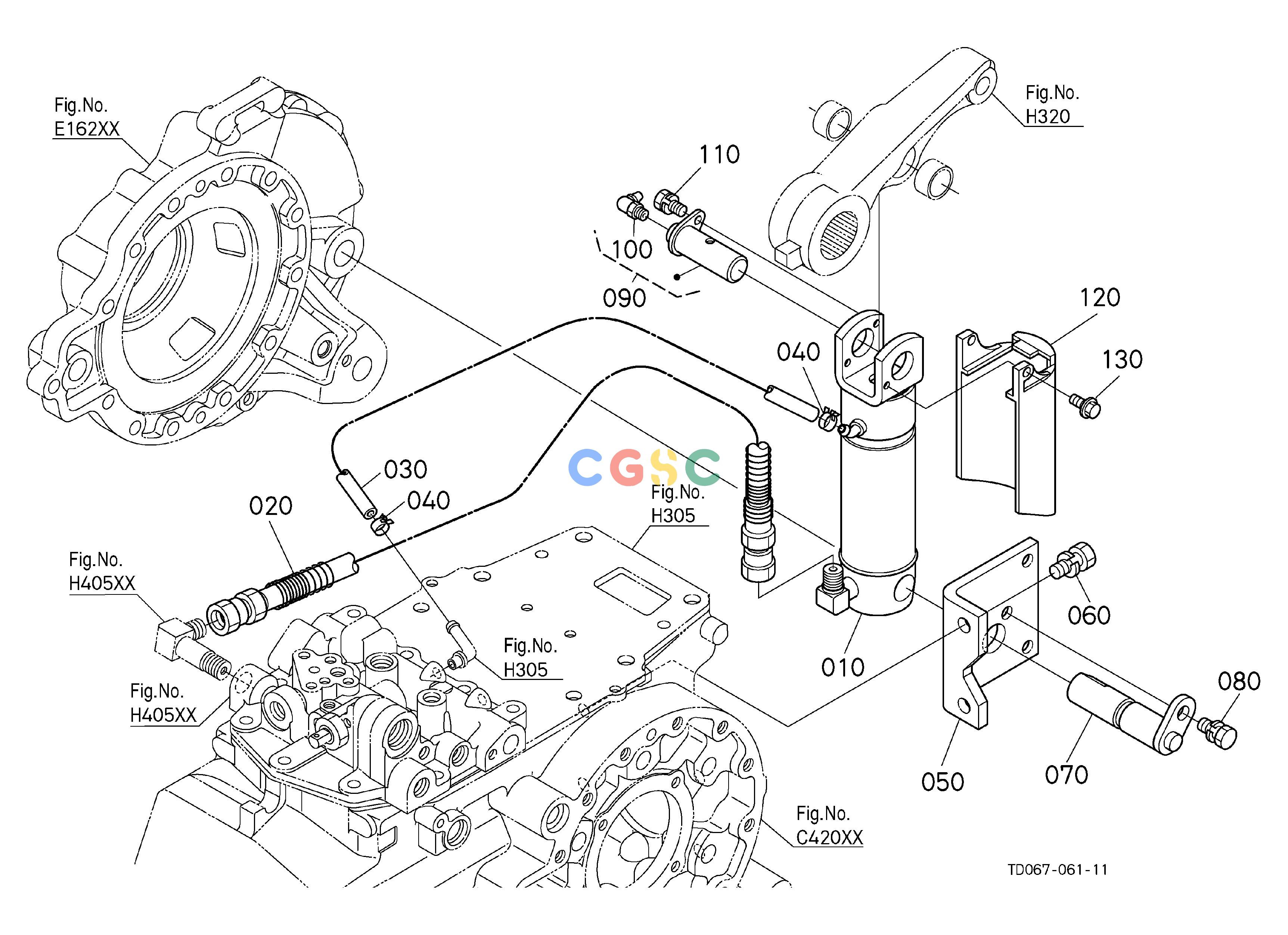

久保田零件查询H43502 3P CYLINDER RH HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
113 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
T106034700
|
[1] |
ASSY CYLINDER
|
8.8000(lbs); 4.000
|
| 010. |
T106034703
|
[1] |
ASSY CYLINDER
|
8.8000(lbs); 4.000
|
| 020. |
TD06034920
|
[1] |
HOSE HYD.CYLINDER
|
1.1990(lbs); 0.545
|
| 030. |
0966180360
|
[1] |
TUBE FUEL
|
0.0990(lbs); 0.045
|
| 040. |
0931888115
|
[2] |
CLAMP HOSE
|
0.0044(lbs); 0.002
|
| 050. |
T106034870
|
[1] |
STAY CYLINDER RH
|
2.2220(lbs); 1.010
|
| 060. |
0113351230
|
[1] |
BOLT
|
0.0880(lbs); 0.040
|
| 070. |
T106034890
|
[1] |
PIN CYLINDER
|
0.9790(lbs); 0.445
|
| 080. |
0113351016
|
[1] |
BOLT
|
0.0374(lbs); 0.017
|
| 090. |
T106034850
|
[1] |
ASSY PIN CYLINDER
|
0.5632(lbs); 0.256
|
| 100. |
0661625010
|
[1] |
NIPPLE GREASE
|
0.0176(lbs); 0.008
|
| 110. |
0102350612
|
[1] |
BOLT
|
0.0110(lbs); 0.005
|
| 120. |
T106034812
|
[1] |
COVER CYLINDER
|
0.1210(lbs); 0.055
|
| 130. |
0175450610
|
[2] |
BOLT FLANGE
|
0.0132(lbs); 0.006
|
