卡特零件查询（AP600F） 468-5854: EXTENSION GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
192 次

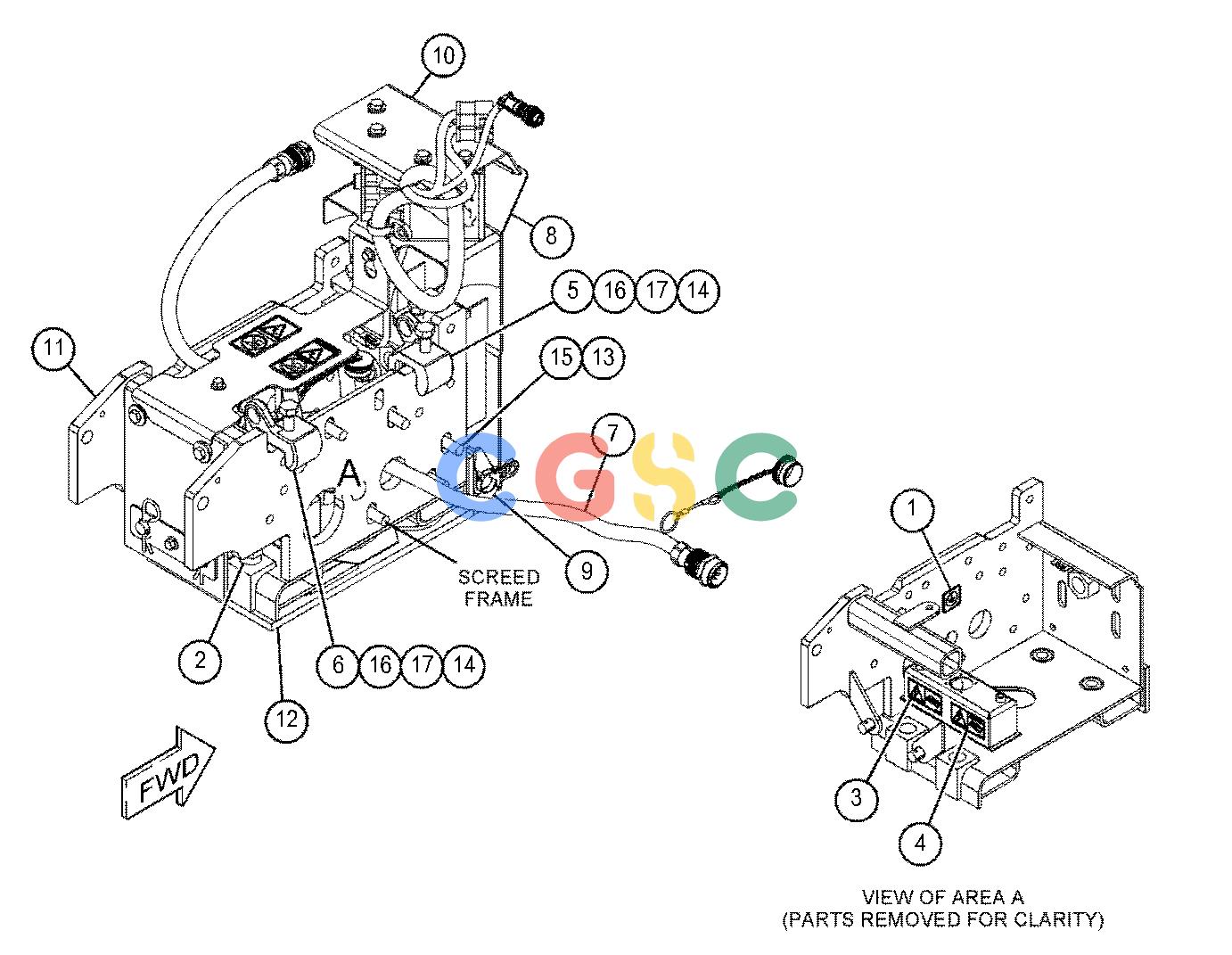

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 228-4798 | [1] | FILM-IDENTIFICATION(GROUND) | |
| 2. | 422-4637M | [2] | NUT(M30X2-THD) | |
| 3. | 424-6098 | [1] | FILM-WARNING(ELECTROCUTION HAZARD, READ OMM) | |
| 4. | 424-6102 | [1] | FILM-WARNING(ELECTROCUTION HAZARD, READ OMM) | |
| 5. | 451-2603 | [1] | HOOK | |
| 6. | 451-2604 | [1] | HOOK | |
| 7. | 464-2740Y | [1] | WIRING GP-SCREED | |
| 8. | 464-2741Y | [1] | DEFLECTOR GP | |
| 9. | 464-2743 | [1] | BAR GP-TAMPER | |
| | 8T-4192M | [2] | BOLT(M12X1.75X25-MM) | |
| | 8T-7971 | [2] | WASHER-HARD(13.5X25.5X5-MM THK) | |
| | | [1] | BAR-NOSE |
| 10. | 468-5855Y | [1] | COVER GP-ACCESS | |
| 11. | 468-5857 | [1] | FRAME AS | |
| 12. | 471-3171Y | [1] | PLATE GP-SCREED | |
| 13. | 198-4780 | [5] | WASHER-HARD(17.5X32X8-MM THK) | |
| 14. | 8T-4140M | [2] | BOLT(M16X2X60-MM) | |
| 15. | 8T-4193M | [5] | BOLT(M16X2X50-MM) | |
| 16. | 8T-4779M | [4] | BOLT(M16X2X35-MM) | |
| 17. | 9X-8257 | [4] | WASHER(17.5X30X3.5-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
