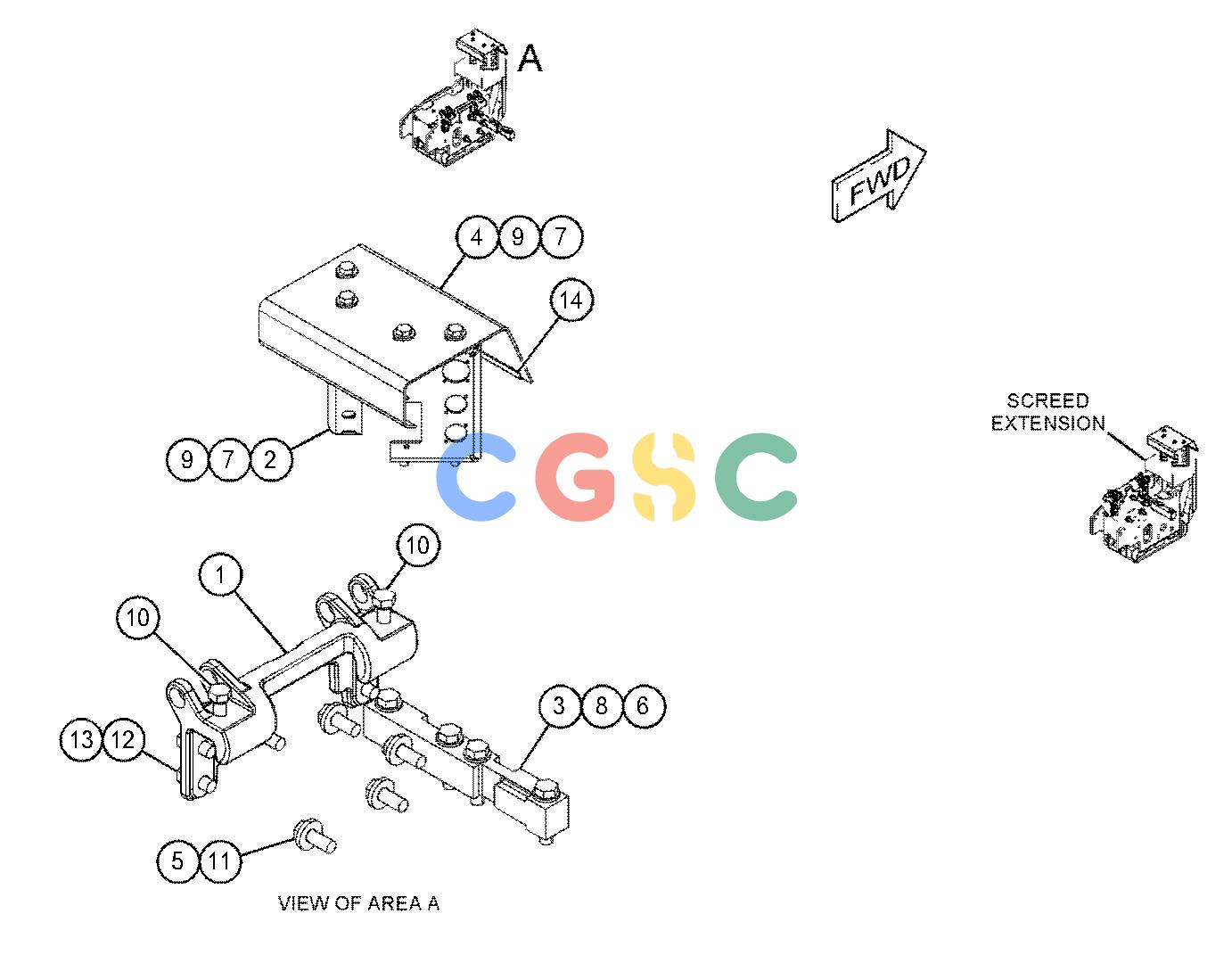

卡特零件查询（AP655F） 464-2745: MOUNTING GP-SCREED EXTENSION
广数供应链运营团队, 17 02月, 2025，浏览：
320 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 393-0646 | [2] | HOOK | |
| 2. | | [4] | BRACKET AS |
| | | | (EACH INCLUDES) |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| 3. | 464-6632 | [2] | BAR-CONNECTOR | |
| 4. | | [2] | COVER |
| 5. | 3E-9411 | [10] | WASHER-HARD(17.5X38X6-MM THK) | |
| 6. | 7X-2554M | [8] | BOLT(M16X2X70-MM) | |
| 7. | 7X-7729 | [16] | WASHER(11X25X3-MM THK) | |
| 8. | 8T-4122 | [8] | WASHER-HARD(17X32X3.5-MM THK) | |
| 9. | 8T-4137M | [16] | BOLT(M10X1.5X20-MM) | |
| 10. | 8T-4140M | [4] | BOLT(M16X2X60-MM) | |
| 11. | 8T-4193M | [10] | BOLT(M16X2X50-MM) | |
| 12. | 8T-4779M | [8] | BOLT(M16X2X35-MM) | |
| 13. | 9X-8257 | [8] | WASHER(17.5X30X3.5-MM THK) | |
| 14. | 7X-7877E | | STRIP-EDGE(21-CM EACH) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
