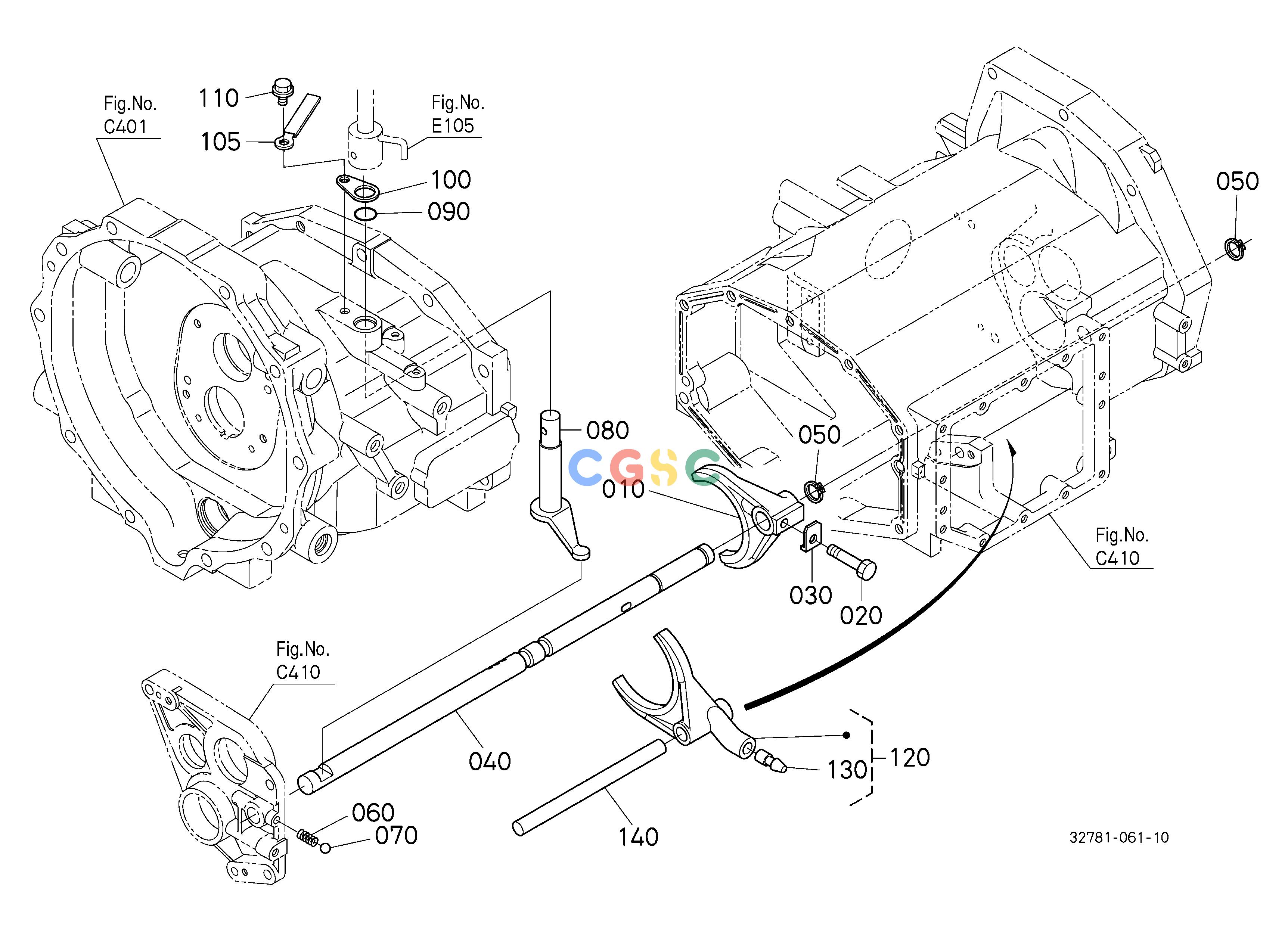

久保田零件查询D20500 SHUTTLE SHIFT FORK SPEED CHANGE SHIFT FORK /SHIFT LEVEREPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
263 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
T106324300
|
[1] |
FORK,SHIFT(GST)
|
0.7810(lbs); 0.355
|
| 020. |
3407664340
|
[1] |
BOLT,REAMER
|
0.0330(lbs); 0.015
|
| 030. |
3242067970
|
[1] |
WASHER
|
0.0044(lbs); 0.002
|
| 040. |
TD06064310
|
[1] |
ROD,FORK
|
2.0350(lbs); 0.925
|
| 050. |
0461200180
|
[2] |
CIR-CLIP, EXTERNAL
|
0.0022(lbs); 0.001
|
| 060. |
3253023730
|
[1] |
SPRING
|
0.0022(lbs); 0.001
|
| 070. |
0771501605
|
[1] |
BALL
|
0.0066(lbs); 0.003
|
| 080. |
T007024320
|
[1] |
ARM,SHUTTLE SHIFT
|
0.7150(lbs); 0.325
|
| 090. |
0481600200
|
[1] |
O RING
|
0.0066(lbs); 0.003
|
| 100. |
3407024350
|
[1] |
STOPPER
|
0.0440(lbs); 0.020
|
| 105. |
1382467590
|
[1] |
CLAMP,CORD (8.5-73)
|
0.0044(lbs); 0.002
|
| 110. |
0175450812
|
[1] |
BOLT,FLANGE
|
0.0220(lbs); 0.010
|
| 120. |
T115324334
|
[1] |
FORK,SHIFT,ASSY
|
0.5170(lbs); 0.235
|
| 130. |
T106364170
|
[1] |
PIN,SHIFT
|
0.0330(lbs); 0.015
|
| 140. |
T115324370
|
[1] |
ROD,FORK
|
0.3894(lbs); 0.177
|
